SDO HMI 2011-03-01 17:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.83 | 80.07 | 15.44 | 41.75 | -23.25 | 180.00 | -8.57 | 153.96 | 0.3111 | 27.8 | -620.3 | |
|
previous
or next observation for the same group /

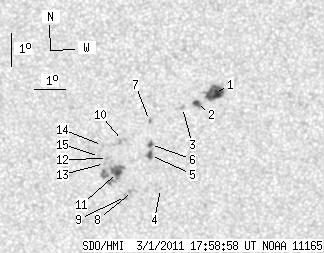

back to the solar disc SDO HMI 2011-03-01 17:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.02 | 21.64 | 9.28 | 11.14 | -21.79 | 182.06 | -6.52 | 157.33 | 0.2748 | 1046.7 | 394.0 | |
| 3.71 | 4.74 | 1.91 | 2.45 | -22.09 | 181.46 | -7.11 | 155.99 | 0.2833 | 956.0 | 786.1 | |
| 0.00 | 1.98 | 0.00 | 1.03 | -22.20 | 181.00 | -7.57 | 154.83 | 0.2882 | 936.0 | 737.1 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -24.70 | 180.13 | -8.44 | 156.14 | 0.3313 | -840.0 | -613.8 | |
| 3.19 | 7.93 | 1.67 | 4.14 | -23.67 | 179.87 | -8.70 | 154.03 | 0.3179 | -996.7 | -877.5 | |
| 1.72 | -5.00 | 0.90 | -5.00 | -23.33 | 179.90 | -8.68 | 153.57 | 0.3128 | -1055.0 | 999999 | |
| 0.00 | 1.38 | 0.00 | 0.72 | -22.59 | 179.91 | -8.66 | 152.43 | 0.3019 | -850.0 | -705.0 | |
| 0.00 | 2.84 | 0.00 | 1.50 | -24.77 | 179.20 | -9.38 | 154.00 | 0.3389 | -703.0 | -773.8 | |
| 0.00 | 2.76 | 0.00 | 1.45 | -24.92 | 178.96 | -9.62 | 153.64 | 0.3428 | -817.0 | -677.2 | |
| 0.00 | 3.53 | 0.00 | 1.85 | -23.19 | 178.99 | -9.59 | 151.05 | 0.3177 | -716.0 | -804.2 | |
| 3.19 | 26.90 | 1.68 | 14.13 | -24.17 | 178.75 | -9.83 | 152.05 | 0.3336 | -1092.3 | -840.9 | |
| 0.00 | 1.81 | 0.00 | 0.95 | -23.73 | 178.45 | -10.12 | 150.65 | 0.3297 | -997.0 | -754.9 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -23.88 | 178.34 | -10.23 | 150.64 | 0.3327 | -930.0 | -725.9 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -23.33 | 178.32 | -10.25 | 149.67 | 0.3251 | -744.0 | -594.0 | |
| 0.00 | 1.47 | 0.00 | 0.77 | -23.66 | 178.20 | -10.38 | 149.94 | 0.3308 | -722.0 | -620.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
