SDO HMI 2011-03-01 18:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.36 | 67.32 | 17.26 | 35.01 | -23.10 | 180.17 | -7.85 | 155.67 | 0.3038 | 51.9 | -547.7 | |
|
previous
or next observation for the same group /

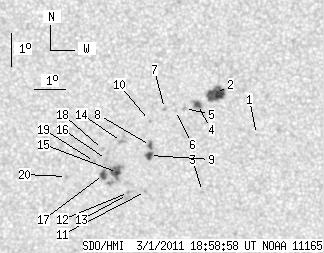

back to the solar disc SDO HMI 2011-03-01 18:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.49 | -23.04 | 183.36 | -4.67 | 164.67 | 0.2844 | 715.0 | 570.9 | |
| 18.02 | 18.62 | 9.27 | 9.58 | -21.77 | 182.08 | -5.94 | 159.11 | 0.2708 | 1040.1 | 725.7 | |
| 0.00 | 0.69 | 0.00 | 0.36 | -24.79 | 181.52 | -6.50 | 161.23 | 0.3210 | 634.0 | 501.8 | |
| 4.05 | 4.74 | 2.09 | 2.44 | -22.10 | 181.49 | -6.53 | 157.74 | 0.2795 | 966.6 | 788.1 | |
| 0.00 | 1.47 | 0.00 | 0.76 | -22.21 | 181.07 | -6.96 | 156.63 | 0.2841 | 1006.0 | 737.8 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -22.27 | 180.77 | -7.25 | 155.86 | 0.2869 | 715.0 | 428.5 | |
| 0.00 | 1.47 | 0.00 | 0.76 | -22.20 | 180.42 | -7.60 | 154.74 | 0.2884 | 431.0 | 336.1 | |
| 1.98 | 7.76 | 1.03 | 4.04 | -23.34 | 179.90 | -8.12 | 155.04 | 0.3089 | -1060.6 | -916.2 | |
| 3.53 | -8.00 | 1.84 | -8.00 | -23.64 | 179.85 | -8.18 | 155.35 | 0.3138 | -1032.2 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -22.56 | 179.91 | -8.11 | 153.89 | 0.2974 | -650.0 | -557.9 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -24.76 | 179.64 | -8.38 | 156.38 | 0.3318 | -818.0 | -710.7 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -24.78 | 179.08 | -8.95 | 155.03 | 0.3359 | -1017.0 | -847.5 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -24.84 | 179.04 | -8.98 | 155.02 | 0.3370 | -735.0 | -614.8 | |
| 0.00 | 2.84 | 0.00 | 1.48 | -23.20 | 178.96 | -9.06 | 152.38 | 0.3137 | -1039.0 | -870.3 | |
| 1.90 | 14.22 | 0.99 | 7.46 | -24.15 | 178.76 | -9.26 | 153.36 | 0.3290 | -1182.5 | -927.6 | |
| 0.00 | 1.21 | 0.00 | 0.63 | -23.74 | 178.43 | -9.59 | 151.92 | 0.3256 | -886.0 | -756.0 | |
| 3.88 | 4.74 | 2.04 | 2.49 | -24.21 | 178.29 | -9.73 | 152.32 | 0.3333 | -875.1 | -807.2 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -23.43 | 178.32 | -9.70 | 151.16 | 0.3220 | -862.0 | -669.5 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -23.80 | 178.03 | -9.99 | 151.05 | 0.3295 | -852.0 | -757.1 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -24.24 | 177.07 | -10.96 | 149.55 | 0.3435 | -735.0 | -578.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
