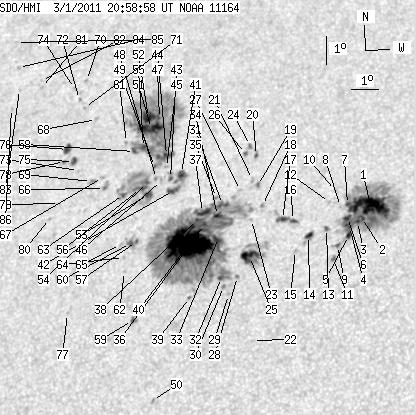

SDO HMI 2011-03-01 20:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 289.78 | 1238.26 | 185.85 | 798.68 | 25.29 | 163.51 | -23.41 | 34.08 | 0.6410 | 226.0 | 86.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-03-01 20:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.66 | 221.05 | 27.51 | 135.99 | 24.95 | 169.26 | -17.66 | 27.55 | 0.5968 | -1031.5 | -415.4 | |
| 2.24 | -1.00 | 1.38 | -1.00 | 24.54 | 169.02 | -17.90 | 28.23 | 0.5935 | -1046.7 | 999999 | |
| 1.47 | -1.00 | 0.90 | -1.00 | 24.41 | 168.90 | -18.02 | 28.50 | 0.5927 | -957.4 | 999999 | |
| 1.81 | -1.00 | 1.11 | -1.00 | 24.25 | 168.65 | -18.27 | 28.97 | 0.5924 | -744.6 | 999999 | |
| 2.24 | -1.00 | 1.37 | -1.00 | 23.93 | 168.66 | -18.26 | 29.24 | 0.5885 | -911.9 | 999999 | |
| 3.10 | -1.00 | 1.91 | -1.00 | 24.56 | 168.53 | -18.39 | 28.84 | 0.5970 | -664.1 | 999999 | |
| 1.72 | -1.00 | 1.07 | -1.00 | 25.02 | 168.46 | -18.46 | 28.53 | 0.6029 | -504.2 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.59 | 24.96 | 168.23 | -18.69 | 28.88 | 0.6038 | -452.0 | -376.1 | |
| 1.47 | -1.00 | 0.89 | -1.00 | 23.60 | 168.33 | -18.59 | 29.98 | 0.5868 | -661.1 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.75 | 25.54 | 167.96 | -18.96 | 28.72 | 0.6123 | -479.0 | -362.2 | |
| 1.72 | 2.33 | 1.05 | 1.42 | 23.12 | 168.27 | -18.65 | 30.51 | 0.5816 | -850.0 | -722.0 | |
| 0.00 | 1.29 | 0.00 | 0.81 | 25.12 | 167.82 | -19.10 | 29.26 | 0.6084 | -512.0 | -401.3 | |
| 0.86 | 2.24 | 0.53 | 1.38 | 24.21 | 167.86 | -19.06 | 30.03 | 0.5974 | -574.7 | -379.3 | |
| 3.28 | 6.98 | 2.02 | 4.31 | 23.99 | 167.28 | -19.64 | 30.98 | 0.5990 | -569.6 | -401.1 | |
| 0.00 | 1.21 | 0.00 | 0.74 | 23.49 | 166.91 | -20.01 | 31.92 | 0.5959 | -698.0 | -545.1 | |
| 2.76 | 13.28 | 1.72 | 8.30 | 24.54 | 166.67 | -20.26 | 31.23 | 0.6097 | -517.2 | -307.3 | |
| 5.26 | -16.00 | 3.29 | -16.00 | 24.60 | 166.27 | -20.65 | 31.66 | 0.6131 | -603.0 | 999999 | |
| 0.00 | 1.47 | 0.00 | 0.93 | 25.13 | 165.48 | -21.45 | 32.12 | 0.6248 | 785.0 | 575.3 | |
| 1.47 | 2.16 | 0.94 | 1.38 | 25.85 | 165.16 | -21.76 | 31.82 | 0.6350 | 615.5 | 470.6 | |
| 0.69 | 2.84 | 0.45 | 1.85 | 26.93 | 164.91 | -22.01 | 31.13 | 0.6486 | 809.0 | 683.8 | |
| 0.00 | 1.81 | 0.00 | 1.16 | 26.07 | 164.94 | -21.98 | 31.87 | 0.6391 | 594.0 | 515.8 | |
| 0.00 | 0.78 | 0.00 | 0.47 | 20.48 | 165.89 | -21.03 | 36.33 | 0.5696 | 691.0 | 549.2 | |
| 0.00 | 1.12 | 0.00 | 0.71 | 24.65 | 165.18 | -21.75 | 32.93 | 0.6218 | -317.0 | -350.8 | |
| 1.72 | 2.50 | 1.13 | 1.63 | 27.30 | 164.61 | -22.31 | 31.13 | 0.6547 | 519.0 | 451.1 | |
| 13.02 | 39.23 | 8.09 | 24.38 | 23.36 | 165.34 | -21.59 | 34.00 | 0.6063 | 974.3 | 379.4 | |
| 1.64 | 2.07 | 1.07 | 1.35 | 27.02 | 164.49 | -22.43 | 31.52 | 0.6525 | 600.1 | 603.0 | |
| 0.00 | 1.72 | 0.00 | 1.11 | 25.70 | 164.59 | -22.34 | 32.62 | 0.6375 | 538.0 | 501.5 | |
| 0.00 | 1.47 | 0.00 | 0.91 | 22.69 | 165.03 | -21.89 | 35.05 | 0.6012 | -627.0 | -513.1 | |
| 0.00 | 1.55 | 0.00 | 0.96 | 22.09 | 164.82 | -22.10 | 35.93 | 0.5963 | 813.0 | 692.8 | |
| 0.00 | 1.98 | 0.00 | 1.23 | 22.37 | 164.60 | -22.32 | 35.90 | 0.6012 | 926.0 | 837.0 | |
| 6.03 | 507.96 | 3.87 | 322.58 | 25.24 | 164.04 | -22.89 | 33.68 | 0.6366 | 605.2 | 432.3 | |
| 3.02 | -31.00 | 1.87 | -31.00 | 22.69 | 164.48 | -22.44 | 35.72 | 0.6056 | 809.3 | 999999 | |
| 1.55 | -31.00 | 0.98 | -31.00 | 24.08 | 164.12 | -22.80 | 34.72 | 0.6235 | 560.9 | 999999 | |
| 2.59 | -31.00 | 1.65 | -31.00 | 24.86 | 163.93 | -22.99 | 34.17 | 0.6333 | 832.0 | 999999 | |
| 0.00 | 2.07 | 0.00 | 1.33 | 25.50 | 163.77 | -23.15 | 33.74 | 0.6413 | 496.0 | 399.1 | |
| 1.64 | -31.00 | 1.05 | -31.00 | 24.56 | 163.53 | -23.39 | 34.91 | 0.6332 | 878.1 | 999999 | |
| 6.64 | -31.00 | 4.26 | -31.00 | 24.99 | 163.37 | -23.55 | 34.67 | 0.6390 | 616.2 | 999999 | |
| 1.03 | -31.00 | 0.66 | -31.00 | 24.75 | 163.24 | -23.68 | 35.05 | 0.6375 | 700.9 | 999999 | |
| 0.95 | 1.64 | 0.59 | 1.02 | 22.06 | 163.47 | -23.45 | 37.57 | 0.6072 | -168.8 | -198.9 | |
| 94.06 | -31.00 | 59.84 | -31.00 | 23.89 | 163.09 | -23.83 | 36.08 | 0.6296 | 1294.7 | 999999 | |
| 3.02 | 21.12 | 1.99 | 13.87 | 26.43 | 162.30 | -24.62 | 34.45 | 0.6619 | 836.3 | 708.3 | |
| 5.52 | -41.00 | 3.61 | -41.00 | 25.83 | 162.14 | -24.78 | 35.18 | 0.6570 | 887.6 | 999999 | |
| 1.64 | 5.00 | 1.08 | 3.30 | 26.27 | 161.93 | -24.99 | 34.98 | 0.6630 | 692.9 | 562.5 | |
| 8.62 | 252.86 | 5.77 | 172.66 | 27.11 | 161.59 | -25.33 | 34.54 | 0.6740 | 548.0 | -238.3 | |
| 0.00 | 1.55 | 0.00 | 1.03 | 26.67 | 161.69 | -25.23 | 34.85 | 0.6689 | 390.0 | 416.7 | |
| 0.00 | 2.41 | 0.00 | 1.60 | 26.22 | 161.62 | -25.30 | 35.36 | 0.6649 | 606.0 | 588.6 | |
| 0.78 | -44.00 | 0.53 | -44.00 | 28.48 | 160.98 | -25.94 | 33.89 | 0.6920 | -692.9 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.86 | 26.30 | 161.41 | -25.51 | 35.49 | 0.6672 | 676.0 | 572.9 | |
| 1.21 | -44.00 | 0.81 | -44.00 | 26.74 | 161.24 | -25.69 | 35.26 | 0.6729 | 504.1 | 999999 | |
| 0.00 | 1.90 | 0.00 | 1.15 | 18.66 | 162.75 | -24.17 | 42.32 | 0.5785 | 646.0 | 609.4 | |
| 17.07 | -44.00 | 11.65 | -44.00 | 28.13 | 160.77 | -26.15 | 34.42 | 0.6900 | -1030.5 | 999999 | |
| 10.00 | -44.00 | 6.88 | -44.00 | 28.54 | 160.55 | -26.37 | 34.26 | 0.6956 | -674.0 | 999999 | |
| 4.74 | 71.21 | 3.13 | 47.32 | 25.74 | 161.25 | -25.67 | 36.21 | 0.6629 | 889.3 | 191.5 | |
| 0.95 | -53.00 | 0.63 | -53.00 | 26.18 | 161.11 | -25.81 | 35.93 | 0.6683 | 597.5 | 999999 | |
| 3.97 | -44.00 | 2.69 | -44.00 | 27.45 | 160.65 | -26.27 | 35.17 | 0.6843 | -796.7 | 999999 | |
| 5.00 | -53.00 | 3.32 | -53.00 | 25.98 | 160.90 | -26.02 | 36.34 | 0.6679 | 588.1 | 999999 | |
| 1.29 | 10.09 | 0.84 | 6.54 | 24.11 | 161.18 | -25.74 | 37.93 | 0.6471 | 498.9 | 414.4 | |
| 1.98 | -44.00 | 1.34 | -44.00 | 27.33 | 160.34 | -26.58 | 35.59 | 0.6853 | 483.4 | 999999 | |
| 1.64 | 3.88 | 1.03 | 2.44 | 21.38 | 161.59 | -25.33 | 40.43 | 0.6166 | 772.0 | 680.5 | |
| 2.41 | -57.00 | 1.57 | -57.00 | 24.05 | 160.98 | -25.94 | 38.21 | 0.6482 | 649.4 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.88 | 27.68 | 159.95 | -26.97 | 35.65 | 0.6915 | -759.0 | -595.3 | |
| 0.00 | 1.03 | 0.00 | 0.66 | 23.09 | 160.97 | -25.95 | 39.23 | 0.6388 | 680.0 | 479.9 | |
| 1.90 | -53.00 | 1.26 | -53.00 | 25.80 | 160.32 | -26.60 | 37.10 | 0.6707 | 416.5 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.78 | 23.58 | 160.83 | -26.09 | 38.86 | 0.6448 | 770.0 | 551.3 | |
| 0.00 | 1.29 | 0.00 | 0.84 | 24.04 | 160.62 | -26.30 | 38.59 | 0.6511 | 583.0 | 481.8 | |
| 0.43 | 4.22 | 0.29 | 2.84 | 26.06 | 159.55 | -27.37 | 37.61 | 0.6791 | 295.4 | -312.2 | |
| 0.00 | 1.90 | 0.00 | 1.28 | 26.46 | 159.37 | -27.55 | 37.39 | 0.6843 | -600.0 | -479.8 | |
| 0.00 | 1.29 | 0.00 | 0.91 | 28.60 | 158.55 | -28.37 | 36.11 | 0.7104 | 453.0 | 504.6 | |
| 0.00 | 3.02 | 0.00 | 2.05 | 26.34 | 158.99 | -27.93 | 37.87 | 0.6862 | -377.0 | -163.1 | |
| 0.00 | 1.47 | 0.00 | 1.06 | 30.09 | 157.69 | -29.23 | 35.50 | 0.7299 | -628.0 | -542.9 | |
| 0.00 | 0.78 | 0.00 | 0.55 | 29.08 | 157.94 | -28.98 | 36.22 | 0.7191 | -678.0 | -550.8 | |
| 0.00 | 1.29 | 0.00 | 0.92 | 29.39 | 157.64 | -29.28 | 36.19 | 0.7240 | -847.0 | -732.8 | |
| 0.00 | 0.86 | 0.00 | 0.59 | 26.77 | 158.38 | -28.54 | 38.02 | 0.6948 | -562.0 | -399.4 | |
| 0.00 | 1.47 | 0.00 | 1.06 | 29.82 | 157.31 | -29.61 | 36.09 | 0.7302 | -604.0 | -506.5 | |
| 3.45 | 4.48 | 2.38 | 3.10 | 27.11 | 158.10 | -28.82 | 37.95 | 0.7001 | -691.4 | -585.4 | |
| 5.09 | 6.98 | 3.55 | 4.87 | 27.57 | 157.74 | -29.19 | 37.84 | 0.7070 | -605.4 | -454.0 | |
| 0.00 | 0.86 | 0.00 | 0.56 | 21.77 | 159.19 | -27.73 | 42.52 | 0.6417 | 405.0 | 465.1 | |
| 0.43 | 1.81 | 0.30 | 1.26 | 27.14 | 157.75 | -29.18 | 38.25 | 0.7030 | -759.8 | -647.1 | |
| 0.00 | 0.95 | 0.00 | 0.64 | 25.63 | 157.97 | -28.95 | 39.55 | 0.6876 | 650.0 | 533.5 | |
| 0.00 | 1.29 | 0.00 | 0.88 | 25.12 | 157.73 | -29.19 | 40.30 | 0.6850 | 616.0 | 473.5 | |
| 0.00 | 1.03 | 0.00 | 0.76 | 29.95 | 155.95 | -30.97 | 37.14 | 0.7408 | -760.0 | -646.3 | |
| 0.00 | 0.95 | 0.00 | 0.70 | 30.22 | 155.86 | -31.06 | 36.97 | 0.7437 | -748.0 | -631.5 | |
| 0.00 | 0.95 | 0.00 | 0.70 | 29.94 | 155.07 | -31.85 | 37.89 | 0.7470 | -569.0 | -501.1 | |
| 0.00 | 1.38 | 0.00 | 1.04 | 30.78 | 154.72 | -32.20 | 37.38 | 0.7563 | -625.0 | -552.0 | |
| 0.00 | 1.03 | 0.00 | 0.80 | 31.76 | 154.26 | -32.66 | 36.86 | 0.7674 | -371.0 | -342.8 | |
| 0.00 | 1.21 | 0.00 | 0.89 | 29.25 | 155.00 | -31.92 | 38.61 | 0.7418 | -640.0 | -591.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
