SDO HMI 2011-03-01 22:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 272.70 | 1280.74 | 173.13 | 819.03 | 25.31 | 163.45 | -22.37 | 32.86 | 0.6337 | 225.8 | 94.9 | |
|
previous
or next observation for the same group /

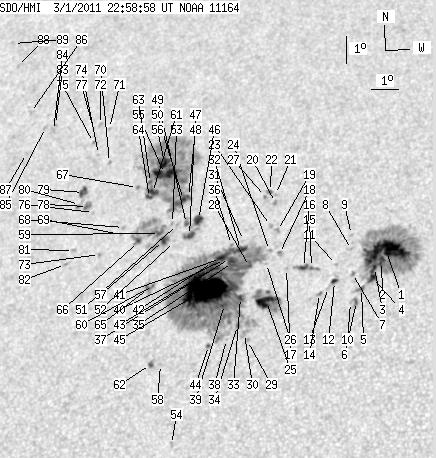

back to the solar disc SDO HMI 2011-03-01 22:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.15 | 222.73 | 27.05 | 136.33 | 24.95 | 169.16 | -16.66 | 26.23 | 0.5905 | -1015.8 | -404.3 | |
| 3.79 | -1.00 | 2.32 | -1.00 | 24.60 | 169.03 | -16.78 | 26.68 | 0.5870 | -1075.3 | 999999 | |
| 1.64 | -1.00 | 1.00 | -1.00 | 24.40 | 168.82 | -17.00 | 27.13 | 0.5859 | -850.8 | 999999 | |
| 3.71 | -1.00 | 2.25 | -1.00 | 24.05 | 168.80 | -17.02 | 27.46 | 0.5818 | -842.1 | 999999 | |
| 1.55 | 5.00 | 0.94 | 3.03 | 23.68 | 168.48 | -17.34 | 28.22 | 0.5794 | -778.8 | -498.0 | |
| 1.81 | 3.10 | 1.09 | 1.87 | 23.24 | 168.37 | -17.45 | 28.77 | 0.5747 | -803.0 | -698.7 | |
| 0.00 | 1.21 | 0.00 | 0.74 | 24.22 | 168.10 | -17.72 | 28.26 | 0.5885 | -596.0 | -539.6 | |
| 0.00 | 0.95 | 0.00 | 0.59 | 25.07 | 167.94 | -17.88 | 27.74 | 0.5997 | -545.0 | -435.3 | |
| 0.00 | 1.47 | 0.00 | 0.91 | 25.60 | 167.86 | -17.96 | 27.40 | 0.6067 | -499.0 | -350.5 | |
| 0.00 | 1.03 | 0.00 | 0.63 | 23.21 | 168.17 | -17.65 | 29.07 | 0.5757 | -564.0 | -420.3 | |
| 0.00 | 1.21 | 0.00 | 0.74 | 24.56 | 167.50 | -18.32 | 28.76 | 0.5966 | -501.0 | -358.1 | |
| 2.67 | 4.92 | 1.64 | 3.01 | 23.97 | 167.52 | -18.30 | 29.26 | 0.5893 | -461.9 | -65.5 | |
| 0.00 | 1.55 | 0.00 | 0.95 | 23.77 | 167.34 | -18.48 | 29.67 | 0.5881 | -394.0 | -397.7 | |
| 0.00 | 2.33 | 0.00 | 1.42 | 23.57 | 167.06 | -18.76 | 30.22 | 0.5878 | -622.0 | -392.9 | |
| 1.03 | 10.35 | 0.64 | 6.41 | 24.49 | 166.65 | -19.17 | 29.91 | 0.6016 | -610.8 | -459.4 | |
| 3.54 | -15.00 | 2.19 | -15.00 | 24.50 | 166.37 | -19.45 | 30.26 | 0.6037 | -588.8 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.64 | 24.50 | 165.78 | -20.04 | 31.00 | 0.6077 | -469.0 | -322.4 | |
| 0.00 | 2.59 | 0.00 | 1.62 | 25.04 | 165.44 | -20.38 | 30.92 | 0.6163 | 255.0 | 302.7 | |
| 0.00 | 1.98 | 0.00 | 1.26 | 25.86 | 165.23 | -20.59 | 30.44 | 0.6271 | 600.0 | 508.1 | |
| 0.00 | 1.81 | 0.00 | 1.16 | 26.87 | 164.96 | -20.86 | 29.86 | 0.6402 | 786.0 | 678.4 | |
| 0.00 | 1.03 | 0.00 | 0.67 | 27.16 | 164.91 | -20.91 | 29.67 | 0.6439 | 701.0 | 513.8 | |
| 1.55 | 2.85 | 1.00 | 1.84 | 27.27 | 164.70 | -21.11 | 29.81 | 0.6465 | 557.6 | 403.5 | |
| 0.00 | 1.90 | 0.00 | 1.21 | 26.05 | 164.94 | -20.88 | 30.60 | 0.6312 | 616.0 | 528.5 | |
| 0.00 | 1.81 | 0.00 | 1.14 | 25.16 | 165.07 | -20.75 | 31.26 | 0.6203 | -606.0 | -419.5 | |
| 14.83 | 41.22 | 9.15 | 25.42 | 23.38 | 165.27 | -20.55 | 32.70 | 0.5986 | 976.9 | 383.5 | |
| 0.00 | 0.78 | 0.00 | 0.49 | 24.71 | 165.05 | -20.77 | 31.71 | 0.6154 | -570.0 | -454.6 | |
| 0.00 | 1.55 | 0.00 | 1.00 | 27.10 | 164.56 | -21.26 | 30.12 | 0.6455 | 654.0 | 644.5 | |
| 0.43 | 544.45 | 0.27 | 342.69 | 24.63 | 164.46 | -21.36 | 32.48 | 0.6187 | -484.2 | 448.7 | |
| 0.00 | 1.98 | 0.00 | 1.21 | 22.07 | 164.82 | -21.00 | 34.59 | 0.5872 | 807.0 | 677.1 | |
| 0.00 | 5.60 | 0.00 | 3.43 | 22.31 | 164.68 | -21.14 | 34.51 | 0.5911 | 933.0 | 692.8 | |
| 0.00 | 1.03 | 0.00 | 0.66 | 25.56 | 164.08 | -21.74 | 32.06 | 0.6318 | 373.0 | 345.2 | |
| 5.26 | -28.00 | 3.34 | -28.00 | 25.25 | 164.03 | -21.79 | 32.41 | 0.6287 | 545.1 | 999999 | |
| 2.76 | -28.00 | 1.72 | -28.00 | 23.56 | 164.34 | -21.48 | 33.67 | 0.6078 | 799.7 | 999999 | |
| 1.72 | -28.00 | 1.06 | -28.00 | 22.60 | 164.39 | -21.43 | 34.57 | 0.5966 | 914.8 | 999999 | |
| 6.29 | -28.00 | 3.99 | -28.00 | 24.80 | 163.83 | -21.99 | 33.06 | 0.6253 | 679.4 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.61 | 25.44 | 163.67 | -22.15 | 32.64 | 0.6334 | 541.0 | 469.4 | |
| 1.03 | -28.00 | 0.66 | -28.00 | 24.95 | 163.70 | -22.12 | 33.08 | 0.6279 | -190.8 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.42 | 22.14 | 164.09 | -21.73 | 35.42 | 0.5939 | -166.0 | -144.9 | |
| 2.41 | -28.00 | 1.50 | -28.00 | 23.35 | 163.82 | -22.00 | 34.51 | 0.6094 | 1132.5 | 999999 | |
| 0.34 | -28.00 | 0.22 | -28.00 | 24.92 | 163.53 | -22.29 | 33.30 | 0.6289 | -95.0 | 999999 | |
| 4.14 | -28.00 | 2.64 | -28.00 | 24.97 | 163.38 | -22.44 | 33.43 | 0.6304 | 574.0 | 999999 | |
| 0.78 | -28.00 | 0.49 | -28.00 | 24.84 | 163.12 | -22.70 | 33.85 | 0.6310 | 593.6 | 999999 | |
| 5.09 | -28.00 | 3.23 | -28.00 | 24.59 | 163.13 | -22.69 | 34.08 | 0.6283 | 699.5 | 999999 | |
| 1.21 | 1.38 | 0.74 | 0.85 | 21.96 | 163.50 | -22.32 | 36.33 | 0.5969 | -277.6 | -250.0 | |
| 93.56 | -28.00 | 59.02 | -28.00 | 23.90 | 163.05 | -22.77 | 34.86 | 0.6215 | 1265.7 | 999999 | |
| 6.29 | 19.06 | 4.11 | 12.41 | 26.40 | 162.29 | -23.53 | 33.29 | 0.6537 | 784.0 | 732.0 | |
| 5.60 | -46.00 | 3.64 | -46.00 | 25.84 | 162.09 | -23.73 | 34.04 | 0.6494 | 892.1 | 999999 | |
| 0.78 | 260.58 | 0.51 | 176.25 | 27.25 | 161.74 | -24.08 | 33.10 | 0.6666 | 682.8 | -214.6 | |
| 2.16 | 4.74 | 1.41 | 3.10 | 26.28 | 161.88 | -23.93 | 33.85 | 0.6554 | 711.6 | 577.5 | |
| 1.38 | -48.00 | 0.91 | -48.00 | 27.15 | 161.58 | -24.24 | 33.36 | 0.6667 | 716.6 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.68 | 26.26 | 161.56 | -24.26 | 34.21 | 0.6576 | 759.0 | 629.7 | |
| 0.00 | 0.95 | 0.00 | 0.62 | 25.66 | 161.59 | -24.23 | 34.76 | 0.6512 | 533.0 | 513.2 | |
| 0.00 | 1.21 | 0.00 | 0.79 | 26.31 | 161.37 | -24.45 | 34.37 | 0.6595 | 590.0 | 505.9 | |
| 0.00 | 2.16 | 0.00 | 1.30 | 18.69 | 162.73 | -23.09 | 40.98 | 0.5686 | 794.0 | 580.6 | |
| 14.23 | -48.00 | 9.62 | -48.00 | 28.14 | 160.64 | -25.18 | 33.43 | 0.6834 | -1028.5 | 999999 | |
| 7.76 | -48.00 | 5.28 | -48.00 | 28.55 | 160.53 | -25.29 | 33.17 | 0.6882 | -670.7 | 999999 | |
| 2.67 | 64.50 | 1.75 | 42.47 | 25.72 | 161.17 | -24.65 | 35.15 | 0.6549 | 901.0 | 248.4 | |
| 0.00 | 1.29 | 0.00 | 0.80 | 21.40 | 161.92 | -23.90 | 38.80 | 0.6043 | 752.0 | 630.9 | |
| 1.81 | -57.00 | 1.19 | -57.00 | 25.98 | 160.97 | -24.85 | 35.12 | 0.6591 | 669.2 | 999999 | |
| 0.95 | 7.67 | 0.61 | 4.93 | 24.15 | 161.15 | -24.67 | 36.74 | 0.6390 | 567.3 | 308.2 | |
| 6.55 | -48.00 | 4.41 | -48.00 | 27.47 | 160.36 | -25.46 | 34.33 | 0.6787 | -799.5 | 999999 | |
| 1.98 | 3.79 | 1.23 | 2.36 | 21.42 | 161.57 | -24.25 | 39.18 | 0.6075 | 736.9 | 642.4 | |
| 1.72 | -48.00 | 1.17 | -48.00 | 27.85 | 160.19 | -25.63 | 34.16 | 0.6836 | -778.7 | 999999 | |
| 2.07 | -48.00 | 1.39 | -48.00 | 27.30 | 160.29 | -25.53 | 34.56 | 0.6774 | 388.2 | 999999 | |
| 2.24 | -60.00 | 1.44 | -60.00 | 24.05 | 160.99 | -24.83 | 37.01 | 0.6393 | 699.5 | 999999 | |
| 1.72 | -57.00 | 1.14 | -57.00 | 25.74 | 160.26 | -25.56 | 36.10 | 0.6621 | 418.9 | 999999 | |
| 0.00 | 1.47 | 0.00 | 0.99 | 27.69 | 159.74 | -26.08 | 34.75 | 0.6853 | -647.0 | -519.0 | |
| 0.00 | 1.72 | 0.00 | 1.15 | 26.27 | 159.58 | -26.24 | 36.27 | 0.6725 | -654.0 | -469.8 | |
| 0.00 | 1.21 | 0.00 | 0.80 | 26.03 | 159.53 | -26.29 | 36.56 | 0.6705 | 544.0 | 316.4 | |
| 0.00 | 1.55 | 0.00 | 1.08 | 28.68 | 158.42 | -27.40 | 35.12 | 0.7043 | 711.0 | 493.8 | |
| 0.00 | 1.38 | 0.00 | 0.98 | 29.95 | 158.04 | -27.78 | 34.31 | 0.7188 | -603.0 | -453.2 | |
| 0.00 | 1.98 | 0.00 | 1.42 | 30.13 | 157.64 | -28.18 | 34.52 | 0.7232 | -526.0 | -451.6 | |
| 0.00 | 1.21 | 0.00 | 0.80 | 25.36 | 158.91 | -26.91 | 37.84 | 0.6689 | 732.0 | 658.5 | |
| 0.00 | 0.95 | 0.00 | 0.67 | 29.01 | 157.90 | -27.92 | 35.30 | 0.7110 | -504.0 | -449.3 | |
| 0.00 | 1.38 | 0.00 | 0.98 | 29.47 | 157.57 | -28.25 | 35.18 | 0.7176 | -798.0 | -718.2 | |
| 0.00 | 0.95 | 0.00 | 0.65 | 26.88 | 158.30 | -27.52 | 36.93 | 0.6881 | -453.0 | -363.3 | |
| 0.00 | 1.21 | 0.00 | 0.86 | 30.00 | 157.40 | -28.42 | 34.85 | 0.7235 | -529.0 | -422.6 | |
| 1.72 | 5.00 | 1.18 | 3.42 | 27.12 | 158.02 | -27.80 | 36.98 | 0.6925 | -804.6 | -596.6 | |
| 5.78 | 6.38 | 3.99 | 4.41 | 27.64 | 157.72 | -28.10 | 36.76 | 0.6996 | -618.2 | -366.4 | |
| 0.00 | 3.02 | 0.00 | 2.07 | 27.21 | 157.69 | -28.13 | 37.21 | 0.6958 | -677.0 | -623.5 | |
| 0.00 | 1.98 | 0.00 | 1.33 | 25.57 | 157.90 | -27.92 | 38.64 | 0.6789 | 600.0 | 506.7 | |
| 0.00 | 1.72 | 0.00 | 1.16 | 25.09 | 157.72 | -28.10 | 39.30 | 0.6758 | 575.0 | 436.6 | |
| 0.00 | 1.29 | 0.00 | 0.94 | 30.25 | 155.82 | -30.00 | 36.02 | 0.7367 | -724.0 | -643.5 | |
| 0.00 | 1.64 | 0.00 | 1.19 | 30.03 | 155.82 | -30.00 | 36.23 | 0.7348 | -708.0 | -651.3 | |
| 0.00 | 1.98 | 0.00 | 1.45 | 30.17 | 155.45 | -30.37 | 36.42 | 0.7385 | -585.0 | -468.0 | |
| 0.00 | 1.12 | 0.00 | 0.84 | 30.78 | 154.63 | -31.19 | 36.54 | 0.7494 | -650.0 | -576.4 | |
| 0.00 | 1.55 | 0.00 | 1.13 | 29.24 | 155.01 | -30.81 | 37.67 | 0.7337 | -676.0 | -541.2 | |
| 0.00 | 0.69 | 0.00 | 0.54 | 32.61 | 153.39 | -32.43 | 35.89 | 0.7728 | -517.0 | -400.0 | |
| 0.00 | 1.90 | 0.00 | 1.51 | 33.54 | 152.83 | -32.99 | 35.50 | 0.7837 | -132.0 | -180.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
