SDO HMI 2011-03-02 04:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.59 | 20.98 | 1.40 | 11.48 | 17.71 | 178.44 | -4.09 | 8.95 | 0.4293 | -357.2 | -322.2 | |
|
previous
or next observation for the same group /

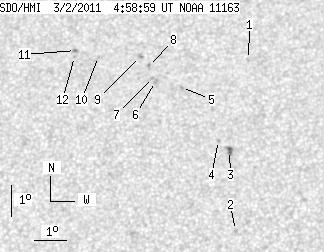

back to the solar disc SDO HMI 2011-03-02 04:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.47 | 0.00 | 0.81 | 19.02 | 180.79 | -1.75 | 3.73 | 0.4451 | -698.0 | -550.8 | |
| 0.00 | 1.55 | 0.00 | 0.82 | 13.48 | 180.44 | -2.10 | 5.74 | 0.3569 | 763.0 | 597.4 | |
| 2.59 | 4.32 | 1.40 | 2.33 | 16.04 | 180.23 | -2.31 | 5.59 | 0.3987 | 805.8 | 737.8 | |
| 0.00 | 1.47 | 0.00 | 0.79 | 16.37 | 179.88 | -2.65 | 6.33 | 0.4045 | 756.0 | 559.4 | |
| 0.00 | 1.55 | 0.00 | 0.85 | 18.11 | 178.70 | -3.83 | 8.45 | 0.4343 | -811.0 | -624.5 | |
| 0.00 | 1.73 | 0.00 | 0.95 | 18.31 | 177.88 | -4.65 | 10.14 | 0.4396 | -875.0 | -794.6 | |
| 0.00 | 1.12 | 0.00 | 0.62 | 18.45 | 177.78 | -4.75 | 10.29 | 0.4419 | -909.0 | -768.8 | |
| 0.00 | 2.16 | 0.00 | 1.19 | 18.81 | 177.64 | -4.89 | 10.42 | 0.4479 | -748.0 | -633.0 | |
| 0.00 | 1.90 | 0.00 | 1.05 | 19.15 | 177.38 | -5.15 | 10.82 | 0.4538 | -796.0 | -623.3 | |
| 0.00 | 1.12 | 0.00 | 0.62 | 19.16 | 176.05 | -6.48 | 13.50 | 0.4584 | -687.0 | -545.8 | |
| 0.00 | 1.64 | 0.00 | 0.92 | 19.38 | 175.32 | -7.22 | 14.85 | 0.4644 | -794.0 | -648.1 | |
| 0.00 | 0.95 | 0.00 | 0.53 | 19.18 | 175.29 | -7.24 | 15.01 | 0.4615 | -759.0 | -604.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
