SDO HMI 2011-03-02 04:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.43 | 65.68 | 11.50 | 33.86 | -23.23 | 180.48 | -2.06 | 173.55 | 0.2798 | 54.1 | -454.2 | |
|
previous
or next observation for the same group /

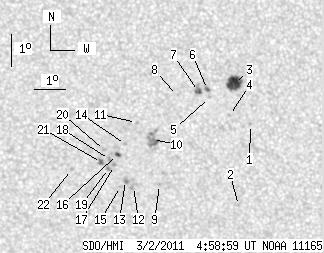

back to the solar disc SDO HMI 2011-03-02 04:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 0.58 | -23.09 | 183.06 | 0.53 | 181.78 | 0.2745 | 776.0 | 612.0 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -25.61 | 182.68 | 0.15 | 180.42 | 0.3166 | 863.0 | 638.0 | |
| 15.36 | 16.23 | 7.86 | 8.30 | -21.83 | 182.55 | 0.01 | 180.05 | 0.2531 | 1025.1 | 820.6 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -22.81 | 182.39 | -0.15 | 179.49 | 0.2697 | 799.0 | 644.3 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -22.26 | 181.75 | -0.79 | 177.19 | 0.2607 | 742.0 | 535.6 | |
| 1.12 | 2.33 | 0.57 | 1.19 | -22.01 | 181.68 | -0.85 | 176.91 | 0.2565 | 1062.5 | 961.8 | |
| 2.33 | 5.26 | 1.19 | 2.70 | -22.07 | 181.39 | -1.14 | 175.88 | 0.2579 | 855.0 | 780.3 | |
| 0.00 | 0.52 | 0.00 | 0.27 | -22.19 | 180.72 | -1.82 | 173.52 | 0.2610 | 774.0 | 631.0 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -24.94 | 180.09 | -2.44 | 172.76 | 0.3081 | -770.0 | -582.5 | |
| 0.00 | 13.98 | 0.00 | 7.22 | -23.55 | 179.89 | -2.64 | 171.44 | 0.2854 | -1129.0 | -879.1 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -23.02 | 179.38 | -3.15 | 169.47 | 0.2780 | -902.0 | -742.1 | |
| 0.00 | 3.19 | 0.00 | 1.66 | -25.00 | 179.24 | -3.30 | 170.31 | 0.3111 | -624.0 | -645.0 | |
| 0.00 | 2.68 | 0.00 | 1.39 | -24.81 | 178.98 | -3.56 | 169.45 | 0.3088 | -955.0 | -859.6 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -23.69 | 179.01 | -3.52 | 168.77 | 0.2904 | -870.0 | -697.2 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -25.00 | 178.81 | -3.72 | 169.08 | 0.3123 | -490.0 | -484.8 | |
| 1.64 | 2.16 | 0.85 | 1.12 | -24.00 | 178.74 | -3.79 | 168.18 | 0.2963 | -967.4 | -844.3 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -24.34 | 178.63 | -3.90 | 168.11 | 0.3022 | -817.0 | -763.6 | |
| 0.00 | 2.16 | 0.00 | 1.12 | -24.16 | 178.48 | -4.06 | 167.50 | 0.2997 | -1053.0 | -914.1 | |
| 0.00 | 1.98 | 0.00 | 1.03 | -24.43 | 178.43 | -4.10 | 167.60 | 0.3044 | -861.0 | -667.4 | |
| 0.00 | 1.38 | 0.00 | 0.72 | -23.87 | 178.32 | -4.21 | 166.81 | 0.2957 | -1049.0 | -822.5 | |
| 1.98 | 3.11 | 1.03 | 1.61 | -24.25 | 178.21 | -4.32 | 166.79 | 0.3022 | -870.6 | -713.1 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -24.45 | 177.22 | -5.31 | 164.13 | 0.3096 | -852.0 | -693.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
