SDO HMI 2011-03-02 09:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.55 | 61.73 | 10.56 | 31.88 | -23.35 | 180.25 | 0.45 | 181.87 | 0.2807 | -41.5 | -470.3 | |
|
previous
or next observation for the same group /

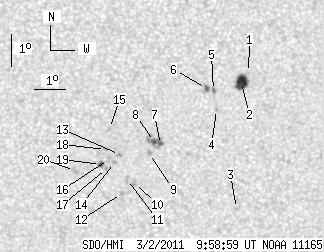

back to the solar disc SDO HMI 2011-03-02 09:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.49 | -21.47 | 182.88 | 3.08 | 191.48 | 0.2524 | 274.0 | 285.5 | |
| 12.17 | 13.81 | 6.24 | 7.08 | -21.77 | 182.66 | 2.86 | 190.45 | 0.2568 | 1099.8 | 839.4 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -25.68 | 182.59 | 2.78 | 187.87 | 0.3212 | 618.0 | 681.0 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -22.61 | 181.88 | 2.07 | 187.17 | 0.2687 | 807.0 | 653.4 | |
| 0.35 | 1.99 | 0.18 | 1.02 | -22.02 | 181.77 | 1.97 | 187.10 | 0.2587 | 1079.0 | 858.7 | |
| 2.24 | 3.80 | 1.15 | 1.95 | -21.96 | 181.55 | 1.74 | 186.32 | 0.2572 | 961.8 | 675.4 | |
| 1.64 | 13.64 | 0.85 | 7.04 | -23.69 | 180.08 | 0.27 | 180.88 | 0.2848 | -820.7 | -877.3 | |
| 1.73 | -7.00 | 0.89 | -7.00 | -23.60 | 179.88 | 0.08 | 180.25 | 0.2832 | -1067.2 | 999999 | |
| 0.00 | 1.47 | 0.00 | 0.76 | -23.97 | 179.72 | -0.08 | 179.73 | 0.2895 | -774.0 | -706.1 | |
| 0.00 | 3.28 | 0.00 | 1.71 | -24.91 | 179.23 | -0.58 | 178.28 | 0.3053 | -863.0 | -799.0 | |
| 0.00 | 2.85 | 0.00 | 1.48 | -24.78 | 179.00 | -0.80 | 177.58 | 0.3033 | -737.0 | -714.9 | |
| 0.00 | 1.64 | 0.00 | 0.85 | -25.22 | 178.80 | -1.00 | 177.06 | 0.3107 | -750.0 | -602.1 | |
| 0.00 | 1.99 | 0.00 | 1.03 | -24.00 | 178.74 | -1.06 | 176.65 | 0.2905 | -1100.0 | -851.3 | |
| 0.00 | 1.55 | 0.00 | 0.81 | -24.25 | 178.58 | -1.22 | 176.19 | 0.2948 | -991.0 | -752.6 | |
| 0.00 | 1.64 | 0.00 | 0.85 | -23.20 | 178.43 | -1.38 | 175.41 | 0.2774 | -822.0 | -584.6 | |
| 0.00 | 2.68 | 0.00 | 1.39 | -24.16 | 178.38 | -1.42 | 175.56 | 0.2935 | -576.0 | -422.4 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -24.44 | 178.32 | -1.49 | 175.43 | 0.2982 | -868.0 | -668.4 | |
| 0.00 | 1.38 | 0.00 | 0.71 | -23.85 | 178.29 | -1.51 | 175.17 | 0.2884 | -996.0 | -782.0 | |
| 2.42 | 2.85 | 1.25 | 1.48 | -24.31 | 178.12 | -1.68 | 174.80 | 0.2964 | -874.8 | -794.2 | |
| 0.00 | 3.02 | 0.00 | 1.57 | -24.49 | 177.27 | -2.53 | 172.29 | 0.3011 | -784.0 | -652.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
