SDO HMI 2011-03-02 10:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 18.65 | 0.00 | 10.23 | 18.06 | 178.27 | -0.98 | 1.94 | 0.4309 | -512.1 | -404.5 | |
|
previous
or next observation for the same group /

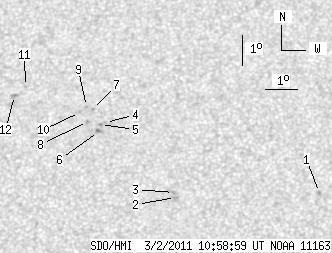

back to the solar disc SDO HMI 2011-03-02 10:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.38 | 0.00 | 0.75 | 16.18 | 184.81 | 5.56 | 346.81 | 0.4092 | -854.0 | -715.5 | |
| 0.00 | 2.07 | 0.00 | 1.12 | 15.99 | 180.35 | 1.09 | 357.34 | 0.3962 | 973.0 | 736.7 | |
| 0.00 | 1.47 | 0.00 | 0.79 | 16.15 | 180.29 | 1.03 | 357.50 | 0.3987 | 731.0 | 637.1 | |
| 0.00 | 0.78 | 0.00 | 0.43 | 18.44 | 178.17 | -1.09 | 2.38 | 0.4352 | -527.0 | -460.2 | |
| 0.00 | 1.64 | 0.00 | 0.90 | 18.37 | 178.01 | -1.24 | 2.73 | 0.4343 | -909.0 | -706.7 | |
| 0.00 | 2.68 | 0.00 | 1.47 | 18.14 | 177.95 | -1.30 | 2.89 | 0.4307 | -1016.0 | -834.2 | |
| 0.00 | 1.04 | 0.00 | 0.57 | 18.87 | 177.76 | -1.50 | 3.22 | 0.4423 | -860.0 | -666.5 | |
| 0.00 | 1.55 | 0.00 | 0.85 | 18.47 | 177.61 | -1.65 | 3.60 | 0.4362 | -901.0 | -694.6 | |
| 0.00 | 1.21 | 0.00 | 0.67 | 18.97 | 177.57 | -1.69 | 3.61 | 0.4440 | -727.0 | -579.8 | |
| 0.00 | 0.95 | 0.00 | 0.52 | 18.77 | 177.35 | -1.90 | 4.11 | 0.4411 | -684.0 | -617.5 | |
| 0.00 | 0.86 | 0.00 | 0.48 | 19.64 | 175.64 | -3.62 | 7.50 | 0.4575 | -602.0 | -404.7 | |
| 0.00 | 3.02 | 0.00 | 1.68 | 19.35 | 175.30 | -3.96 | 8.29 | 0.4536 | -769.0 | -591.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
