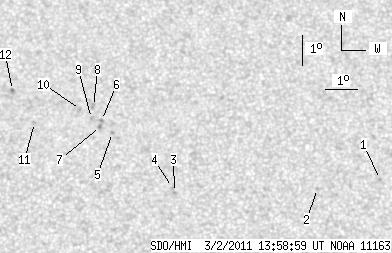

SDO HMI 2011-03-02 13:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 17.25 | 0.00 | 9.45 | 17.87 | 178.99 | 1.38 | 356.72 | 0.4293 | -405.0 | -347.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-03-02 13:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 0.62 | 16.53 | 186.77 | 9.16 | 339.17 | 0.4311 | 754.0 | 586.9 | |
| 0.00 | 1.29 | 0.00 | 0.70 | 16.20 | 184.79 | 7.18 | 343.16 | 0.4161 | -774.0 | -521.1 | |
| 0.00 | 1.47 | 0.00 | 0.79 | 16.02 | 180.34 | 2.74 | 353.37 | 0.3988 | 997.0 | 771.0 | |
| 0.00 | 1.38 | 0.00 | 0.75 | 16.18 | 180.28 | 2.68 | 353.56 | 0.4013 | 805.0 | 678.8 | |
| 0.00 | 1.12 | 0.00 | 0.61 | 17.97 | 178.43 | 0.83 | 358.15 | 0.4276 | -791.0 | -615.1 | |
| 0.00 | 0.95 | 0.00 | 0.52 | 18.36 | 178.09 | 0.48 | 358.93 | 0.4337 | -789.0 | -631.4 | |
| 0.00 | 1.81 | 0.00 | 0.99 | 18.17 | 178.06 | 0.45 | 359.00 | 0.4306 | -974.0 | -814.7 | |
| 0.00 | 2.24 | 0.00 | 1.24 | 18.83 | 177.84 | 0.24 | 359.49 | 0.4409 | -823.0 | -597.8 | |
| 0.00 | 1.29 | 0.00 | 0.71 | 18.43 | 177.78 | 0.17 | 359.62 | 0.4347 | -892.0 | -712.7 | |
| 0.00 | 1.64 | 0.00 | 0.90 | 18.73 | 177.43 | -0.17 | 0.37 | 0.4394 | -821.0 | -646.1 | |
| 0.00 | 1.21 | 0.00 | 0.66 | 18.30 | 176.00 | -1.61 | 3.55 | 0.4334 | -742.0 | -575.5 | |
| 0.00 | 1.73 | 0.00 | 0.96 | 19.36 | 175.29 | -2.32 | 4.87 | 0.4509 | -810.0 | -699.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
