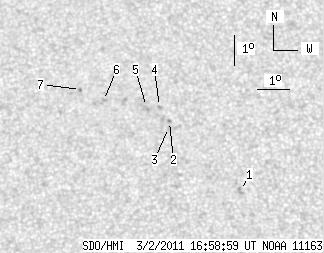

SDO HMI 2011-03-02 16:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.99 | 0.00 | 6.57 | 18.02 | 178.05 | 2.10 | 355.15 | 0.4304 | -543.0 | -291.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-03-02 16:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.28 | 0.00 | 1.77 | 16.09 | 180.33 | 4.37 | 349.50 | 0.4039 | 683.0 | 696.5 | |
| 0.00 | 1.29 | 0.00 | 0.71 | 18.33 | 178.16 | 2.20 | 355.16 | 0.4346 | -809.0 | -723.7 | |
| 0.00 | 1.81 | 0.00 | 0.99 | 18.13 | 178.12 | 2.17 | 355.20 | 0.4314 | -801.0 | -692.6 | |
| 0.00 | 1.73 | 0.00 | 0.95 | 18.82 | 177.85 | 1.90 | 355.92 | 0.4420 | -757.0 | -640.8 | |
| 0.00 | 1.04 | 0.00 | 0.57 | 18.82 | 177.44 | 1.49 | 356.80 | 0.4415 | -572.0 | -578.1 | |
| 0.00 | 1.55 | 0.00 | 0.86 | 19.02 | 176.09 | 0.14 | 359.71 | 0.4440 | -795.0 | -628.6 | |
| 0.00 | 1.29 | 0.00 | 0.72 | 19.38 | 175.37 | -0.59 | 1.23 | 0.4498 | -750.0 | -652.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
