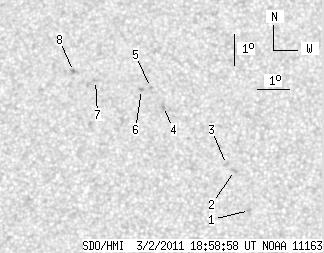

SDO HMI 2011-03-02 18:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 15.18 | 0.00 | 8.30 | 17.49 | 178.38 | 3.53 | 351.73 | 0.4253 | -254.1 | -115.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-03-02 18:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.33 | 0.00 | 1.25 | 14.82 | 180.80 | 5.95 | 345.02 | 0.3895 | 809.0 | 676.2 | |
| 0.00 | 1.98 | 0.00 | 1.08 | 16.10 | 180.37 | 5.52 | 346.84 | 0.4079 | 906.0 | 685.0 | |
| 0.00 | 2.16 | 0.00 | 1.17 | 16.29 | 180.13 | 5.28 | 347.50 | 0.4100 | 678.0 | 500.4 | |
| 0.00 | 2.50 | 0.00 | 1.37 | 18.17 | 178.21 | 3.36 | 352.60 | 0.4341 | -1012.0 | -764.1 | |
| 0.00 | 0.95 | 0.00 | 0.52 | 18.79 | 177.81 | 2.96 | 353.63 | 0.4431 | -831.0 | -691.9 | |
| 0.00 | 1.12 | 0.00 | 0.62 | 18.72 | 177.53 | 2.68 | 354.22 | 0.4415 | -923.0 | -752.9 | |
| 0.00 | 1.64 | 0.00 | 0.91 | 19.01 | 176.09 | 1.24 | 357.35 | 0.4445 | -843.0 | -625.1 | |
| 0.00 | 2.50 | 0.00 | 1.38 | 19.31 | 175.40 | 0.55 | 358.84 | 0.4488 | -817.0 | -495.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
