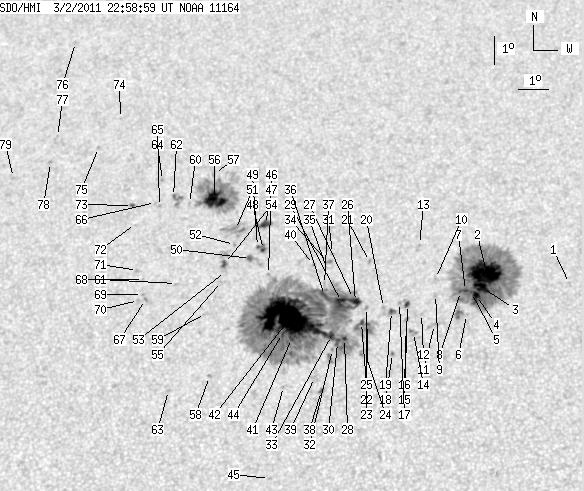

SDO HMI 2011-03-02 22:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 256.78 | 1317.09 | 152.09 | 779.75 | 24.84 | 164.33 | -8.32 | 13.79 | 0.5498 | 207.6 | 132.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-03-02 22:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.73 | 0.00 | 1.01 | 25.04 | 172.01 | -0.64 | 1.08 | 0.5363 | -700.0 | -565.5 | |
| 43.57 | 335.17 | 25.69 | 197.29 | 25.44 | 169.28 | -3.37 | 5.62 | 0.5445 | -1066.3 | -395.0 | |
| 9.32 | -2.00 | 5.46 | -2.00 | 24.91 | 169.13 | -3.52 | 5.98 | 0.5370 | -1312.6 | 999999 | |
| 3.11 | -2.00 | 1.82 | -2.00 | 24.63 | 168.97 | -3.68 | 6.30 | 0.5332 | -1345.4 | 999999 | |
| 1.47 | -2.00 | 0.86 | -2.00 | 24.74 | 168.80 | -3.84 | 6.56 | 0.5350 | -1104.2 | 999999 | |
| 0.00 | 1.47 | 0.00 | 0.85 | 23.97 | 168.66 | -3.98 | 6.99 | 0.5239 | -694.0 | -579.4 | |
| 1.55 | -2.00 | 0.91 | -2.00 | 24.81 | 168.60 | -4.04 | 6.88 | 0.5364 | -690.5 | 999999 | |
| 1.12 | -2.00 | 0.66 | -2.00 | 24.78 | 168.44 | -4.21 | 7.16 | 0.5362 | -506.3 | 999999 | |
| 0.00 | 2.07 | 0.00 | 1.21 | 24.68 | 167.62 | -5.02 | 8.56 | 0.5364 | -589.0 | -516.5 | |
| 0.00 | 1.47 | 0.00 | 0.86 | 25.24 | 167.60 | -5.05 | 8.43 | 0.5447 | -640.0 | -398.3 | |
| 0.00 | 4.49 | 0.00 | 2.60 | 23.64 | 167.63 | -5.01 | 8.87 | 0.5211 | -732.0 | -546.3 | |
| 0.00 | 0.78 | 0.00 | 0.45 | 24.02 | 167.19 | -5.45 | 9.50 | 0.5278 | -504.0 | -362.7 | |
| 0.00 | 1.12 | 0.00 | 0.67 | 26.46 | 167.02 | -5.63 | 9.01 | 0.5634 | -527.0 | -464.5 | |
| 0.00 | 4.23 | 0.00 | 2.45 | 23.37 | 166.96 | -5.69 | 10.14 | 0.5188 | -712.0 | -503.2 | |
| 2.33 | 4.31 | 1.36 | 2.52 | 24.34 | 166.72 | -5.93 | 10.19 | 0.5337 | -729.0 | -429.6 | |
| 0.00 | 2.42 | 0.00 | 1.40 | 23.82 | 166.71 | -5.93 | 10.40 | 0.5261 | -801.0 | -549.8 | |
| 0.00 | 1.21 | 0.00 | 0.71 | 24.42 | 166.45 | -6.19 | 10.61 | 0.5354 | -398.0 | -315.1 | |
| 0.00 | 1.29 | 0.00 | 0.74 | 22.65 | 166.31 | -6.34 | 11.56 | 0.5101 | -765.0 | -669.2 | |
| 2.16 | 4.23 | 1.26 | 2.47 | 24.11 | 166.21 | -6.44 | 11.15 | 0.5316 | -583.7 | -548.9 | |
| 0.00 | 1.47 | 0.00 | 0.86 | 24.25 | 165.94 | -6.71 | 11.54 | 0.5345 | -156.0 | -129.4 | |
| 0.00 | 1.55 | 0.00 | 0.93 | 25.88 | 165.38 | -7.27 | 11.78 | 0.5594 | 777.0 | 658.1 | |
| 0.69 | 24.59 | 0.40 | 14.30 | 23.67 | 165.45 | -7.20 | 12.62 | 0.5276 | 878.8 | 570.2 | |
| 0.00 | 2.07 | 0.00 | 1.21 | 24.26 | 165.38 | -7.27 | 12.47 | 0.5363 | -578.0 | -323.3 | |
| 0.00 | 4.66 | 0.00 | 2.69 | 22.74 | 165.40 | -7.25 | 13.13 | 0.5142 | 432.0 | 511.5 | |
| 1.55 | -22.00 | 0.91 | -22.00 | 23.74 | 165.25 | -7.40 | 12.93 | 0.5293 | 722.6 | 999999 | |
| 5.61 | 707.79 | 3.30 | 415.40 | 24.48 | 165.00 | -7.64 | 12.99 | 0.5406 | -628.8 | 449.9 | |
| 0.60 | -26.00 | 0.36 | -26.00 | 24.58 | 164.93 | -7.71 | 13.06 | 0.5424 | 227.4 | 999999 | |
| 1.47 | -26.00 | 0.85 | -26.00 | 23.20 | 164.72 | -7.93 | 14.07 | 0.5233 | 1018.5 | 999999 | |
| 5.35 | -26.00 | 3.15 | -26.00 | 24.49 | 164.54 | -8.10 | 13.74 | 0.5423 | -487.6 | 999999 | |
| 3.19 | -26.00 | 1.85 | -26.00 | 23.06 | 164.50 | -8.15 | 14.52 | 0.5221 | 1075.8 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.78 | 26.19 | 164.13 | -8.52 | 13.60 | 0.5677 | 644.0 | 468.1 | |
| 0.00 | 1.21 | 0.00 | 0.70 | 22.83 | 164.35 | -8.29 | 14.90 | 0.5193 | 915.0 | 758.4 | |
| 2.76 | -26.00 | 1.61 | -26.00 | 23.31 | 164.29 | -8.36 | 14.75 | 0.5265 | 1109.2 | 999999 | |
| 0.00 | 3.11 | 0.00 | 1.86 | 25.87 | 164.02 | -8.63 | 13.92 | 0.5637 | 532.0 | 507.8 | |
| 0.00 | 1.21 | 0.00 | 0.72 | 25.69 | 163.96 | -8.69 | 14.08 | 0.5614 | 504.0 | 310.9 | |
| 4.92 | -26.00 | 2.91 | -26.00 | 24.71 | 163.97 | -8.68 | 14.56 | 0.5475 | 446.2 | 999999 | |
| 0.00 | 1.55 | 0.00 | 0.92 | 25.09 | 163.94 | -8.71 | 14.41 | 0.5531 | -45.0 | -26.7 | |
| 2.16 | 2.50 | 1.23 | 1.43 | 21.43 | 164.08 | -8.57 | 16.16 | 0.5002 | -666.4 | -676.0 | |
| 0.00 | 2.50 | 0.00 | 1.44 | 21.88 | 163.83 | -8.82 | 16.34 | 0.5078 | -226.0 | -212.6 | |
| 0.00 | 1.04 | 0.00 | 0.62 | 25.81 | 163.52 | -9.13 | 14.71 | 0.5646 | 816.0 | 679.1 | |
| 1.81 | -26.00 | 1.06 | -26.00 | 23.23 | 162.99 | -9.66 | 16.97 | 0.5306 | 1286.2 | 999999 | |
| 123.89 | -26.00 | 72.85 | -26.00 | 23.93 | 162.87 | -9.78 | 16.75 | 0.5409 | 1160.2 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.59 | 21.60 | 162.84 | -9.81 | 18.24 | 0.5081 | 658.0 | 550.7 | |
| 0.95 | -26.00 | 0.56 | -26.00 | 23.41 | 162.68 | -9.97 | 17.36 | 0.5345 | 1091.5 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.68 | 18.52 | 162.59 | -10.06 | 20.94 | 0.4654 | 797.0 | 579.4 | |
| 0.00 | 1.64 | 0.00 | 0.98 | 25.49 | 162.04 | -10.61 | 17.14 | 0.5660 | 498.0 | 390.0 | |
| 5.44 | 10.01 | 3.33 | 6.14 | 27.28 | 161.77 | -10.88 | 16.54 | 0.5914 | 787.0 | 621.6 | |
| 1.64 | 6.30 | 0.99 | 3.82 | 26.38 | 161.79 | -10.86 | 17.01 | 0.5792 | 915.3 | 681.8 | |
| 0.35 | -48.00 | 0.21 | -48.00 | 26.50 | 161.57 | -11.07 | 17.26 | 0.5816 | 856.5 | 999999 | |
| 3.11 | 7.68 | 1.88 | 4.64 | 26.08 | 161.38 | -11.27 | 17.79 | 0.5768 | 821.6 | 677.6 | |
| 0.00 | 19.50 | 0.00 | 11.98 | 27.13 | 160.76 | -11.89 | 18.06 | 0.5935 | 134.0 | 262.5 | |
| 0.00 | 1.29 | 0.00 | 0.79 | 26.59 | 160.79 | -11.86 | 18.34 | 0.5863 | 765.0 | 609.3 | |
| 0.00 | 2.24 | 0.00 | 1.35 | 25.64 | 160.58 | -12.07 | 19.23 | 0.5745 | 216.0 | 236.7 | |
| 2.85 | 8.37 | 1.73 | 5.09 | 25.92 | 160.52 | -12.13 | 19.14 | 0.5786 | 845.4 | 564.4 | |
| 0.00 | 0.86 | 0.00 | 0.52 | 25.29 | 160.48 | -12.17 | 19.60 | 0.5703 | 591.0 | 414.5 | |
| 21.48 | 95.76 | 13.42 | 59.92 | 28.24 | 159.91 | -12.74 | 18.58 | 0.6118 | -973.2 | -260.1 | |
| 0.00 | 2.42 | 0.00 | 1.53 | 29.20 | 159.79 | -12.85 | 18.18 | 0.6246 | -22.0 | 14.3 | |
| 0.00 | 1.64 | 0.00 | 0.95 | 22.00 | 160.40 | -12.25 | 22.05 | 0.5262 | 760.0 | 659.4 | |
| 0.00 | 2.42 | 0.00 | 1.44 | 24.18 | 160.06 | -12.59 | 20.98 | 0.5575 | 631.0 | 472.9 | |
| 0.00 | 1.12 | 0.00 | 0.70 | 28.12 | 159.06 | -13.59 | 19.79 | 0.6141 | -680.0 | -582.5 | |
| 0.00 | 1.29 | 0.00 | 0.78 | 25.26 | 158.97 | -13.68 | 21.82 | 0.5776 | 651.0 | 522.7 | |
| 1.21 | 9.66 | 0.76 | 6.07 | 28.40 | 158.47 | -14.18 | 20.40 | 0.6204 | -540.8 | -595.2 | |
| 0.00 | 1.38 | 0.00 | 0.80 | 21.56 | 159.09 | -13.56 | 24.49 | 0.5280 | 754.0 | 566.0 | |
| 0.00 | 0.95 | 0.00 | 0.60 | 29.00 | 158.00 | -14.65 | 20.63 | 0.6302 | -608.0 | -550.7 | |
| 0.00 | 1.38 | 0.00 | 0.87 | 28.05 | 158.03 | -14.62 | 21.20 | 0.6181 | -745.0 | -607.9 | |
| 0.00 | 0.78 | 0.00 | 0.49 | 28.20 | 157.87 | -14.78 | 21.31 | 0.6208 | -702.0 | -616.1 | |
| 0.00 | 1.47 | 0.00 | 0.89 | 24.73 | 157.98 | -14.67 | 23.62 | 0.5761 | 901.0 | 749.4 | |
| 0.00 | 0.78 | 0.00 | 0.47 | 25.44 | 157.83 | -14.82 | 23.31 | 0.5861 | 643.0 | 506.1 | |
| 0.00 | 1.21 | 0.00 | 0.73 | 24.91 | 157.86 | -14.79 | 23.66 | 0.5791 | 680.0 | 565.1 | |
| 0.00 | 1.04 | 0.00 | 0.63 | 24.71 | 157.75 | -14.90 | 23.97 | 0.5771 | 632.0 | 531.8 | |
| 0.00 | 1.81 | 0.00 | 1.11 | 25.77 | 157.58 | -15.07 | 23.40 | 0.5916 | 442.0 | 397.5 | |
| 0.00 | 0.52 | 0.00 | 0.32 | 27.46 | 157.28 | -15.37 | 22.59 | 0.6146 | -504.0 | -543.8 | |
| 1.12 | 1.98 | 0.71 | 1.25 | 28.12 | 157.08 | -15.57 | 22.39 | 0.6238 | -652.5 | -497.5 | |
| 0.00 | 0.60 | 0.00 | 0.40 | 31.39 | 156.11 | -16.54 | 21.41 | 0.6682 | -474.0 | -440.7 | |
| 0.00 | 1.47 | 0.00 | 0.96 | 30.32 | 155.51 | -17.14 | 22.81 | 0.6585 | -635.0 | -505.9 | |
| 0.00 | 0.95 | 0.00 | 0.67 | 34.44 | 153.80 | -18.85 | 22.00 | 0.7136 | -553.0 | -465.5 | |
| 0.00 | 0.95 | 0.00 | 0.63 | 30.81 | 153.92 | -18.72 | 24.30 | 0.6723 | -630.0 | -573.9 | |
| 0.00 | 1.29 | 0.00 | 0.85 | 29.83 | 153.86 | -18.78 | 25.07 | 0.6615 | -643.0 | -611.8 | |
| 0.00 | 1.55 | 0.00 | 1.02 | 29.34 | 152.62 | -20.02 | 26.87 | 0.6629 | -725.0 | -525.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
