SDO HMI 2011-03-03 04:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.52 | 24.86 | 0.27 | 13.05 | -23.04 | 180.80 | 11.44 | 213.58 | 0.3327 | -449.1 | -63.8 | |
|
previous
or next observation for the same group /

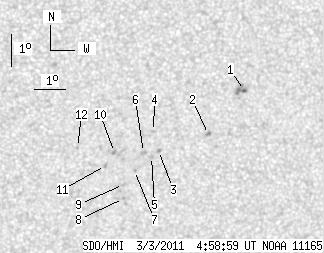

back to the solar disc SDO HMI 2011-03-03 04:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.52 | 7.25 | 0.27 | 3.81 | -21.55 | 183.08 | 13.72 | 221.39 | 0.3352 | 985.0 | 952.8 | |
| 0.00 | 2.33 | 0.00 | 1.23 | -22.93 | 182.03 | 12.67 | 216.48 | 0.3412 | 939.0 | 761.6 | |
| 0.00 | 1.30 | 0.00 | 0.68 | -23.46 | 180.43 | 11.06 | 212.02 | 0.3335 | -731.0 | -621.3 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -22.88 | 180.21 | 10.85 | 212.56 | 0.3237 | -763.0 | -593.0 | |
| 0.00 | 1.99 | 0.00 | 1.04 | -23.66 | 180.21 | 10.85 | 211.21 | 0.3342 | -587.0 | -425.0 | |
| 0.00 | 2.76 | 0.00 | 1.45 | -23.54 | 179.94 | 10.58 | 210.78 | 0.3303 | -828.0 | -683.5 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -24.10 | 179.69 | 10.32 | 209.27 | 0.3361 | -639.0 | -586.6 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -24.98 | 179.39 | 10.03 | 207.27 | 0.3462 | -863.0 | -718.2 | |
| 0.00 | 1.64 | 0.00 | 0.86 | -24.54 | 179.36 | 10.00 | 207.83 | 0.3397 | -711.0 | -646.4 | |
| 0.00 | 1.99 | 0.00 | 1.04 | -23.56 | 178.98 | 9.62 | 208.48 | 0.3228 | -923.0 | -797.0 | |
| 0.00 | 1.55 | 0.00 | 0.81 | -23.97 | 178.72 | 9.36 | 207.19 | 0.3266 | -911.0 | -684.4 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -23.43 | 177.76 | 8.40 | 205.59 | 0.3117 | -744.0 | -602.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
