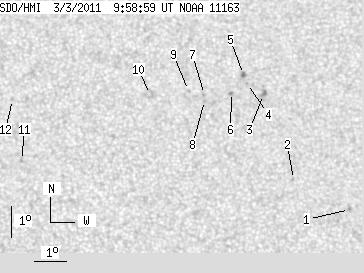

SDO HMI 2011-03-03 09:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 21.07 | 0.00 | 11.77 | 18.28 | 176.19 | 9.56 | 339.92 | 0.4608 | -402.1 | -453.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-03-03 09:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.64 | 0.00 | 0.91 | 15.14 | 180.38 | 13.75 | 328.68 | 0.4433 | 914.0 | 682.0 | |
| 0.00 | 1.12 | 0.00 | 0.62 | 16.05 | 178.67 | 12.04 | 332.96 | 0.4427 | -757.0 | -581.4 | |
| 0.00 | 4.49 | 0.00 | 2.53 | 18.81 | 177.89 | 11.26 | 337.06 | 0.4762 | -1036.0 | -736.1 | |
| 0.00 | 0.95 | 0.00 | 0.54 | 19.16 | 177.40 | 10.77 | 338.25 | 0.4784 | -846.0 | -717.2 | |
| 0.00 | 2.07 | 0.00 | 1.17 | 19.46 | 177.29 | 10.66 | 338.68 | 0.4820 | -835.0 | -741.7 | |
| 0.00 | 1.30 | 0.00 | 0.73 | 18.85 | 176.87 | 10.24 | 338.98 | 0.4710 | -899.0 | -820.1 | |
| 0.00 | 1.04 | 0.00 | 0.58 | 18.77 | 176.01 | 9.38 | 340.55 | 0.4651 | -849.0 | -699.5 | |
| 0.00 | 0.86 | 0.00 | 0.48 | 18.57 | 175.99 | 9.36 | 340.42 | 0.4622 | -900.0 | -725.5 | |
| 0.00 | 1.21 | 0.00 | 0.68 | 18.89 | 175.50 | 8.87 | 341.60 | 0.4644 | -716.0 | -589.4 | |
| 0.00 | 4.32 | 0.00 | 2.40 | 18.73 | 174.29 | 7.66 | 343.88 | 0.4565 | -410.0 | -595.6 | |
| 0.00 | 1.47 | 0.00 | 0.80 | 16.52 | 170.18 | 3.55 | 351.61 | 0.4086 | 844.0 | 645.9 | |
| 0.00 | 0.60 | 0.00 | 0.33 | 18.51 | 169.93 | 3.30 | 352.82 | 0.4394 | 665.0 | 574.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
