SDO HMI 2011-03-03 09:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.12 | 20.64 | 0.60 | 10.95 | -23.61 | 180.15 | 13.52 | 216.89 | 0.3597 | -586.6 | -428.4 | |
|
previous
or next observation for the same group /

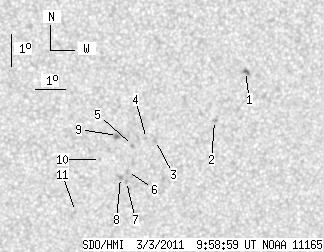

back to the solar disc SDO HMI 2011-03-03 09:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.12 | 3.63 | 0.60 | 1.93 | -21.42 | 183.05 | 16.42 | 226.47 | 0.3645 | 978.4 | 782.8 | |
| 0.00 | 1.38 | 0.00 | 0.74 | -22.96 | 182.19 | 15.56 | 221.90 | 0.3716 | 928.0 | 734.2 | |
| 0.00 | 1.81 | 0.00 | 0.96 | -23.64 | 180.30 | 13.67 | 217.15 | 0.3600 | -726.0 | -572.9 | |
| 0.00 | 0.78 | 0.00 | 0.41 | -23.59 | 179.99 | 13.36 | 216.65 | 0.3564 | -815.0 | -678.4 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -23.81 | 179.55 | 12.92 | 215.35 | 0.3551 | -917.0 | -741.1 | |
| 0.00 | 1.81 | 0.00 | 0.96 | -24.63 | 179.46 | 12.83 | 213.79 | 0.3647 | -868.0 | -711.7 | |
| 0.00 | 1.30 | 0.00 | 0.69 | -24.94 | 179.46 | 12.83 | 213.27 | 0.3688 | -927.0 | -710.9 | |
| 0.00 | 2.42 | 0.00 | 1.29 | -24.82 | 179.25 | 12.62 | 213.04 | 0.3653 | -997.0 | -782.5 | |
| 0.00 | 4.75 | 0.00 | 2.51 | -23.52 | 179.02 | 12.39 | 214.79 | 0.3463 | -1114.0 | -837.8 | |
| 0.00 | 0.78 | 0.00 | 0.41 | -24.28 | 178.53 | 11.90 | 212.45 | 0.3518 | -655.0 | -517.2 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -25.92 | 177.85 | 11.22 | 208.48 | 0.3686 | -714.0 | -548.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
