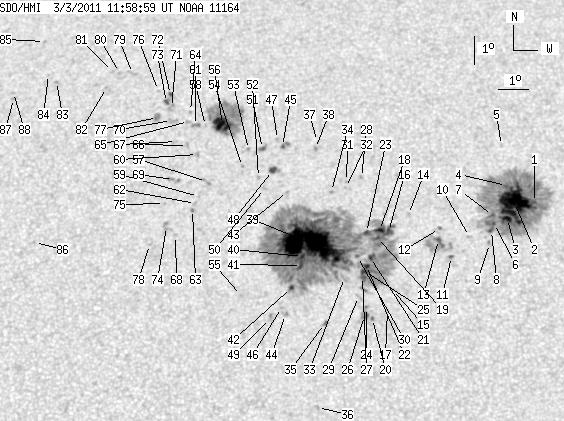

SDO HMI 2011-03-03 11:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 230.88 | 1342.99 | 135.16 | 786.14 | 24.75 | 164.10 | -1.43 | 2.40 | 0.5344 | 178.4 | 111.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-03-03 11:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.30 | 337.95 | 0.76 | 199.13 | 25.38 | 169.99 | 4.46 | 352.57 | 0.5452 | -822.7 | -374.3 | |
| 53.01 | -1.00 | 31.24 | -1.00 | 25.37 | 169.33 | 3.80 | 353.66 | 0.5440 | -1115.7 | 999999 | |
| 4.06 | -1.00 | 2.38 | -1.00 | 24.81 | 169.08 | 3.55 | 353.95 | 0.5353 | -1363.3 | 999999 | |
| 0.95 | -1.00 | 0.56 | -1.00 | 25.97 | 169.09 | 3.55 | 354.19 | 0.5524 | -497.3 | 999999 | |
| 0.00 | 1.73 | 0.00 | 1.04 | 27.41 | 168.96 | 3.43 | 354.66 | 0.5728 | -525.0 | -356.5 | |
| 0.86 | -1.00 | 0.50 | -1.00 | 24.63 | 168.65 | 3.12 | 354.64 | 0.5321 | -952.2 | 999999 | |
| 1.73 | -1.00 | 1.01 | -1.00 | 24.91 | 168.59 | 3.06 | 354.80 | 0.5361 | -612.5 | 999999 | |
| 1.99 | -1.00 | 1.16 | -1.00 | 24.38 | 168.55 | 3.02 | 354.78 | 0.5283 | -884.8 | 999999 | |
| 0.00 | 1.73 | 0.00 | 1.00 | 23.93 | 168.47 | 2.94 | 354.82 | 0.5214 | -855.0 | -706.2 | |
| 0.00 | 1.38 | 0.00 | 0.80 | 24.17 | 167.83 | 2.29 | 355.99 | 0.5242 | 389.0 | 275.2 | |
| 0.00 | 1.55 | 0.00 | 0.90 | 23.47 | 167.23 | 1.70 | 356.95 | 0.5133 | -929.0 | -781.7 | |
| 0.00 | 1.21 | 0.00 | 0.70 | 24.44 | 166.85 | 1.32 | 357.72 | 0.5276 | -561.0 | -532.9 | |
| 1.90 | 24.52 | 1.10 | 14.19 | 24.06 | 166.81 | 1.28 | 357.75 | 0.5218 | -767.2 | -432.3 | |
| 0.00 | 1.73 | 0.00 | 1.01 | 24.93 | 165.84 | 0.31 | 359.48 | 0.5344 | -460.0 | -359.0 | |
| 0.00 | 1.30 | 0.00 | 0.74 | 22.33 | 165.32 | -0.21 | 0.40 | 0.4954 | -551.0 | -417.3 | |
| 2.42 | 756.62 | 1.41 | 437.70 | 24.34 | 165.19 | -0.35 | 0.60 | 0.5256 | -838.8 | 412.2 | |
| 0.00 | 0.69 | 0.00 | 0.39 | 21.65 | 165.16 | -0.37 | 0.72 | 0.4850 | -688.0 | -531.4 | |
| 3.28 | -16.00 | 1.91 | -16.00 | 24.37 | 164.89 | -0.64 | 1.11 | 0.5262 | -552.0 | 999999 | |
| 0.60 | -16.00 | 0.35 | -16.00 | 24.13 | 164.83 | -0.70 | 1.24 | 0.5226 | -383.4 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.68 | 21.35 | 164.68 | -0.85 | 1.65 | 0.4805 | -795.0 | -768.6 | |
| 2.50 | -16.00 | 1.44 | -16.00 | 23.44 | 164.61 | -0.93 | 1.67 | 0.5122 | 801.1 | 999999 | |
| 1.99 | -16.00 | 1.14 | -16.00 | 23.16 | 164.48 | -1.06 | 1.92 | 0.5081 | 991.2 | 999999 | |
| 2.50 | -16.00 | 1.46 | -16.00 | 24.30 | 164.47 | -1.06 | 1.85 | 0.5253 | 420.8 | 999999 | |
| 0.00 | 1.64 | 0.00 | 0.93 | 21.72 | 164.49 | -1.04 | 2.00 | 0.4863 | -627.0 | -568.7 | |
| 3.54 | -16.00 | 2.03 | -16.00 | 22.95 | 164.42 | -1.12 | 2.05 | 0.5051 | 944.4 | 999999 | |
| 0.00 | 5.96 | 0.00 | 3.36 | 21.45 | 164.43 | -1.11 | 2.14 | 0.4822 | -924.0 | -838.5 | |
| 1.81 | -16.00 | 1.04 | -16.00 | 22.78 | 164.35 | -1.18 | 2.18 | 0.5025 | 1020.5 | 999999 | |
| 0.00 | 1.55 | 0.00 | 0.92 | 26.25 | 164.29 | -1.25 | 2.03 | 0.5540 | 680.0 | 516.9 | |
| 0.00 | 2.33 | 0.00 | 1.32 | 22.10 | 164.23 | -1.30 | 2.46 | 0.4922 | 416.0 | 403.0 | |
| 1.21 | -16.00 | 0.70 | -16.00 | 23.47 | 164.18 | -1.35 | 2.42 | 0.5130 | 606.3 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.61 | 26.11 | 163.79 | -1.74 | 2.85 | 0.5523 | 625.0 | 442.7 | |
| 0.00 | 0.95 | 0.00 | 0.56 | 25.89 | 163.76 | -1.77 | 2.92 | 0.5492 | 736.0 | 607.5 | |
| 0.00 | 4.66 | 0.00 | 2.67 | 22.75 | 163.77 | -1.76 | 3.25 | 0.5024 | 495.0 | 509.9 | |
| 0.00 | 1.47 | 0.00 | 0.87 | 25.75 | 163.30 | -2.23 | 3.69 | 0.5475 | 727.0 | 535.9 | |
| 0.00 | 2.50 | 0.00 | 1.41 | 21.18 | 163.15 | -2.38 | 4.65 | 0.4792 | -829.0 | -632.3 | |
| 0.00 | 1.47 | 0.00 | 0.81 | 18.38 | 162.98 | -2.56 | 5.60 | 0.4360 | 770.0 | 587.2 | |
| 0.00 | 0.35 | 0.00 | 0.21 | 27.55 | 162.80 | -2.74 | 4.25 | 0.5740 | 582.0 | 566.5 | |
| 0.00 | 1.81 | 0.00 | 1.09 | 27.30 | 162.73 | -2.80 | 4.38 | 0.5705 | 775.0 | 712.6 | |
| 112.07 | -16.00 | 64.95 | -16.00 | 23.93 | 162.65 | -2.88 | 5.08 | 0.5214 | 1245.6 | 999999 | |
| 1.90 | -16.00 | 1.10 | -16.00 | 23.48 | 162.40 | -3.13 | 5.61 | 0.5150 | 1232.6 | 999999 | |
| 1.90 | -16.00 | 1.09 | -16.00 | 23.17 | 162.38 | -3.16 | 5.72 | 0.5104 | 1232.8 | 999999 | |
| 1.99 | -16.00 | 1.13 | -16.00 | 22.42 | 162.07 | -3.46 | 6.44 | 0.4996 | 1041.7 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.61 | 25.76 | 161.85 | -3.69 | 6.07 | 0.5495 | 636.0 | 539.0 | |
| 0.00 | 3.28 | 0.00 | 1.86 | 21.50 | 161.90 | -3.63 | 7.00 | 0.4860 | 180.0 | 304.8 | |
| 1.04 | 4.49 | 0.63 | 2.71 | 27.38 | 161.63 | -3.91 | 6.09 | 0.5731 | 751.8 | 646.4 | |
| 0.00 | 1.30 | 0.00 | 0.73 | 21.74 | 161.77 | -3.77 | 7.19 | 0.4898 | 787.0 | 570.9 | |
| 0.00 | 1.64 | 0.00 | 0.99 | 27.63 | 161.45 | -4.08 | 6.30 | 0.5770 | 623.0 | 500.7 | |
| 3.71 | 5.96 | 2.22 | 3.56 | 26.52 | 161.32 | -4.21 | 6.75 | 0.5612 | 903.1 | 624.9 | |
| 0.00 | 3.28 | 0.00 | 1.86 | 21.37 | 161.43 | -4.11 | 7.94 | 0.4849 | 372.0 | 377.5 | |
| 0.00 | 1.99 | 0.00 | 1.18 | 25.88 | 161.08 | -4.45 | 7.29 | 0.5524 | 645.0 | 512.4 | |
| 2.33 | 3.54 | 1.41 | 2.14 | 27.31 | 160.96 | -4.58 | 7.13 | 0.5732 | 767.4 | 613.0 | |
| 0.00 | 1.38 | 0.00 | 0.82 | 26.27 | 160.87 | -4.67 | 7.54 | 0.5585 | 699.0 | 486.4 | |
| 0.00 | 1.55 | 0.00 | 0.94 | 27.28 | 160.49 | -5.04 | 7.86 | 0.5737 | 63.0 | -12.1 | |
| 0.00 | 1.04 | 0.00 | 0.62 | 26.67 | 160.32 | -5.22 | 8.30 | 0.5653 | 755.0 | 643.8 | |
| 0.00 | 1.21 | 0.00 | 0.69 | 22.16 | 160.47 | -5.07 | 9.47 | 0.4990 | 713.0 | 557.4 | |
| 16.58 | 86.17 | 10.14 | 52.84 | 28.20 | 159.56 | -5.97 | 8.99 | 0.5885 | -1030.7 | -150.8 | |
| 0.00 | 3.37 | 0.00 | 2.01 | 26.15 | 159.14 | -6.39 | 10.31 | 0.5607 | 859.0 | 655.7 | |
| 0.00 | 0.86 | 0.00 | 0.53 | 28.17 | 158.99 | -6.54 | 9.85 | 0.5895 | -767.0 | -638.6 | |
| 0.00 | 0.86 | 0.00 | 0.51 | 25.62 | 158.90 | -6.63 | 10.88 | 0.5537 | 660.0 | 473.4 | |
| 0.00 | 2.68 | 0.00 | 1.62 | 27.12 | 158.78 | -6.75 | 10.52 | 0.5753 | -770.0 | -463.7 | |
| 0.00 | 3.19 | 0.00 | 1.96 | 28.18 | 158.65 | -6.88 | 10.35 | 0.5904 | -751.0 | -636.9 | |
| 0.00 | 1.73 | 0.00 | 1.02 | 25.38 | 158.82 | -6.71 | 11.11 | 0.5505 | 602.0 | 565.7 | |
| 0.00 | 1.12 | 0.00 | 0.66 | 25.17 | 158.73 | -6.80 | 11.33 | 0.5477 | 824.0 | 729.2 | |
| 0.00 | 1.04 | 0.00 | 0.64 | 28.70 | 158.44 | -7.09 | 10.47 | 0.5980 | -489.0 | -367.1 | |
| 0.00 | 2.16 | 0.00 | 1.33 | 28.33 | 158.40 | -7.13 | 10.66 | 0.5931 | -648.0 | -508.7 | |
| 0.00 | 1.64 | 0.00 | 1.00 | 27.46 | 158.43 | -7.11 | 10.94 | 0.5809 | -768.0 | -592.8 | |
| 0.00 | 0.86 | 0.00 | 0.53 | 27.61 | 158.04 | -7.49 | 11.45 | 0.5841 | -585.0 | -485.0 | |
| 0.00 | 1.73 | 0.00 | 1.01 | 24.26 | 158.22 | -7.31 | 12.54 | 0.5363 | 747.0 | 581.2 | |
| 0.00 | 4.92 | 0.00 | 2.95 | 26.24 | 158.03 | -7.50 | 12.00 | 0.5650 | 562.0 | 469.0 | |
| 0.00 | 4.14 | 0.00 | 2.55 | 28.38 | 157.82 | -7.71 | 11.49 | 0.5953 | -710.0 | -594.7 | |
| 0.00 | 3.11 | 0.00 | 1.92 | 28.85 | 157.78 | -7.75 | 11.36 | 0.6019 | -208.0 | -264.6 | |
| 1.47 | 6.13 | 0.91 | 3.81 | 29.34 | 157.71 | -7.82 | 11.28 | 0.6087 | 613.9 | 300.1 | |
| 2.24 | -72.00 | 1.39 | -72.00 | 29.04 | 157.60 | -7.94 | 11.55 | 0.6050 | -530.5 | 999999 | |
| 0.00 | 4.92 | 0.00 | 2.90 | 24.58 | 157.91 | -7.63 | 12.92 | 0.5419 | 507.0 | 668.7 | |
| 0.00 | 0.86 | 0.00 | 0.51 | 25.39 | 157.79 | -7.74 | 12.75 | 0.5538 | -460.0 | -338.7 | |
| 0.00 | 1.21 | 0.00 | 0.76 | 29.49 | 157.29 | -8.25 | 11.82 | 0.6120 | -586.0 | -471.0 | |
| 0.00 | 5.44 | 0.00 | 3.36 | 28.50 | 157.33 | -8.20 | 12.14 | 0.5983 | -802.0 | -608.8 | |
| 0.00 | 0.86 | 0.00 | 0.51 | 23.96 | 157.39 | -8.15 | 14.07 | 0.5348 | 580.0 | 492.5 | |
| 0.00 | 3.54 | 0.00 | 2.24 | 30.15 | 156.33 | -9.21 | 12.87 | 0.6235 | -760.0 | -597.1 | |
| 0.00 | 1.64 | 0.00 | 1.04 | 30.20 | 155.87 | -9.67 | 13.46 | 0.6256 | -707.0 | -530.8 | |
| 0.00 | 1.21 | 0.00 | 0.77 | 30.24 | 155.62 | -9.91 | 13.78 | 0.6269 | -703.0 | -544.4 | |
| 0.00 | 0.69 | 0.00 | 0.43 | 29.65 | 155.47 | -10.06 | 14.24 | 0.6196 | -688.0 | -593.6 | |
| 0.00 | 1.64 | 0.00 | 1.04 | 29.92 | 153.70 | -11.84 | 16.47 | 0.6295 | -705.0 | -603.2 | |
| 0.00 | 0.78 | 0.00 | 0.50 | 30.19 | 153.38 | -12.15 | 16.74 | 0.6342 | -543.0 | -487.0 | |
| 0.00 | 1.21 | 0.00 | 0.79 | 31.44 | 153.08 | -12.46 | 16.48 | 0.6513 | -763.0 | -582.6 | |
| 0.00 | 0.86 | 0.00 | 0.51 | 24.13 | 153.57 | -11.96 | 20.07 | 0.5534 | 546.0 | 445.8 | |
| 0.00 | 2.07 | 0.00 | 1.32 | 29.33 | 152.26 | -13.27 | 18.66 | 0.6278 | -816.0 | -575.0 | |
| 0.00 | 1.30 | 0.00 | 0.82 | 29.55 | 152.23 | -13.30 | 18.57 | 0.6308 | -687.0 | -526.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
