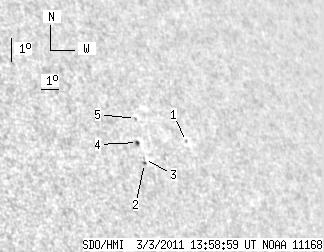

SDO HMI 2011-03-03 13:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.29 | 5.52 | 1.18 | 5.12 | 24.01 | 214.11 | 49.68 | 304.46 | 0.8467 | 58.1 | 61.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-03-03 13:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 1.10 | 24.39 | 216.17 | 51.73 | 303.90 | 0.8636 | -486.0 | -359.8 | |
| 0.00 | 1.04 | 0.00 | 0.94 | 23.36 | 213.46 | 49.03 | 304.09 | 0.8391 | 449.0 | 481.8 | |
| 0.00 | 1.12 | 0.00 | 1.02 | 23.50 | 213.53 | 49.10 | 304.20 | 0.8403 | 409.0 | 391.3 | |
| 1.29 | 1.55 | 1.18 | 1.42 | 24.08 | 213.48 | 49.05 | 304.84 | 0.8423 | 374.5 | 352.2 | |
| 0.00 | 0.69 | 0.00 | 0.64 | 24.93 | 213.84 | 49.40 | 305.57 | 0.8486 | -513.0 | -464.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
