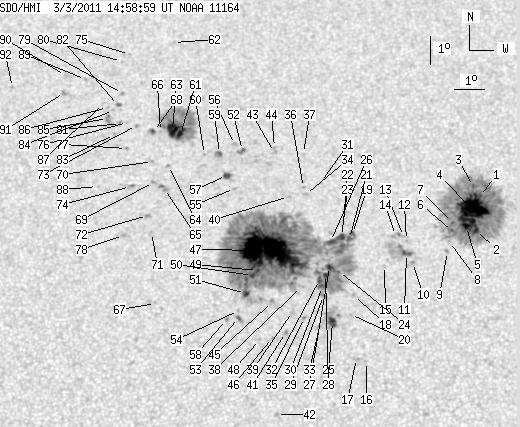

SDO HMI 2011-03-03 14:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 247.37 | 1321.26 | 144.63 | 772.27 | 24.63 | 164.19 | 0.31 | 359.45 | 0.5321 | 140.5 | 113.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-03-03 14:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.50 | 322.38 | 1.49 | 190.38 | 25.85 | 169.59 | 5.70 | 350.68 | 0.5546 | -720.7 | -380.4 | |
| 3.88 | -1.00 | 2.28 | -1.00 | 24.65 | 169.40 | 5.52 | 350.60 | 0.5368 | -1161.4 | 999999 | |
| 1.55 | -1.00 | 0.93 | -1.00 | 26.20 | 169.41 | 5.52 | 351.08 | 0.5593 | -155.1 | 999999 | |
| 51.36 | -1.00 | 30.35 | -1.00 | 25.38 | 169.33 | 5.45 | 350.94 | 0.5474 | -1127.0 | 999999 | |
| 5.61 | -1.00 | 3.29 | -1.00 | 24.78 | 169.11 | 5.23 | 351.12 | 0.5381 | -1379.0 | 999999 | |
| 0.60 | -1.00 | 0.35 | -1.00 | 24.60 | 168.64 | 4.76 | 351.85 | 0.5345 | -993.3 | 999999 | |
| 1.21 | -1.00 | 0.71 | -1.00 | 24.92 | 168.66 | 4.77 | 351.92 | 0.5391 | -629.6 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.55 | 24.25 | 168.53 | 4.65 | 351.94 | 0.5291 | -328.0 | -340.3 | |
| 0.00 | 1.81 | 0.00 | 1.05 | 23.90 | 168.45 | 4.57 | 351.97 | 0.5238 | -923.0 | -692.7 | |
| 0.00 | 1.64 | 0.00 | 0.95 | 23.51 | 167.30 | 3.42 | 353.89 | 0.5159 | -1080.0 | -892.8 | |
| 3.45 | 27.36 | 2.00 | 15.86 | 23.82 | 167.12 | 3.23 | 354.29 | 0.5202 | -1003.4 | -306.6 | |
| 0.00 | 0.78 | 0.00 | 0.45 | 24.27 | 167.13 | 3.24 | 354.36 | 0.5269 | -809.0 | -626.9 | |
| 0.00 | 1.12 | 0.00 | 0.65 | 24.41 | 167.03 | 3.15 | 354.55 | 0.5289 | -652.0 | -520.1 | |
| 0.00 | 3.97 | 0.00 | 2.31 | 24.44 | 166.77 | 2.89 | 355.01 | 0.5290 | -432.0 | -501.8 | |
| 0.00 | 0.78 | 0.00 | 0.45 | 23.40 | 166.39 | 2.51 | 355.49 | 0.5130 | -567.0 | -416.1 | |
| 0.00 | 0.60 | 0.00 | 0.34 | 20.13 | 165.77 | 1.88 | 356.16 | 0.4624 | 571.0 | 550.3 | |
| 0.00 | 2.50 | 0.00 | 1.40 | 20.23 | 165.45 | 1.57 | 356.82 | 0.4637 | 659.0 | 517.6 | |
| 0.00 | 1.90 | 0.00 | 1.08 | 22.36 | 165.38 | 1.49 | 357.21 | 0.4963 | -662.0 | -494.4 | |
| 2.16 | 746.17 | 1.26 | 431.35 | 24.51 | 165.37 | 1.48 | 357.43 | 0.5286 | -605.0 | 400.3 | |
| 0.00 | 0.95 | 0.00 | 0.54 | 21.71 | 165.27 | 1.39 | 357.33 | 0.4864 | -747.0 | -546.4 | |
| 2.59 | -19.00 | 1.51 | -19.00 | 24.33 | 165.27 | 1.38 | 357.59 | 0.5259 | -818.1 | 999999 | |
| 0.00 | 1.38 | 0.00 | 0.81 | 24.93 | 165.08 | 1.19 | 357.97 | 0.5346 | -407.0 | -327.6 | |
| 3.54 | -19.00 | 2.06 | -19.00 | 24.40 | 165.01 | 1.12 | 358.05 | 0.5268 | -571.7 | 999999 | |
| 0.95 | -19.00 | 0.55 | -19.00 | 23.19 | 164.90 | 1.02 | 358.15 | 0.5085 | 589.7 | 999999 | |
| 5.09 | 19.77 | 2.88 | 11.18 | 21.47 | 164.70 | 0.81 | 358.43 | 0.4824 | -928.3 | -335.0 | |
| 3.02 | -19.00 | 1.75 | -19.00 | 24.23 | 164.65 | 0.76 | 358.67 | 0.5240 | 351.2 | 999999 | |
| 2.76 | -19.00 | 1.59 | -19.00 | 23.36 | 164.61 | 0.73 | 358.69 | 0.5110 | 904.3 | 999999 | |
| 1.90 | -19.00 | 1.09 | -19.00 | 23.08 | 164.48 | 0.60 | 358.91 | 0.5068 | 922.6 | 999999 | |
| 0.00 | 2.93 | 0.00 | 1.67 | 22.36 | 164.41 | 0.53 | 359.01 | 0.4958 | 890.0 | 767.1 | |
| 2.68 | -19.00 | 1.53 | -19.00 | 22.67 | 164.38 | 0.50 | 359.08 | 0.5005 | 991.5 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.56 | 26.31 | 164.33 | 0.45 | 359.28 | 0.5546 | 609.0 | 468.5 | |
| 2.93 | -19.00 | 1.68 | -19.00 | 22.91 | 164.29 | 0.40 | 359.26 | 0.5041 | 1017.4 | 999999 | |
| 0.00 | 1.81 | 0.00 | 1.02 | 21.30 | 164.28 | 0.40 | 359.23 | 0.4797 | -756.0 | -634.2 | |
| 0.00 | 1.99 | 0.00 | 1.17 | 25.88 | 163.83 | -0.05 | 0.08 | 0.5483 | 533.0 | 496.6 | |
| 0.00 | 1.47 | 0.00 | 0.83 | 21.61 | 163.80 | -0.08 | 0.16 | 0.4843 | -672.0 | -527.1 | |
| 0.00 | 1.55 | 0.00 | 0.92 | 26.13 | 163.77 | -0.12 | 0.19 | 0.5520 | 558.0 | 452.7 | |
| 0.00 | 0.60 | 0.00 | 0.36 | 27.35 | 163.77 | -0.12 | 0.19 | 0.5697 | 548.0 | 471.9 | |
| 0.00 | 2.07 | 0.00 | 1.18 | 22.67 | 163.71 | -0.18 | 0.33 | 0.5004 | 751.0 | 664.9 | |
| 0.00 | 2.16 | 0.00 | 1.22 | 21.81 | 163.42 | -0.47 | 0.89 | 0.4875 | -38.0 | -27.7 | |
| 0.00 | 1.38 | 0.00 | 0.82 | 25.81 | 163.27 | -0.61 | 1.01 | 0.5474 | 658.0 | 534.5 | |
| 0.00 | 2.07 | 0.00 | 1.17 | 21.10 | 163.20 | -0.69 | 1.35 | 0.4766 | -874.0 | -745.5 | |
| 0.00 | 1.21 | 0.00 | 0.66 | 18.37 | 162.93 | -0.96 | 2.10 | 0.4341 | 795.0 | 620.9 | |
| 0.00 | 1.47 | 0.00 | 0.88 | 27.39 | 162.79 | -1.09 | 1.70 | 0.5705 | 741.0 | 598.2 | |
| 0.00 | 1.29 | 0.00 | 0.78 | 27.57 | 162.79 | -1.09 | 1.70 | 0.5731 | 558.0 | 507.5 | |
| 0.00 | 2.76 | 0.00 | 1.57 | 22.16 | 162.78 | -1.11 | 2.09 | 0.4930 | 682.0 | 578.3 | |
| 0.00 | 0.86 | 0.00 | 0.48 | 20.93 | 162.78 | -1.10 | 2.17 | 0.4742 | -619.0 | -458.3 | |
| 113.67 | -19.00 | 65.80 | -19.00 | 23.91 | 162.60 | -1.29 | 2.27 | 0.5196 | 1263.9 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.63 | 20.87 | 162.37 | -1.51 | 3.00 | 0.4735 | -579.0 | -326.0 | |
| 0.95 | -19.00 | 0.55 | -19.00 | 23.22 | 162.28 | -1.60 | 2.90 | 0.5094 | 1215.9 | 999999 | |
| 1.90 | -19.00 | 1.09 | -19.00 | 23.05 | 162.12 | -1.76 | 3.21 | 0.5070 | 1095.5 | 999999 | |
| 3.63 | -19.00 | 2.07 | -19.00 | 22.43 | 161.91 | -1.98 | 3.69 | 0.4978 | 1021.7 | 999999 | |
| 1.73 | 3.63 | 1.04 | 2.18 | 27.46 | 161.72 | -2.16 | 3.37 | 0.5722 | 707.6 | 653.5 | |
| 1.29 | 3.28 | 0.73 | 1.85 | 21.62 | 161.69 | -2.19 | 4.22 | 0.4856 | 805.0 | 565.8 | |
| 0.00 | 0.95 | 0.00 | 0.54 | 21.85 | 161.69 | -2.20 | 4.18 | 0.4892 | 775.0 | 657.5 | |
| 0.00 | 1.55 | 0.00 | 0.92 | 26.10 | 161.48 | -2.40 | 3.92 | 0.5528 | 655.0 | 548.5 | |
| 0.00 | 2.07 | 0.00 | 1.25 | 27.68 | 161.45 | -2.44 | 3.76 | 0.5756 | 494.0 | 455.2 | |
| 3.63 | 5.09 | 2.16 | 3.04 | 26.57 | 161.21 | -2.68 | 4.30 | 0.5598 | 928.5 | 626.2 | |
| 0.00 | 1.21 | 0.00 | 0.68 | 21.55 | 161.31 | -2.57 | 4.96 | 0.4851 | 852.0 | 666.1 | |
| 2.24 | 3.97 | 1.35 | 2.39 | 27.36 | 160.95 | -2.93 | 4.58 | 0.5715 | 766.1 | 698.2 | |
| 0.00 | 0.86 | 0.00 | 0.52 | 27.33 | 160.45 | -3.43 | 5.36 | 0.5717 | -206.0 | -167.2 | |
| 5.70 | 87.52 | 3.47 | 53.54 | 28.10 | 159.62 | -4.27 | 6.48 | 0.5838 | -1040.9 | -127.6 | |
| 0.00 | 1.21 | 0.00 | 0.77 | 31.50 | 159.22 | -4.66 | 6.32 | 0.6313 | -588.0 | -513.0 | |
| 11.65 | -61.00 | 7.11 | -61.00 | 28.25 | 159.34 | -4.54 | 6.86 | 0.5864 | -958.4 | 999999 | |
| 0.00 | 1.47 | 0.00 | 0.88 | 26.94 | 159.26 | -4.62 | 7.30 | 0.5680 | 712.0 | 518.8 | |
| 0.00 | 5.09 | 0.00 | 3.03 | 26.12 | 159.16 | -4.72 | 7.67 | 0.5564 | 726.0 | 668.2 | |
| 0.00 | 0.95 | 0.00 | 0.58 | 28.18 | 158.94 | -4.95 | 7.48 | 0.5861 | -831.0 | -682.0 | |
| 0.00 | 0.35 | 0.00 | 0.20 | 22.11 | 159.02 | -4.87 | 9.12 | 0.4979 | 443.0 | 282.5 | |
| 1.73 | 2.33 | 1.05 | 1.42 | 28.18 | 158.70 | -5.18 | 7.83 | 0.5866 | -765.2 | -559.8 | |
| 0.00 | 1.99 | 0.00 | 1.19 | 26.34 | 158.79 | -5.10 | 8.20 | 0.5603 | 537.0 | 487.0 | |
| 0.00 | 1.29 | 0.00 | 0.78 | 27.09 | 158.72 | -5.17 | 8.10 | 0.5712 | -663.0 | -515.3 | |
| 0.00 | 0.86 | 0.00 | 0.51 | 24.57 | 158.79 | -5.09 | 8.71 | 0.5347 | 715.0 | 585.0 | |
| 0.00 | 2.42 | 0.00 | 1.42 | 25.17 | 158.64 | -5.25 | 8.79 | 0.5438 | 770.0 | 658.2 | |
| 0.00 | 1.21 | 0.00 | 0.74 | 28.41 | 158.11 | -5.77 | 8.64 | 0.5910 | -745.0 | -609.6 | |
| 0.00 | 3.54 | 0.00 | 2.11 | 26.21 | 158.03 | -5.86 | 9.45 | 0.5601 | 520.0 | 418.2 | |
| 0.00 | 0.43 | 0.00 | 0.27 | 31.06 | 157.71 | -6.17 | 8.47 | 0.6281 | -615.0 | -578.8 | |
| 0.00 | 0.86 | 0.00 | 0.53 | 28.52 | 157.80 | -6.09 | 9.07 | 0.5933 | -594.0 | -479.7 | |
| 0.00 | 1.29 | 0.00 | 0.79 | 27.57 | 157.82 | -6.07 | 9.33 | 0.5800 | -655.0 | -551.9 | |
| 0.00 | 2.50 | 0.00 | 1.47 | 24.48 | 157.88 | -6.00 | 10.28 | 0.5356 | 865.0 | 644.8 | |
| 0.00 | 1.55 | 0.00 | 0.97 | 29.60 | 157.56 | -6.32 | 9.09 | 0.6086 | 562.0 | 460.1 | |
| 0.00 | 0.78 | 0.00 | 0.49 | 30.80 | 157.45 | -6.44 | 8.89 | 0.6251 | -621.0 | -522.0 | |
| 0.00 | 1.64 | 0.00 | 1.01 | 28.49 | 157.56 | -6.32 | 9.42 | 0.5933 | -718.0 | -618.9 | |
| 1.47 | 2.42 | 0.91 | 1.50 | 29.15 | 157.45 | -6.43 | 9.38 | 0.6027 | -579.6 | -553.7 | |
| 0.00 | 1.21 | 0.00 | 0.74 | 28.09 | 157.38 | -6.50 | 9.82 | 0.5882 | -703.0 | -599.7 | |
| 0.00 | 1.04 | 0.00 | 0.64 | 28.97 | 157.29 | -6.59 | 9.66 | 0.6006 | -467.0 | -465.9 | |
| 0.00 | 3.80 | 0.00 | 2.34 | 28.68 | 157.11 | -6.78 | 10.02 | 0.5970 | -825.0 | -695.0 | |
| 0.00 | 0.95 | 0.00 | 0.59 | 29.09 | 157.08 | -6.80 | 9.93 | 0.6027 | -625.0 | -499.0 | |
| 0.00 | 1.47 | 0.00 | 0.91 | 29.24 | 156.93 | -6.95 | 10.09 | 0.6051 | -536.0 | -460.4 | |
| 0.00 | 0.69 | 0.00 | 0.41 | 26.22 | 156.92 | -6.96 | 11.17 | 0.5632 | 404.0 | 363.0 | |
| 0.00 | 1.12 | 0.00 | 0.71 | 30.14 | 156.25 | -7.64 | 10.74 | 0.6191 | -773.0 | -637.4 | |
| 0.00 | 0.69 | 0.00 | 0.44 | 30.31 | 155.54 | -8.35 | 11.65 | 0.6231 | -699.0 | -623.1 | |
| 0.00 | 2.85 | 0.00 | 1.78 | 29.67 | 155.56 | -8.33 | 11.86 | 0.6146 | -741.0 | -610.3 | |
| 0.00 | 1.38 | 0.00 | 0.87 | 29.90 | 153.73 | -10.15 | 14.25 | 0.6232 | -774.0 | -640.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
