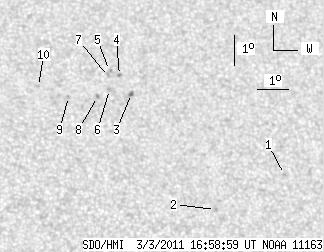

SDO HMI 2011-03-03 16:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.29 | 14.40 | 0.74 | 8.24 | 18.44 | 178.05 | 15.27 | 329.77 | 0.4998 | -597.3 | -491.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-03-03 16:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.29 | 0.00 | 0.75 | 16.41 | 182.84 | 20.06 | 320.11 | 0.5151 | -711.0 | -562.9 | |
| 0.00 | 1.55 | 0.00 | 0.88 | 15.18 | 180.47 | 17.69 | 322.01 | 0.4783 | 700.0 | 596.2 | |
| 1.29 | 2.16 | 0.74 | 1.24 | 18.86 | 178.08 | 15.30 | 330.18 | 0.5041 | -792.5 | -807.8 | |
| 0.00 | 1.64 | 0.00 | 0.94 | 19.45 | 177.74 | 14.96 | 331.32 | 0.5093 | -810.0 | -687.7 | |
| 0.00 | 1.55 | 0.00 | 0.89 | 19.60 | 177.43 | 14.65 | 331.97 | 0.5091 | -657.0 | -622.6 | |
| 0.00 | 1.47 | 0.00 | 0.84 | 18.97 | 177.37 | 14.59 | 331.44 | 0.5004 | -901.0 | -707.6 | |
| 0.00 | 1.29 | 0.00 | 0.74 | 19.40 | 177.38 | 14.60 | 331.86 | 0.5061 | -470.0 | -421.4 | |
| 0.00 | 1.38 | 0.00 | 0.79 | 18.73 | 176.96 | 14.18 | 331.87 | 0.4942 | -887.0 | -748.9 | |
| 0.00 | 0.95 | 0.00 | 0.54 | 18.70 | 176.02 | 13.24 | 333.44 | 0.4873 | -888.0 | -666.5 | |
| 0.00 | 1.12 | 0.00 | 0.63 | 19.00 | 175.08 | 12.30 | 335.37 | 0.4852 | -607.0 | -511.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
