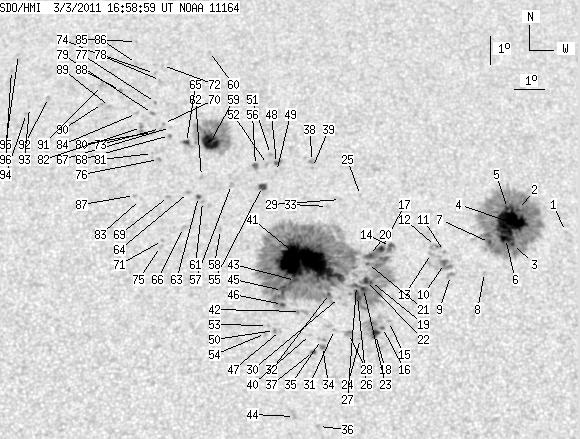

SDO HMI 2011-03-03 16:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 243.18 | 1326.75 | 142.06 | 776.46 | 24.65 | 164.00 | 1.22 | 357.86 | 0.5329 | 202.0 | 83.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-03-03 16:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.04 | 0.00 | 0.61 | 25.07 | 171.16 | 8.38 | 346.10 | 0.5514 | 237.0 | 217.0 | |
| 1.04 | 312.91 | 0.62 | 185.27 | 25.82 | 169.65 | 6.86 | 348.83 | 0.5573 | -761.9 | -390.8 | |
| 1.38 | -2.00 | 0.81 | -2.00 | 24.59 | 169.38 | 6.60 | 348.78 | 0.5388 | -1252.0 | 999999 | |
| 45.82 | -2.00 | 27.13 | -2.00 | 25.36 | 169.35 | 6.57 | 349.11 | 0.5499 | -1167.0 | 999999 | |
| 1.55 | -2.00 | 0.92 | -2.00 | 25.85 | 169.28 | 6.50 | 349.41 | 0.5567 | -836.2 | 999999 | |
| 6.64 | -2.00 | 3.91 | -2.00 | 24.79 | 169.16 | 6.38 | 349.22 | 0.5412 | -1322.6 | 999999 | |
| 1.98 | -2.00 | 1.16 | -2.00 | 24.64 | 168.63 | 5.84 | 350.05 | 0.5377 | -950.9 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.50 | 23.60 | 168.41 | 5.63 | 350.03 | 0.5218 | -840.0 | -674.4 | |
| 0.00 | 3.71 | 0.00 | 2.15 | 23.48 | 167.30 | 4.52 | 351.94 | 0.5175 | -863.0 | -800.3 | |
| 0.00 | 11.13 | 0.00 | 6.46 | 23.89 | 167.12 | 4.34 | 352.37 | 0.5233 | -1095.0 | -788.0 | |
| 0.00 | 1.21 | 0.00 | 0.70 | 24.31 | 167.14 | 4.35 | 352.46 | 0.5295 | -794.0 | -649.1 | |
| 0.00 | 5.61 | 0.00 | 3.27 | 24.48 | 166.85 | 4.07 | 353.00 | 0.5314 | -560.0 | -507.8 | |
| 0.00 | 2.50 | 0.00 | 1.46 | 24.24 | 166.71 | 3.93 | 353.17 | 0.5276 | -118.0 | -111.2 | |
| 3.37 | 740.09 | 1.96 | 427.90 | 24.47 | 165.38 | 2.59 | 355.52 | 0.5291 | -629.6 | 388.2 | |
| 0.00 | 1.21 | 0.00 | 0.69 | 21.88 | 165.26 | 2.48 | 355.28 | 0.4901 | -506.0 | -500.9 | |
| 1.47 | 31.41 | 0.83 | 17.79 | 21.68 | 165.07 | 2.28 | 355.62 | 0.4867 | -790.5 | -273.1 | |
| 2.85 | -14.00 | 1.66 | -14.00 | 24.40 | 165.08 | 2.30 | 356.02 | 0.5277 | -573.6 | 999999 | |
| 4.23 | -16.00 | 2.39 | -16.00 | 21.44 | 164.84 | 2.06 | 356.02 | 0.4828 | -995.6 | 999999 | |
| 1.29 | -14.00 | 0.74 | -14.00 | 23.25 | 164.70 | 1.92 | 356.52 | 0.5102 | 765.9 | 999999 | |
| 3.19 | -14.00 | 1.85 | -14.00 | 24.15 | 164.68 | 1.90 | 356.67 | 0.5237 | 376.2 | 999999 | |
| 1.38 | -14.00 | 0.80 | -14.00 | 23.88 | 164.62 | 1.83 | 356.76 | 0.5195 | 662.0 | 999999 | |
| 2.85 | -14.00 | 1.64 | -14.00 | 23.29 | 164.58 | 1.79 | 356.76 | 0.5106 | 844.7 | 999999 | |
| 1.55 | -14.00 | 0.89 | -14.00 | 23.01 | 164.47 | 1.69 | 356.91 | 0.5064 | 1021.1 | 999999 | |
| 0.00 | 1.81 | 0.00 | 1.02 | 21.30 | 164.36 | 1.58 | 356.93 | 0.4803 | -763.0 | -632.0 | |
| 0.00 | 1.04 | 0.00 | 0.62 | 26.27 | 164.42 | 1.64 | 357.34 | 0.5546 | 532.0 | 449.8 | |
| 5.35 | -14.00 | 3.06 | -14.00 | 22.77 | 164.28 | 1.50 | 357.24 | 0.5026 | 1087.8 | 999999 | |
| 1.81 | -14.00 | 1.04 | -14.00 | 23.11 | 164.25 | 1.47 | 357.33 | 0.5077 | 944.4 | 999999 | |
| 0.00 | 5.35 | 0.00 | 3.02 | 21.47 | 163.98 | 1.20 | 357.69 | 0.4826 | -784.0 | -614.7 | |
| 0.00 | 0.95 | 0.00 | 0.56 | 26.12 | 163.76 | 0.97 | 358.41 | 0.5522 | 675.0 | 522.9 | |
| 0.00 | 1.12 | 0.00 | 0.64 | 22.70 | 163.70 | 0.92 | 358.31 | 0.5011 | 816.0 | 630.9 | |
| 0.00 | 1.21 | 0.00 | 0.68 | 21.60 | 163.53 | 0.75 | 358.56 | 0.4844 | -411.0 | -270.5 | |
| 1.21 | -14.00 | 0.69 | -14.00 | 22.83 | 163.38 | 0.59 | 358.91 | 0.5031 | 1027.3 | 999999 | |
| 0.00 | 1.98 | 0.00 | 1.17 | 25.87 | 163.32 | 0.54 | 359.11 | 0.5484 | 638.0 | 444.7 | |
| 0.00 | 2.85 | 0.00 | 1.60 | 21.03 | 163.15 | 0.36 | 359.28 | 0.4755 | -887.0 | -795.6 | |
| 0.00 | 2.68 | 0.00 | 1.51 | 21.27 | 163.11 | 0.33 | 359.35 | 0.4791 | -452.0 | -464.0 | |
| 0.00 | 1.73 | 0.00 | 0.95 | 18.36 | 163.01 | 0.23 | 359.49 | 0.4338 | 692.0 | 606.5 | |
| 1.81 | 2.42 | 1.02 | 1.36 | 20.86 | 162.86 | 0.08 | 359.85 | 0.4728 | -737.8 | -658.7 | |
| 0.00 | 3.37 | 0.00 | 2.03 | 27.49 | 162.83 | 0.05 | 359.93 | 0.5717 | 722.0 | 618.5 | |
| 0.00 | 1.04 | 0.00 | 0.62 | 27.27 | 162.83 | 0.05 | 359.92 | 0.5686 | 671.0 | 507.8 | |
| 0.00 | 1.21 | 0.00 | 0.68 | 21.43 | 162.76 | -0.02 | 0.04 | 0.4817 | -628.0 | -406.4 | |
| 114.34 | -14.00 | 66.17 | -14.00 | 23.91 | 162.60 | -0.18 | 0.32 | 0.5192 | 1290.3 | 999999 | |
| 0.00 | 6.64 | 0.00 | 3.78 | 22.22 | 162.44 | -0.34 | 0.64 | 0.4937 | 512.0 | 641.0 | |
| 1.90 | -14.00 | 1.09 | -14.00 | 23.28 | 162.28 | -0.50 | 0.91 | 0.5098 | 1372.3 | 999999 | |
| 0.00 | 1.90 | 0.00 | 1.05 | 18.69 | 162.26 | -0.52 | 1.13 | 0.4391 | 732.0 | 523.0 | |
| 5.09 | -14.00 | 2.92 | -14.00 | 22.94 | 161.86 | -0.92 | 1.69 | 0.5048 | 1045.6 | 999999 | |
| 1.90 | -14.00 | 1.08 | -14.00 | 22.46 | 161.86 | -0.92 | 1.71 | 0.4975 | 995.0 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.73 | 21.57 | 161.81 | -0.98 | 1.88 | 0.4840 | 845.0 | 595.7 | |
| 1.64 | 3.28 | 0.99 | 1.98 | 27.42 | 161.62 | -1.16 | 1.81 | 0.5710 | 792.1 | 691.1 | |
| 0.00 | 1.38 | 0.00 | 0.83 | 27.13 | 161.63 | -1.15 | 1.82 | 0.5668 | 746.0 | 529.1 | |
| 0.00 | 1.55 | 0.00 | 0.88 | 21.57 | 161.61 | -1.17 | 2.25 | 0.4841 | 1036.0 | 922.6 | |
| 0.00 | 1.47 | 0.00 | 0.89 | 27.74 | 161.42 | -1.36 | 2.10 | 0.5758 | 633.0 | 476.9 | |
| 0.00 | 1.55 | 0.00 | 0.94 | 27.38 | 161.32 | -1.46 | 2.28 | 0.5706 | 577.0 | 504.2 | |
| 0.00 | 0.69 | 0.00 | 0.39 | 21.74 | 161.39 | -1.39 | 2.67 | 0.4869 | 609.0 | 555.8 | |
| 0.00 | 1.73 | 0.00 | 0.97 | 21.47 | 161.33 | -1.45 | 2.82 | 0.4828 | 866.0 | 672.5 | |
| 4.49 | 5.18 | 2.68 | 3.09 | 26.59 | 161.17 | -1.61 | 2.59 | 0.5593 | 834.8 | 654.4 | |
| 2.50 | 3.62 | 1.51 | 2.18 | 27.35 | 160.92 | -1.86 | 2.91 | 0.5704 | 780.2 | 751.5 | |
| 0.00 | 2.33 | 0.00 | 1.39 | 26.67 | 160.13 | -2.65 | 4.23 | 0.5613 | 799.0 | 572.3 | |
| 0.00 | 1.29 | 0.00 | 0.76 | 25.07 | 159.81 | -2.97 | 5.02 | 0.5384 | 752.0 | 576.5 | |
| 16.66 | 90.09 | 10.15 | 55.04 | 28.23 | 159.39 | -3.39 | 5.14 | 0.5845 | -1027.0 | -121.9 | |
| 0.00 | 1.04 | 0.00 | 0.66 | 31.59 | 159.24 | -3.55 | 4.81 | 0.6312 | -525.0 | -435.0 | |
| 0.00 | 1.47 | 0.00 | 0.87 | 26.07 | 159.19 | -3.59 | 5.86 | 0.5538 | 812.0 | 635.6 | |
| 0.00 | 1.12 | 0.00 | 0.67 | 26.96 | 159.13 | -3.66 | 5.78 | 0.5668 | 711.0 | 559.6 | |
| 1.38 | 1.90 | 0.82 | 1.13 | 26.25 | 159.05 | -3.73 | 6.04 | 0.5566 | 723.1 | 750.7 | |
| 0.00 | 1.73 | 0.00 | 1.03 | 26.39 | 158.71 | -4.07 | 6.55 | 0.5593 | 679.0 | 565.7 | |
| 2.16 | 7.59 | 1.32 | 4.62 | 28.20 | 158.58 | -4.20 | 6.36 | 0.5852 | -646.0 | -448.0 | |
| 0.00 | 2.93 | 0.00 | 1.73 | 25.15 | 158.59 | -4.19 | 7.05 | 0.5415 | 616.0 | 551.0 | |
| 0.00 | 0.78 | 0.00 | 0.48 | 28.76 | 158.01 | -4.77 | 7.08 | 0.5940 | -432.0 | -370.1 | |
| 0.35 | 1.21 | 0.21 | 0.74 | 28.46 | 157.99 | -4.79 | 7.18 | 0.5899 | -680.5 | -563.6 | |
| 0.00 | 1.90 | 0.00 | 1.13 | 26.26 | 158.05 | -4.73 | 7.64 | 0.5585 | 712.0 | 518.5 | |
| 0.00 | 1.04 | 0.00 | 0.64 | 28.91 | 157.77 | -5.02 | 7.40 | 0.5965 | -588.0 | -482.5 | |
| 0.00 | 1.04 | 0.00 | 0.61 | 24.70 | 157.92 | -4.87 | 8.29 | 0.5362 | 652.0 | 536.2 | |
| 0.00 | 0.95 | 0.00 | 0.60 | 31.08 | 157.62 | -5.16 | 7.09 | 0.6265 | -589.0 | -459.5 | |
| 0.00 | 1.04 | 0.00 | 0.64 | 28.72 | 157.67 | -5.11 | 7.58 | 0.5941 | -690.0 | -556.3 | |
| 0.00 | 1.47 | 0.00 | 0.92 | 30.51 | 157.58 | -5.20 | 7.28 | 0.6189 | -563.0 | -400.7 | |
| 0.00 | 1.64 | 0.00 | 0.96 | 24.49 | 157.86 | -4.92 | 8.45 | 0.5333 | 710.0 | 644.8 | |
| 0.00 | 1.81 | 0.00 | 1.10 | 27.59 | 157.66 | -5.12 | 7.90 | 0.5783 | -531.0 | -512.2 | |
| 0.00 | 1.55 | 0.00 | 0.97 | 29.69 | 157.45 | -5.33 | 7.66 | 0.6079 | 676.0 | 466.2 | |
| 0.00 | 0.86 | 0.00 | 0.55 | 30.78 | 157.36 | -5.42 | 7.52 | 0.6229 | -667.0 | -559.4 | |
| 0.00 | 2.16 | 0.00 | 1.34 | 29.28 | 157.37 | -5.41 | 7.88 | 0.6024 | -648.0 | -480.7 | |
| 0.00 | 2.07 | 0.00 | 1.27 | 28.58 | 157.41 | -5.37 | 8.01 | 0.5926 | -793.0 | -582.4 | |
| 0.00 | 0.86 | 0.00 | 0.52 | 27.81 | 157.45 | -5.34 | 8.16 | 0.5818 | -657.0 | -575.9 | |
| 0.00 | 3.97 | 0.00 | 2.44 | 28.77 | 157.02 | -5.76 | 8.52 | 0.5960 | -784.0 | -687.0 | |
| 0.00 | 0.43 | 0.00 | 0.26 | 26.16 | 157.13 | -5.66 | 9.14 | 0.5591 | 401.0 | 276.6 | |
| 0.00 | 1.55 | 0.00 | 0.96 | 29.29 | 156.82 | -5.96 | 8.66 | 0.6036 | -543.0 | -436.8 | |
| 0.00 | 0.78 | 0.00 | 0.50 | 32.01 | 156.65 | -6.13 | 8.16 | 0.6407 | -555.0 | -477.7 | |
| 0.00 | 1.55 | 0.00 | 0.99 | 31.17 | 156.71 | -6.08 | 8.30 | 0.6294 | -380.0 | -311.4 | |
| 0.00 | 1.21 | 0.00 | 0.72 | 26.31 | 156.92 | -5.86 | 9.42 | 0.5616 | 648.0 | 476.3 | |
| 0.00 | 1.04 | 0.00 | 0.65 | 30.16 | 156.22 | -6.57 | 9.26 | 0.6167 | -750.0 | -681.4 | |
| 0.00 | 1.81 | 0.00 | 1.13 | 29.56 | 155.88 | -6.90 | 9.92 | 0.6095 | -719.0 | -623.1 | |
| 0.00 | 1.47 | 0.00 | 0.92 | 29.68 | 155.63 | -7.15 | 10.23 | 0.6117 | -721.0 | -629.6 | |
| 0.00 | 3.88 | 0.00 | 2.45 | 30.35 | 155.54 | -7.24 | 10.12 | 0.6210 | -730.0 | -622.6 | |
| 0.00 | 1.55 | 0.00 | 0.98 | 29.94 | 153.74 | -9.04 | 12.73 | 0.6203 | -749.0 | -592.5 | |
| 0.00 | 1.29 | 0.00 | 0.81 | 29.58 | 153.11 | -9.67 | 13.73 | 0.6175 | -702.0 | -604.3 | |
| 0.00 | 1.47 | 0.00 | 0.92 | 29.36 | 153.03 | -9.75 | 13.94 | 0.6149 | -776.0 | -602.1 | |
| 0.00 | 0.95 | 0.00 | 0.61 | 31.59 | 152.52 | -10.26 | 13.65 | 0.6457 | -534.0 | -457.2 | |
| 0.00 | 1.21 | 0.00 | 0.78 | 30.99 | 152.34 | -10.45 | 14.14 | 0.6385 | -783.0 | -633.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
