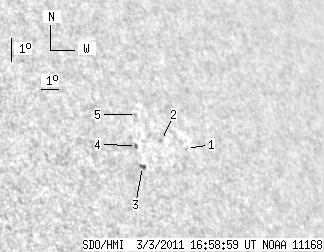

SDO HMI 2011-03-03 16:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.86 | 7.85 | 0.81 | 7.59 | 23.99 | 214.28 | 51.50 | 303.60 | 0.8603 | -70.8 | 26.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-03-03 16:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.29 | 0.00 | 1.32 | 24.22 | 216.24 | 53.46 | 302.97 | 0.8754 | -513.0 | -395.1 | |
| 0.00 | 1.47 | 0.00 | 1.45 | 24.36 | 214.97 | 52.19 | 303.67 | 0.8668 | -276.0 | -255.9 | |
| 0.86 | 2.76 | 0.81 | 2.59 | 23.31 | 213.39 | 50.61 | 303.28 | 0.8511 | 526.4 | 390.8 | |
| 0.00 | 1.55 | 0.00 | 1.47 | 24.03 | 213.47 | 50.69 | 304.01 | 0.8546 | 524.0 | 465.6 | |
| 0.00 | 0.78 | 0.00 | 0.76 | 25.16 | 214.11 | 51.33 | 304.90 | 0.8637 | -502.0 | -414.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
