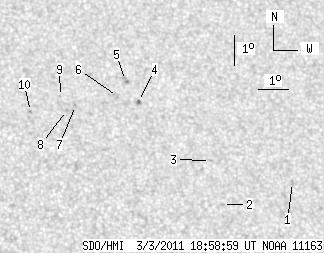

SDO HMI 2011-03-03 18:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.35 | 14.34 | 0.20 | 8.23 | 18.34 | 178.00 | 16.32 | 328.05 | 0.5069 | -498.7 | -482.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-03-03 18:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.47 | 0.00 | 0.85 | 16.42 | 182.93 | 21.25 | 318.50 | 0.5269 | -667.0 | -607.2 | |
| 0.00 | 1.12 | 0.00 | 0.64 | 15.60 | 180.54 | 18.86 | 320.79 | 0.4946 | 761.0 | 607.4 | |
| 0.00 | 0.95 | 0.00 | 0.55 | 17.02 | 180.29 | 18.61 | 322.97 | 0.5087 | 560.0 | 428.9 | |
| 0.35 | 1.47 | 0.20 | 0.85 | 18.86 | 178.12 | 16.44 | 328.38 | 0.5130 | -931.8 | -808.8 | |
| 0.00 | 3.54 | 0.00 | 2.05 | 19.55 | 177.76 | 16.09 | 329.65 | 0.5189 | -781.0 | -658.9 | |
| 0.00 | 1.47 | 0.00 | 0.84 | 19.00 | 177.45 | 15.77 | 329.58 | 0.5096 | -933.0 | -667.5 | |
| 0.00 | 1.04 | 0.00 | 0.59 | 18.66 | 176.05 | 14.37 | 331.49 | 0.4947 | -834.0 | -728.0 | |
| 0.00 | 1.21 | 0.00 | 0.69 | 18.48 | 175.74 | 14.06 | 331.83 | 0.4902 | -754.0 | -672.1 | |
| 0.00 | 0.86 | 0.00 | 0.49 | 18.94 | 175.59 | 13.91 | 332.55 | 0.4952 | -556.0 | -474.4 | |
| 0.00 | 1.21 | 0.00 | 0.68 | 18.41 | 174.58 | 12.90 | 333.77 | 0.4812 | -765.0 | -606.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
