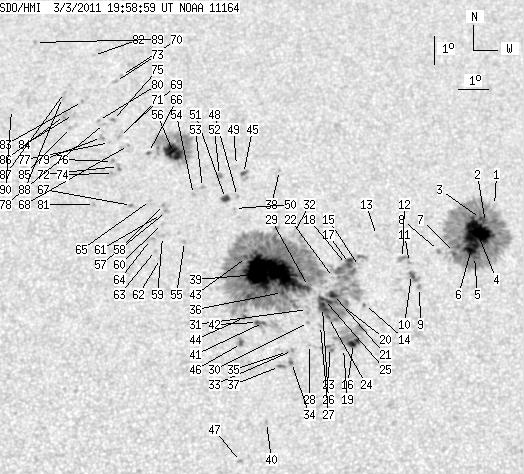

SDO HMI 2011-03-03 19:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 237.39 | 1313.52 | 138.82 | 768.90 | 24.56 | 164.09 | 2.96 | 354.89 | 0.5333 | 174.9 | 83.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-03-03 19:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.04 | 0.00 | 0.62 | 26.41 | 170.04 | 8.91 | 345.91 | 0.5721 | 68.0 | 73.7 | |
| 1.29 | 314.02 | 0.77 | 186.66 | 25.80 | 169.69 | 8.56 | 346.16 | 0.5624 | -646.6 | -384.9 | |
| 1.21 | -2.00 | 0.72 | -2.00 | 25.94 | 169.53 | 8.41 | 346.46 | 0.5638 | -567.4 | 999999 | |
| 41.33 | -2.00 | 24.60 | -2.00 | 25.44 | 169.40 | 8.27 | 346.45 | 0.5564 | -1126.2 | 999999 | |
| 2.50 | -2.00 | 1.47 | -2.00 | 24.59 | 169.24 | 8.11 | 346.30 | 0.5439 | -1280.6 | 999999 | |
| 11.39 | -2.00 | 6.73 | -2.00 | 24.87 | 169.16 | 8.03 | 346.56 | 0.5475 | -1287.3 | 999999 | |
| 1.12 | -2.00 | 0.66 | -2.00 | 24.72 | 168.59 | 7.46 | 347.42 | 0.5435 | -741.1 | 999999 | |
| 0.00 | 1.38 | 0.00 | 0.81 | 24.78 | 168.06 | 6.94 | 348.30 | 0.5428 | -757.0 | -691.9 | |
| 0.00 | 2.24 | 0.00 | 1.30 | 23.48 | 167.37 | 6.25 | 348.93 | 0.5220 | -928.0 | -854.3 | |
| 2.59 | 7.77 | 1.51 | 4.52 | 23.93 | 167.13 | 6.01 | 349.52 | 0.5278 | -931.9 | -798.9 | |
| 0.00 | 1.73 | 0.00 | 1.01 | 24.35 | 167.09 | 5.96 | 349.75 | 0.5338 | -779.0 | -656.0 | |
| 0.00 | 5.26 | 0.00 | 3.08 | 24.48 | 166.86 | 5.74 | 350.17 | 0.5352 | -664.0 | -539.6 | |
| 0.00 | 1.04 | 0.00 | 0.61 | 25.28 | 166.04 | 4.92 | 351.79 | 0.5449 | -289.0 | -228.9 | |
| 0.00 | 1.21 | 0.00 | 0.69 | 22.87 | 165.56 | 4.44 | 351.91 | 0.5085 | -686.0 | -582.5 | |
| 0.00 | 0.78 | 0.00 | 0.45 | 24.19 | 165.44 | 4.32 | 352.49 | 0.5277 | -659.0 | -480.4 | |
| 6.30 | 40.64 | 3.57 | 23.08 | 21.54 | 165.17 | 4.04 | 352.24 | 0.4876 | -1038.5 | -310.4 | |
| 4.66 | 720.46 | 2.72 | 416.92 | 24.29 | 165.12 | 3.99 | 353.07 | 0.5286 | -452.8 | 379.7 | |
| 0.69 | -17.00 | 0.40 | -17.00 | 24.25 | 165.02 | 3.90 | 353.23 | 0.5279 | 70.5 | 999999 | |
| 0.00 | 1.64 | 0.00 | 0.93 | 21.36 | 164.84 | 3.72 | 352.81 | 0.4843 | -683.0 | -574.7 | |
| 0.69 | -17.00 | 0.40 | -17.00 | 22.93 | 164.69 | 3.57 | 353.50 | 0.5077 | 718.1 | 999999 | |
| 4.23 | -17.00 | 2.43 | -17.00 | 23.21 | 164.57 | 3.44 | 353.78 | 0.5116 | 828.8 | 999999 | |
| 0.00 | 2.33 | 0.00 | 1.35 | 23.80 | 164.59 | 3.46 | 353.89 | 0.5204 | 667.0 | 438.0 | |
| 0.00 | 6.13 | 0.00 | 3.46 | 21.39 | 164.40 | 3.27 | 353.67 | 0.4840 | -805.0 | -792.8 | |
| 1.12 | -17.00 | 0.64 | -17.00 | 22.42 | 164.39 | 3.26 | 353.93 | 0.4994 | 714.9 | 999999 | |
| 5.09 | -17.00 | 2.92 | -17.00 | 23.03 | 164.27 | 3.15 | 354.27 | 0.5085 | 913.9 | 999999 | |
| 7.25 | -17.00 | 4.15 | -17.00 | 22.76 | 164.20 | 3.08 | 354.34 | 0.5043 | 1095.6 | 999999 | |
| 0.00 | 1.73 | 0.00 | 0.98 | 22.14 | 164.13 | 3.00 | 354.36 | 0.4949 | 664.0 | 431.9 | |
| 0.00 | 1.21 | 0.00 | 0.68 | 21.49 | 163.76 | 2.63 | 354.92 | 0.4845 | -187.0 | -142.4 | |
| 0.95 | -17.00 | 0.55 | -17.00 | 23.48 | 163.77 | 2.64 | 355.27 | 0.5145 | 694.5 | 999999 | |
| 0.00 | 1.38 | 0.00 | 0.79 | 22.24 | 163.74 | 2.62 | 355.09 | 0.4958 | 684.0 | 536.4 | |
| 0.00 | 3.45 | 0.00 | 1.97 | 22.69 | 163.72 | 2.59 | 355.22 | 0.5025 | 673.0 | 574.2 | |
| 0.00 | 2.76 | 0.00 | 1.62 | 25.33 | 163.31 | 2.18 | 356.34 | 0.5415 | 122.0 | 131.7 | |
| 0.00 | 1.81 | 0.00 | 1.02 | 21.29 | 163.21 | 2.09 | 355.93 | 0.4807 | -813.0 | -660.0 | |
| 1.38 | 3.11 | 0.78 | 1.75 | 20.88 | 163.18 | 2.05 | 355.94 | 0.4744 | -872.7 | -814.3 | |
| 0.00 | 1.21 | 0.00 | 0.68 | 21.25 | 163.05 | 1.93 | 356.24 | 0.4800 | -643.0 | -490.9 | |
| 1.73 | -17.00 | 0.99 | -17.00 | 23.27 | 162.92 | 1.79 | 356.76 | 0.5105 | 1199.7 | 999999 | |
| 1.47 | 2.42 | 0.82 | 1.36 | 20.74 | 162.79 | 1.67 | 356.68 | 0.4719 | -684.8 | -678.9 | |
| 0.00 | 1.04 | 0.00 | 0.63 | 27.58 | 162.89 | 1.76 | 357.27 | 0.5738 | 593.0 | 504.8 | |
| 106.74 | -17.00 | 61.82 | -17.00 | 23.92 | 162.54 | 1.41 | 357.51 | 0.5200 | 1317.2 | 999999 | |
| 0.00 | 1.38 | 0.00 | 0.76 | 18.87 | 162.36 | 1.24 | 357.34 | 0.4424 | 821.0 | 643.1 | |
| 0.43 | 17.09 | 0.25 | 9.71 | 22.23 | 162.30 | 1.17 | 357.80 | 0.4944 | 936.8 | 425.8 | |
| 2.33 | -41.00 | 1.33 | -41.00 | 22.23 | 162.10 | 0.98 | 358.16 | 0.4943 | 898.6 | 999999 | |
| 1.73 | -17.00 | 1.01 | -17.00 | 24.48 | 161.76 | 0.63 | 358.90 | 0.5280 | 650.4 | 999999 | |
| 1.04 | -17.00 | 0.59 | -17.00 | 22.40 | 161.69 | 0.56 | 358.95 | 0.4967 | 1009.5 | 999999 | |
| 2.07 | 6.39 | 1.25 | 3.84 | 27.47 | 161.68 | 0.55 | 359.14 | 0.5717 | 789.6 | 532.9 | |
| 1.64 | 4.31 | 0.93 | 2.44 | 21.52 | 161.59 | 0.46 | 359.11 | 0.4831 | 945.0 | 817.8 | |
| 0.00 | 2.16 | 0.00 | 1.18 | 17.59 | 161.55 | 0.42 | 359.05 | 0.4217 | -495.0 | -509.0 | |
| 0.00 | 1.38 | 0.00 | 0.82 | 26.64 | 161.47 | 0.35 | 359.44 | 0.5597 | 617.0 | 429.8 | |
| 0.00 | 0.60 | 0.00 | 0.37 | 27.76 | 161.44 | 0.32 | 359.51 | 0.5758 | 514.0 | 407.7 | |
| 0.00 | 1.21 | 0.00 | 0.72 | 26.21 | 161.37 | 0.25 | 359.60 | 0.5534 | 680.0 | 580.9 | |
| 4.57 | 4.92 | 2.73 | 2.93 | 26.57 | 161.07 | -0.05 | 0.08 | 0.5586 | 841.9 | 498.2 | |
| 0.00 | 2.85 | 0.00 | 1.71 | 27.40 | 160.87 | -0.25 | 0.40 | 0.5706 | 864.0 | 744.9 | |
| 0.00 | 1.38 | 0.00 | 0.83 | 26.96 | 160.31 | -0.82 | 1.30 | 0.5645 | 835.0 | 677.2 | |
| 0.00 | 1.47 | 0.00 | 0.88 | 26.71 | 160.01 | -1.12 | 1.78 | 0.5609 | 648.0 | 560.5 | |
| 0.00 | 1.21 | 0.00 | 0.71 | 25.04 | 159.73 | -1.40 | 2.37 | 0.5367 | 783.0 | 599.6 | |
| 19.33 | 82.24 | 11.76 | 50.18 | 28.24 | 159.32 | -1.81 | 2.74 | 0.5832 | -973.6 | -99.1 | |
| 0.00 | 2.16 | 0.00 | 1.28 | 26.11 | 159.12 | -2.00 | 3.27 | 0.5527 | 750.0 | 643.6 | |
| 0.00 | 1.21 | 0.00 | 0.72 | 26.36 | 159.02 | -2.11 | 3.41 | 0.5564 | 751.0 | 692.2 | |
| 0.00 | 1.47 | 0.00 | 0.86 | 25.22 | 159.01 | -2.12 | 3.57 | 0.5398 | 741.0 | 602.8 | |
| 0.00 | 1.29 | 0.00 | 0.76 | 25.68 | 159.00 | -2.13 | 3.53 | 0.5466 | 637.0 | 566.5 | |
| 0.00 | 1.12 | 0.00 | 0.66 | 26.00 | 158.96 | -2.17 | 3.55 | 0.5513 | 705.0 | 512.5 | |
| 0.00 | 1.21 | 0.00 | 0.70 | 24.45 | 158.95 | -2.17 | 3.76 | 0.5285 | 682.0 | 563.1 | |
| 0.00 | 1.21 | 0.00 | 0.71 | 24.73 | 158.78 | -2.34 | 4.01 | 0.5328 | 688.0 | 601.1 | |
| 0.00 | 3.62 | 0.00 | 2.13 | 25.12 | 158.61 | -2.51 | 4.24 | 0.5387 | 581.0 | 492.0 | |
| 0.00 | 1.29 | 0.00 | 0.77 | 26.50 | 158.58 | -2.54 | 4.09 | 0.5590 | 544.0 | 465.3 | |
| 0.52 | 2.16 | 0.32 | 1.31 | 28.24 | 158.48 | -2.65 | 4.02 | 0.5840 | -767.7 | -608.2 | |
| 0.00 | 1.98 | 0.00 | 1.18 | 26.33 | 157.96 | -3.17 | 5.12 | 0.5572 | 591.0 | 441.3 | |
| 0.00 | 1.04 | 0.00 | 0.63 | 28.50 | 157.79 | -3.33 | 5.00 | 0.5884 | -691.0 | -603.2 | |
| 0.00 | 0.60 | 0.00 | 0.37 | 28.98 | 157.61 | -3.52 | 5.20 | 0.5954 | -288.0 | -365.9 | |
| 0.00 | 1.38 | 0.00 | 0.87 | 31.12 | 157.46 | -3.67 | 5.04 | 0.6250 | -605.0 | -485.5 | |
| 0.00 | 1.73 | 0.00 | 1.06 | 28.80 | 157.48 | -3.65 | 5.42 | 0.5930 | -571.0 | -520.3 | |
| 0.00 | 3.02 | 0.00 | 1.83 | 27.74 | 157.48 | -3.65 | 5.61 | 0.5780 | -661.0 | -584.1 | |
| 0.00 | 2.07 | 0.00 | 1.31 | 30.89 | 157.26 | -3.87 | 5.36 | 0.6222 | -692.0 | -563.2 | |
| 0.00 | 1.90 | 0.00 | 1.15 | 27.49 | 157.32 | -3.81 | 5.91 | 0.5747 | -690.0 | -572.0 | |
| 0.00 | 2.07 | 0.00 | 1.28 | 29.43 | 157.21 | -3.91 | 5.68 | 0.6022 | -441.0 | -431.2 | |
| 0.00 | 1.47 | 0.00 | 0.89 | 27.92 | 157.27 | -3.86 | 5.89 | 0.5809 | -765.0 | -626.2 | |
| 0.00 | 1.04 | 0.00 | 0.63 | 28.62 | 157.14 | -3.98 | 5.95 | 0.5909 | -638.0 | -567.5 | |
| 0.00 | 0.86 | 0.00 | 0.53 | 29.32 | 156.95 | -4.18 | 6.09 | 0.6010 | -614.0 | -505.8 | |
| 0.00 | 2.68 | 0.00 | 1.64 | 28.81 | 156.86 | -4.26 | 6.32 | 0.5940 | -895.0 | -677.0 | |
| 0.00 | 1.21 | 0.00 | 0.75 | 29.44 | 156.74 | -4.39 | 6.37 | 0.6029 | -570.0 | -505.6 | |
| 0.00 | 1.73 | 0.00 | 1.03 | 26.38 | 156.73 | -4.40 | 7.08 | 0.5597 | 622.0 | 374.5 | |
| 0.00 | 1.12 | 0.00 | 0.72 | 31.89 | 156.45 | -4.68 | 6.27 | 0.6368 | -574.0 | -504.8 | |
| 0.00 | 1.29 | 0.00 | 0.81 | 30.15 | 156.15 | -4.97 | 7.04 | 0.6137 | -732.0 | -568.4 | |
| 0.00 | 2.24 | 0.00 | 1.40 | 29.67 | 155.87 | -5.26 | 7.56 | 0.6076 | -854.0 | -611.2 | |
| 0.00 | 1.38 | 0.00 | 0.85 | 29.19 | 155.79 | -5.34 | 7.79 | 0.6011 | -771.0 | -600.6 | |
| 0.00 | 3.37 | 0.00 | 2.09 | 29.64 | 155.56 | -5.57 | 8.01 | 0.6077 | -613.0 | -642.5 | |
| 0.00 | 1.64 | 0.00 | 1.03 | 30.50 | 155.51 | -5.62 | 7.85 | 0.6196 | -643.0 | -528.1 | |
| 0.00 | 1.90 | 0.00 | 1.19 | 30.31 | 155.45 | -5.67 | 7.98 | 0.6171 | -721.0 | -598.5 | |
| 0.00 | 1.64 | 0.00 | 1.06 | 32.42 | 154.37 | -6.76 | 8.86 | 0.6475 | -575.0 | -454.7 | |
| 0.00 | 1.04 | 0.00 | 0.65 | 29.89 | 153.72 | -7.41 | 10.51 | 0.6152 | -751.0 | -672.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
