SDO HMI 2011-03-03 19:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.18 | 0.00 | 6.63 | -23.62 | 180.16 | 19.04 | 225.96 | 0.4174 | -500.7 | -532.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-03-03 19:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

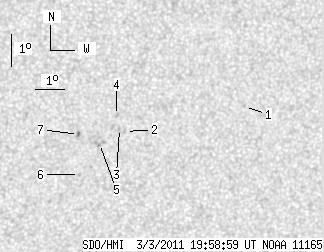

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.78 | 0.00 | 0.43 | -22.50 | 184.62 | 23.50 | 233.47 | 0.4603 | 834.0 | 731.0 | |
| 0.00 | 0.95 | 0.00 | 0.52 | -23.45 | 180.65 | 19.53 | 227.02 | 0.4209 | -672.0 | -538.1 | |
| 0.00 | 1.21 | 0.00 | 0.66 | -23.36 | 180.43 | 19.31 | 226.88 | 0.4176 | -727.0 | -529.1 | |
| 0.00 | 1.73 | 0.00 | 0.94 | -22.97 | 180.27 | 19.14 | 227.42 | 0.4118 | -664.0 | -499.1 | |
| 0.00 | 4.57 | 0.00 | 2.49 | -23.85 | 179.82 | 18.69 | 225.11 | 0.4155 | -676.0 | -647.5 | |
| 0.00 | 1.21 | 0.00 | 0.66 | -24.84 | 179.28 | 18.16 | 222.55 | 0.4200 | -662.0 | -577.6 | |
| 0.00 | 1.73 | 0.00 | 0.93 | -23.60 | 179.07 | 17.94 | 224.49 | 0.4045 | -938.0 | -810.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
