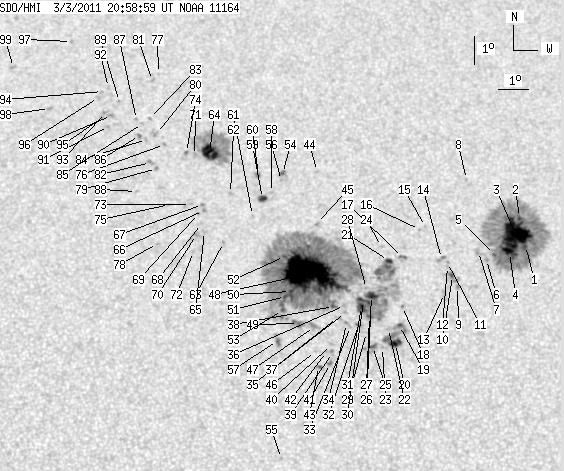

SDO HMI 2011-03-03 20:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 235.93 | 1279.39 | 137.93 | 749.71 | 24.61 | 164.03 | 3.46 | 354.05 | 0.5348 | 154.8 | 64.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-03-03 20:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.04 | 301.87 | 0.61 | 179.73 | 25.00 | 169.68 | 9.11 | 344.91 | 0.5533 | -1069.6 | -389.9 | |
| 1.04 | -1.00 | 0.62 | -1.00 | 25.99 | 169.56 | 8.98 | 345.60 | 0.5666 | -562.7 | 999999 | |
| 46.60 | -1.00 | 27.76 | -1.00 | 25.42 | 169.38 | 8.80 | 345.60 | 0.5580 | -1106.0 | 999999 | |
| 8.20 | -1.00 | 4.85 | -1.00 | 24.74 | 169.13 | 8.56 | 345.66 | 0.5476 | -1240.7 | 999999 | |
| 1.21 | -1.00 | 0.71 | -1.00 | 24.66 | 168.63 | 8.06 | 346.43 | 0.5447 | -912.7 | 999999 | |
| 0.00 | 1.47 | 0.00 | 0.86 | 24.48 | 168.36 | 7.78 | 346.79 | 0.5412 | -880.0 | -701.8 | |
| 0.00 | 3.02 | 0.00 | 1.78 | 24.76 | 168.11 | 7.53 | 347.32 | 0.5444 | -738.0 | -524.4 | |
| 0.00 | 1.38 | 0.00 | 0.84 | 27.32 | 167.87 | 7.30 | 348.73 | 0.5797 | -653.0 | -539.2 | |
| 0.00 | 1.73 | 0.00 | 1.00 | 23.53 | 167.35 | 6.77 | 348.05 | 0.5242 | -1021.0 | -911.0 | |
| 1.55 | 8.80 | 0.91 | 5.13 | 23.91 | 167.21 | 6.63 | 348.45 | 0.5293 | -900.7 | -676.9 | |
| 0.00 | 0.86 | 0.00 | 0.51 | 24.36 | 167.07 | 6.49 | 348.87 | 0.5354 | -754.0 | -675.6 | |
| 0.00 | 1.04 | 0.00 | 0.61 | 24.22 | 167.06 | 6.48 | 348.82 | 0.5334 | -676.0 | -553.6 | |
| 0.00 | 3.02 | 0.00 | 1.75 | 23.28 | 166.91 | 6.34 | 348.69 | 0.5193 | -837.0 | -560.1 | |
| 0.00 | 3.37 | 0.00 | 1.97 | 24.49 | 166.88 | 6.30 | 349.24 | 0.5369 | -571.0 | -566.1 | |
| 0.00 | 0.86 | 0.00 | 0.51 | 25.61 | 166.40 | 5.83 | 350.41 | 0.5518 | -687.0 | -550.2 | |
| 0.00 | 1.04 | 0.00 | 0.61 | 25.50 | 166.20 | 5.62 | 350.70 | 0.5497 | -697.0 | -543.5 | |
| 0.00 | 4.31 | 0.00 | 2.52 | 24.51 | 165.60 | 5.02 | 351.39 | 0.5340 | -600.0 | -566.2 | |
| 0.00 | 1.04 | 0.00 | 0.59 | 22.81 | 165.53 | 4.96 | 350.96 | 0.5088 | -753.0 | -627.5 | |
| 1.98 | 34.09 | 1.13 | 19.38 | 22.16 | 165.41 | 4.84 | 350.96 | 0.4987 | -556.6 | -453.8 | |
| 6.21 | -19.00 | 3.52 | -19.00 | 21.55 | 165.26 | 4.69 | 351.03 | 0.4892 | -1044.5 | 999999 | |
| 2.93 | 32.19 | 1.71 | 18.71 | 24.40 | 165.13 | 4.56 | 352.14 | 0.5314 | -562.2 | -70.0 | |
| 0.00 | 1.90 | 0.00 | 1.08 | 22.05 | 165.05 | 4.48 | 351.58 | 0.4963 | -134.0 | -99.4 | |
| 0.00 | 1.04 | 0.00 | 0.59 | 21.41 | 164.84 | 4.27 | 351.78 | 0.4861 | -751.0 | -601.3 | |
| 0.00 | 0.78 | 0.00 | 0.46 | 24.89 | 164.92 | 4.35 | 352.63 | 0.5381 | -606.0 | -447.3 | |
| 1.90 | 8.72 | 1.07 | 4.93 | 21.44 | 164.52 | 3.95 | 352.39 | 0.4859 | -898.0 | -721.1 | |
| 5.87 | 660.61 | 3.38 | 382.38 | 23.18 | 164.54 | 3.96 | 352.84 | 0.5122 | 799.1 | 402.6 | |
| 2.33 | -26.00 | 1.33 | -26.00 | 22.46 | 164.45 | 3.88 | 352.81 | 0.5012 | 609.0 | 999999 | |
| 0.00 | 1.81 | 0.00 | 1.05 | 23.42 | 164.38 | 3.81 | 353.18 | 0.5155 | 580.0 | 468.6 | |
| 0.00 | 3.02 | 0.00 | 1.72 | 21.91 | 164.34 | 3.77 | 352.86 | 0.4927 | 175.0 | 159.2 | |
| 4.49 | -26.00 | 2.58 | -26.00 | 23.01 | 164.28 | 3.70 | 353.27 | 0.5091 | 930.4 | 999999 | |
| 2.16 | -26.00 | 1.24 | -26.00 | 22.80 | 164.20 | 3.63 | 353.35 | 0.5058 | 1127.1 | 999999 | |
| 0.60 | 1.90 | 0.34 | 1.08 | 22.15 | 164.09 | 3.52 | 353.39 | 0.4958 | 633.9 | 521.3 | |
| 0.00 | 1.21 | 0.00 | 0.69 | 22.11 | 163.83 | 3.26 | 353.87 | 0.4949 | 575.0 | 354.9 | |
| 0.00 | 1.12 | 0.00 | 0.64 | 22.21 | 163.71 | 3.13 | 354.13 | 0.4962 | 666.0 | 562.7 | |
| 0.00 | 1.21 | 0.00 | 0.69 | 22.59 | 163.68 | 3.11 | 354.25 | 0.5018 | 820.0 | 684.4 | |
| 0.00 | 2.16 | 0.00 | 1.24 | 22.83 | 163.66 | 3.08 | 354.35 | 0.5054 | 793.0 | 732.1 | |
| 0.00 | 2.16 | 0.00 | 1.23 | 22.42 | 163.42 | 2.85 | 354.70 | 0.4988 | 714.0 | 560.3 | |
| 1.55 | -26.00 | 0.89 | -26.00 | 22.79 | 163.30 | 2.73 | 354.99 | 0.5044 | 903.4 | 999999 | |
| 0.00 | 2.50 | 0.00 | 1.41 | 21.22 | 163.24 | 2.66 | 354.81 | 0.4805 | -766.0 | -674.9 | |
| 0.00 | 1.81 | 0.00 | 1.03 | 21.49 | 163.21 | 2.64 | 354.91 | 0.4846 | -421.0 | -373.5 | |
| 1.12 | 3.11 | 0.63 | 1.75 | 20.85 | 163.17 | 2.59 | 354.87 | 0.4747 | -855.2 | -774.8 | |
| 0.00 | 0.86 | 0.00 | 0.49 | 21.26 | 163.05 | 2.47 | 355.18 | 0.4807 | -634.0 | -522.7 | |
| 0.00 | 2.16 | 0.00 | 1.21 | 20.75 | 162.79 | 2.21 | 355.61 | 0.4726 | -888.0 | -714.9 | |
| 0.00 | 1.21 | 0.00 | 0.73 | 27.55 | 162.87 | 2.30 | 356.43 | 0.5738 | 651.0 | 522.5 | |
| 0.00 | 1.29 | 0.00 | 0.76 | 25.69 | 162.80 | 2.23 | 356.31 | 0.5468 | -357.0 | -148.1 | |
| 0.00 | 0.78 | 0.00 | 0.44 | 21.25 | 162.70 | 2.12 | 355.86 | 0.4803 | -512.0 | -393.8 | |
| 0.00 | 6.90 | 0.00 | 3.93 | 22.10 | 162.68 | 2.10 | 356.03 | 0.4932 | 148.0 | 268.8 | |
| 117.19 | -26.00 | 67.89 | -26.00 | 23.93 | 162.54 | 1.97 | 356.53 | 0.5206 | 1286.3 | 999999 | |
| 0.00 | 5.78 | 0.00 | 3.29 | 22.20 | 162.17 | 1.59 | 357.01 | 0.4943 | 1069.0 | 914.0 | |
| 1.29 | -26.00 | 0.74 | -26.00 | 23.30 | 161.92 | 1.34 | 357.57 | 0.5107 | 1171.5 | 999999 | |
| 1.38 | -26.00 | 0.79 | -26.00 | 23.13 | 161.76 | 1.18 | 357.85 | 0.5080 | 1084.8 | 999999 | |
| 0.78 | -26.00 | 0.45 | -26.00 | 24.52 | 161.74 | 1.16 | 357.99 | 0.5288 | 606.3 | 999999 | |
| 1.73 | -26.00 | 0.99 | -26.00 | 22.65 | 161.66 | 1.08 | 358.00 | 0.5007 | 858.9 | 999999 | |
| 1.47 | 3.62 | 0.88 | 2.18 | 27.47 | 161.70 | 1.12 | 358.25 | 0.5720 | 804.9 | 690.3 | |
| 0.00 | 0.86 | 0.00 | 0.47 | 17.69 | 161.59 | 1.01 | 357.71 | 0.4236 | -625.0 | -439.4 | |
| 0.00 | 0.86 | 0.00 | 0.52 | 27.22 | 161.66 | 1.09 | 358.29 | 0.5683 | 386.0 | 317.5 | |
| 0.00 | 5.95 | 0.00 | 3.37 | 21.62 | 161.49 | 0.91 | 358.24 | 0.4850 | 971.0 | 819.7 | |
| 0.00 | 1.47 | 0.00 | 0.88 | 26.79 | 161.33 | 0.75 | 358.80 | 0.5619 | 525.0 | 441.9 | |
| 4.40 | 5.18 | 2.62 | 3.09 | 26.57 | 161.03 | 0.45 | 359.28 | 0.5587 | 839.6 | 530.8 | |
| 0.60 | 3.02 | 0.36 | 1.82 | 27.40 | 160.89 | 0.32 | 359.50 | 0.5707 | 866.4 | 627.4 | |
| 0.00 | 0.95 | 0.00 | 0.56 | 25.96 | 160.69 | 0.12 | 359.81 | 0.5498 | 727.0 | 623.4 | |
| 0.00 | 1.90 | 0.00 | 1.13 | 26.75 | 159.96 | -0.61 | 0.98 | 0.5614 | 757.0 | 570.4 | |
| 0.00 | 1.12 | 0.00 | 0.66 | 25.01 | 159.74 | -0.83 | 1.42 | 0.5359 | 812.0 | 711.7 | |
| 15.88 | 84.23 | 9.66 | 51.38 | 28.24 | 159.24 | -1.33 | 2.02 | 0.5830 | -1002.1 | -119.7 | |
| 0.00 | 1.81 | 0.00 | 1.07 | 25.40 | 159.11 | -1.46 | 2.45 | 0.5420 | 765.0 | 622.4 | |
| 0.00 | 1.12 | 0.00 | 0.67 | 26.14 | 159.07 | -1.51 | 2.45 | 0.5529 | 843.0 | 726.2 | |
| 0.00 | 1.55 | 0.00 | 0.92 | 26.36 | 159.03 | -1.54 | 2.49 | 0.5561 | 797.0 | 650.6 | |
| 0.00 | 1.04 | 0.00 | 0.61 | 25.68 | 159.01 | -1.57 | 2.59 | 0.5462 | 685.0 | 595.0 | |
| 0.00 | 1.04 | 0.00 | 0.61 | 26.04 | 158.91 | -1.67 | 2.73 | 0.5515 | 651.0 | 511.1 | |
| 0.00 | 3.80 | 0.00 | 2.23 | 25.29 | 158.85 | -1.72 | 2.90 | 0.5406 | 698.0 | 567.8 | |
| 0.00 | 2.33 | 0.00 | 1.42 | 28.13 | 158.74 | -1.84 | 2.79 | 0.5818 | -735.0 | -608.1 | |
| 0.00 | 0.78 | 0.00 | 0.45 | 24.70 | 158.76 | -1.81 | 3.11 | 0.5319 | 698.0 | 494.9 | |
| 0.00 | 1.55 | 0.00 | 0.92 | 26.36 | 158.64 | -1.94 | 3.14 | 0.5564 | 421.0 | 474.1 | |
| 0.00 | 1.21 | 0.00 | 0.74 | 28.24 | 158.47 | -2.11 | 3.20 | 0.5835 | -758.0 | -672.2 | |
| 0.00 | 1.29 | 0.00 | 0.77 | 26.36 | 157.94 | -2.64 | 4.26 | 0.5571 | 616.0 | 451.0 | |
| 0.00 | 1.47 | 0.00 | 0.90 | 28.54 | 157.72 | -2.86 | 4.29 | 0.5884 | -709.0 | -584.4 | |
| 0.00 | 1.12 | 0.00 | 0.71 | 31.19 | 157.43 | -3.14 | 4.32 | 0.6255 | -607.0 | -422.1 | |
| 0.00 | 1.21 | 0.00 | 0.71 | 24.98 | 157.58 | -3.00 | 5.08 | 0.5374 | 581.0 | 498.3 | |
| 0.00 | 1.81 | 0.00 | 1.10 | 27.66 | 157.47 | -3.10 | 4.79 | 0.5763 | -780.0 | -652.0 | |
| 0.00 | 2.16 | 0.00 | 1.33 | 28.95 | 157.43 | -3.14 | 4.65 | 0.5945 | -620.0 | -555.8 | |
| 0.00 | 1.73 | 0.00 | 1.09 | 30.93 | 157.23 | -3.34 | 4.63 | 0.6221 | -691.0 | -530.3 | |
| 0.00 | 2.93 | 0.00 | 1.78 | 27.88 | 157.26 | -3.31 | 5.07 | 0.5797 | -701.0 | -596.4 | |
| 0.00 | 1.38 | 0.00 | 0.86 | 29.50 | 157.18 | -3.40 | 4.93 | 0.6026 | -587.0 | -491.1 | |
| 0.00 | 1.81 | 0.00 | 1.11 | 28.73 | 157.10 | -3.47 | 5.17 | 0.5918 | -762.0 | -576.8 | |
| 0.00 | 1.12 | 0.00 | 0.69 | 29.32 | 156.94 | -3.63 | 5.30 | 0.6003 | -628.0 | -551.2 | |
| 0.43 | 1.98 | 0.27 | 1.22 | 28.88 | 156.86 | -3.72 | 5.50 | 0.5942 | -845.2 | -741.3 | |
| 0.00 | 1.29 | 0.00 | 0.80 | 29.47 | 156.73 | -3.84 | 5.58 | 0.6027 | -629.0 | -529.8 | |
| 0.00 | 1.38 | 0.00 | 0.83 | 26.84 | 156.83 | -3.75 | 5.95 | 0.5654 | -555.0 | -402.6 | |
| 0.00 | 1.04 | 0.00 | 0.65 | 30.15 | 156.12 | -4.45 | 6.31 | 0.6129 | -677.0 | -584.0 | |
| 0.00 | 2.68 | 0.00 | 1.66 | 29.63 | 155.87 | -4.71 | 6.78 | 0.6061 | -795.0 | -565.8 | |
| 0.00 | 1.04 | 0.00 | 0.64 | 29.22 | 155.79 | -4.79 | 6.99 | 0.6006 | -819.0 | -659.7 | |
| 0.00 | 1.04 | 0.00 | 0.65 | 30.68 | 155.72 | -4.86 | 6.77 | 0.6208 | -599.0 | -548.6 | |
| 0.00 | 1.73 | 0.00 | 1.07 | 29.74 | 155.66 | -4.92 | 7.06 | 0.6081 | -749.0 | -671.3 | |
| 0.00 | 0.95 | 0.00 | 0.60 | 30.53 | 155.51 | -5.06 | 7.08 | 0.6191 | -607.0 | -559.0 | |
| 0.00 | 1.12 | 0.00 | 0.70 | 29.56 | 155.56 | -5.01 | 7.23 | 0.6057 | -776.0 | -646.2 | |
| 0.00 | 1.90 | 0.00 | 1.19 | 30.31 | 155.39 | -5.19 | 7.30 | 0.6163 | -723.0 | -575.7 | |
| 0.00 | 1.12 | 0.00 | 0.73 | 32.46 | 154.31 | -6.26 | 8.21 | 0.6470 | -692.0 | -498.2 | |
| 0.00 | 2.33 | 0.00 | 1.46 | 29.92 | 153.72 | -6.86 | 9.73 | 0.6144 | -806.0 | -643.1 | |
| 0.00 | 2.24 | 0.00 | 1.44 | 31.49 | 152.34 | -8.24 | 11.07 | 0.6388 | -553.0 | -492.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
