group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
11164	216.30	1288.05	126.63	755.57	24.58	164.03	4.00	353.13	0.5354	171.8	70.5

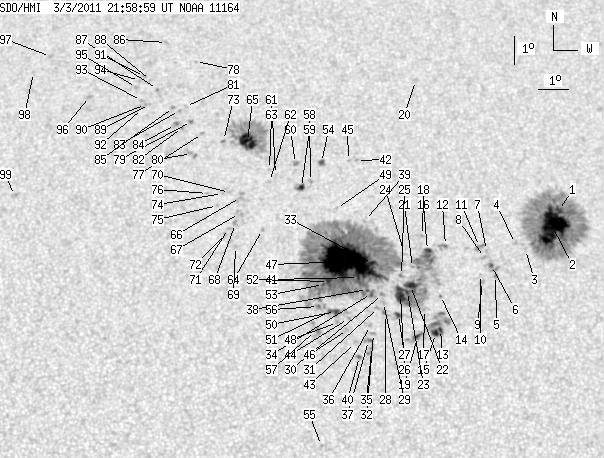

previous   or   next   observation for the same group / back to the solar disc SDO HMI 2011-03-03 21:58:59 UT See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	2.42	313.38	1.45	186.89	25.86	169.57	9.54	344.68	0.5669	-647.0	-386.2
2	51.61	-1.00	30.76	-1.00	25.29	169.32	9.30	344.76	0.5580	-1119.9	999999
3	0.00	1.29	0.00	0.76	24.46	168.37	8.34	345.86	0.5429	-665.0	-550.1
4	0.00	1.90	0.00	1.12	24.66	168.05	8.03	346.48	0.5447	-820.0	-636.0
5	0.00	1.38	0.00	0.80	23.54	167.32	7.30	347.15	0.5261	-973.0	-901.8
6	1.64	8.63	0.96	5.03	23.88	167.21	7.19	347.50	0.5307	-916.2	-662.4
7	0.00	1.04	0.00	0.61	24.40	167.08	7.05	347.95	0.5378	-807.0	-669.8
8	0.00	2.85	0.00	1.67	24.16	167.00	6.97	347.98	0.5340	-611.0	-478.9
9	0.00	2.16	0.00	1.25	23.32	166.89	6.86	347.80	0.5215	-719.0	-631.5
10	0.00	0.95	0.00	0.55	23.56	166.84	6.81	348.00	0.5249	-600.0	-497.7
11	0.00	4.14	0.00	2.43	24.54	166.86	6.83	348.37	0.5390	-489.0	-520.1
12	1.21	4.06	0.71	2.38	24.56	165.74	5.71	350.24	0.5363	-550.0	-511.5
13	1.21	41.25	0.69	23.46	21.66	165.46	5.43	349.67	0.4928	-966.1	-551.4
14	0.00	1.21	0.00	0.69	22.82	165.50	5.48	350.03	0.5102	-709.0	-528.4
15	3.45	-13.00	1.96	-13.00	21.52	165.29	5.26	349.93	0.4902	-1056.5	999999
16	2.33	115.65	1.36	66.74	24.37	165.14	5.12	351.19	0.5322	-568.7	174.8
17	0.00	1.29	0.00	0.74	22.33	164.97	4.94	350.82	0.5016	421.0	205.6
18	0.00	1.12	0.00	0.66	24.90	165.00	4.97	351.59	0.5395	-480.0	-332.4
19	2.59	-13.00	1.47	-13.00	21.41	164.71	4.68	350.98	0.4871	-905.3	999999
20	0.00	2.59	0.00	1.63	30.53	165.02	5.00	353.01	0.6190	-457.0	-367.3
21	0.00	0.52	0.00	0.30	23.77	164.63	4.60	351.88	0.5223	581.0	422.2
22	6.39	-16.00	3.68	-16.00	23.15	164.54	4.52	351.85	0.5129	749.7	999999
23	1.21	-16.00	0.69	-16.00	22.94	164.44	4.41	351.97	0.5095	944.9	999999
24	0.00	1.38	0.00	0.80	24.26	164.38	4.36	352.44	0.5289	250.0	165.2
25	0.00	2.59	0.00	1.50	23.49	164.26	4.24	352.45	0.5174	716.0	521.1
26	11.13	-16.00	6.39	-16.00	22.84	164.21	4.18	352.36	0.5075	1031.3	999999
27	2.24	10.36	1.28	5.90	22.15	164.12	4.10	352.32	0.4970	714.1	162.6
28	0.00	2.50	0.00	1.43	22.15	163.70	3.68	353.09	0.4962	528.0	557.8
29	0.00	2.16	0.00	1.23	22.56	163.65	3.63	353.30	0.5023	835.0	664.9
30	0.00	2.16	0.00	1.24	22.83	163.63	3.60	353.41	0.5063	894.0	767.5
31	0.00	1.81	0.00	1.03	22.38	163.48	3.46	353.56	0.4994	718.0	625.9
32	0.00	1.99	0.00	1.12	21.50	163.30	3.28	353.68	0.4856	-666.0	-578.5
33	1.04	548.47	0.60	318.07	23.90	163.33	3.30	354.18	0.5218	865.4	431.9
34	2.07	-33.00	1.19	-33.00	22.86	163.27	3.25	354.06	0.5062	959.4	999999
35	0.00	5.01	0.00	2.82	20.92	163.23	3.20	353.69	0.4767	-857.0	-697.8
36	0.00	1.47	0.00	0.83	21.77	163.21	3.19	353.92	0.4896	-594.0	-371.9
37	0.00	4.23	0.00	2.39	21.26	163.14	3.11	353.94	0.4817	-738.0	-504.1
38	0.60	-33.00	0.35	-33.00	23.00	163.14	3.12	354.32	0.5081	980.4	999999
39	0.00	1.29	0.00	0.76	25.41	163.11	3.08	354.86	0.5437	554.0	366.3
40	1.12	1.81	0.63	1.02	20.72	162.84	2.82	354.40	0.4730	-760.4	-775.2
41	1.04	-33.00	0.60	-33.00	23.41	162.86	2.84	354.91	0.5139	1330.7	999999
42	0.00	1.29	0.00	0.78	27.55	162.90	2.87	355.55	0.5745	621.0	513.4
43	0.00	1.55	0.00	0.88	21.19	162.72	2.70	354.73	0.4800	-319.0	-320.3
44	0.00	1.21	0.00	0.69	22.00	162.51	2.49	355.29	0.4922	537.0	525.5
45	0.00	1.12	0.00	0.68	27.55	162.63	2.60	355.96	0.5742	594.0	479.8
46	0.00	1.21	0.00	0.68	21.63	162.47	2.45	355.30	0.4864	200.0	162.5
47	90.53	-33.00	52.49	-33.00	23.96	162.45	2.43	355.73	0.5216	1297.3	999999
48	0.00	1.47	0.00	0.83	21.86	162.16	2.13	355.94	0.4896	732.0	486.3
49	0.00	0.95	0.00	0.56	25.83	162.19	2.17	356.43	0.5488	471.0	410.7
50	2.42	11.05	1.38	6.29	22.24	162.10	2.07	356.10	0.4953	938.9	584.7
51	1.73	-50.00	0.98	-50.00	22.24	161.91	1.88	356.47	0.4951	890.3	999999
52	3.71	-33.00	2.13	-33.00	23.27	161.89	1.86	356.63	0.5106	1171.7	999999
53	1.04	-33.00	0.59	-33.00	23.16	161.73	1.70	356.91	0.5089	1047.4	999999
54	2.68	3.54	1.61	2.13	27.47	161.72	1.70	357.36	0.5723	791.9	757.4
55	0.00	1.29	0.00	0.71	17.75	161.60	1.58	356.45	0.4252	-671.0	-476.3
56	0.00	3.02	0.00	1.72	22.41	161.56	1.53	357.14	0.4974	946.0	726.7
57	0.00	7.59	0.00	4.30	21.59	161.45	1.43	357.25	0.4848	928.0	763.9
58	0.00	1.64	0.00	0.98	26.79	161.34	1.32	357.90	0.5622	612.0	456.2
59	2.59	5.78	1.54	3.45	26.57	161.04	1.02	358.37	0.5589	807.9	680.2
60	0.00	2.85	0.00	1.72	27.44	160.85	0.82	358.71	0.5714	859.0	687.7
61	0.00	0.35	0.00	0.21	27.04	160.18	0.15	359.76	0.5655	682.0	685.8
62	0.00	1.38	0.00	0.83	26.79	159.98	-0.05	0.07	0.5618	803.0	601.7
63	0.00	1.12	0.00	0.67	27.22	159.98	-0.05	0.07	0.5681	628.0	496.8
64	0.00	1.55	0.00	0.91	25.08	159.75	-0.28	0.47	0.5369	802.0	668.3
65	16.83	83.72	10.24	51.06	28.24	159.24	-0.79	1.20	0.5828	-948.4	-136.5
66	0.00	6.13	0.00	3.64	26.21	159.02	-1.01	1.64	0.5537	865.0	635.5
67	0.00	3.19	0.00	1.88	25.64	158.99	-1.03	1.72	0.5454	508.0	536.9
68	0.00	2.93	0.00	1.72	25.29	158.86	-1.16	1.95	0.5403	755.0	603.2
69	0.00	0.86	0.00	0.50	24.48	158.87	-1.16	2.00	0.5283	750.0	648.2
70	0.00	0.95	0.00	0.57	26.39	158.65	-1.37	2.22	0.5565	572.0	567.3
71	0.00	1.90	0.00	1.11	25.12	158.63	-1.39	2.35	0.5378	643.0	512.7
72	0.00	1.47	0.00	0.86	24.94	158.54	-1.49	2.53	0.5353	661.0	519.8
73	0.00	1.04	0.00	0.63	28.27	158.43	-1.60	2.42	0.5837	-664.0	-593.3
74	0.00	0.69	0.00	0.41	26.36	158.42	-1.60	2.60	0.5562	634.0	537.5
75	0.00	1.04	0.00	0.61	25.93	158.26	-1.76	2.90	0.5500	628.0	443.5
76	0.00	0.60	0.00	0.36	26.36	157.92	-2.10	3.40	0.5566	437.0	383.0
77	0.00	1.29	0.00	0.79	28.53	157.71	-2.31	3.47	0.5879	-659.0	-520.7
78	0.00	1.21	0.00	0.77	31.23	157.40	-2.62	3.60	0.6256	-592.0	-406.5
79	1.47	2.07	0.90	1.27	28.98	157.33	-2.70	3.99	0.5945	-648.9	-637.1
80	0.00	5.18	0.00	3.14	27.81	157.36	-2.67	4.10	0.5779	-542.0	-571.1
81	0.00	1.90	0.00	1.18	29.54	157.11	-2.92	4.23	0.6025	-585.0	-447.0
82	0.00	1.04	0.00	0.63	28.76	157.03	-3.00	4.46	0.5917	-821.0	-689.6
83	0.00	1.12	0.00	0.69	29.39	156.91	-3.12	4.54	0.6007	-688.0	-607.5
84	0.00	3.80	0.00	2.33	28.87	156.79	-3.24	4.80	0.5936	-856.0	-645.9
85	0.00	1.99	0.00	1.23	29.50	156.70	-3.33	4.83	0.6025	-594.0	-432.4
86	0.00	1.81	0.00	1.16	31.96	156.36	-3.66	4.90	0.6365	-737.0	-604.6
87	0.00	1.21	0.00	0.76	30.18	156.12	-3.90	5.53	0.6126	-603.0	-451.6
88	0.00	1.12	0.00	0.70	30.52	155.87	-4.16	5.83	0.6176	-517.0	-436.0
89	0.00	1.04	0.00	0.64	29.62	155.87	-4.15	5.99	0.6052	-635.0	-559.5
90	0.00	0.78	0.00	0.48	29.62	155.73	-4.29	6.19	0.6055	-835.0	-741.8
91	0.00	1.47	0.00	0.92	30.67	155.65	-4.37	6.09	0.6200	-606.0	-479.5
92	0.00	0.86	0.00	0.54	29.47	155.64	-4.39	6.36	0.6036	-341.0	-449.4
93	0.00	1.29	0.00	0.81	29.77	155.59	-4.43	6.36	0.6078	-777.0	-655.0
94	0.00	1.21	0.00	0.76	30.52	155.49	-4.54	6.35	0.6182	-619.0	-584.4
95	0.00	1.47	0.00	0.92	30.26	155.39	-4.63	6.54	0.6148	-718.0	-598.9
96	0.00	2.16	0.00	1.35	29.95	153.79	-6.23	8.86	0.6134	-774.0	-663.8
97	0.00	2.33	0.00	1.49	31.48	152.32	-7.71	10.37	0.6373	-592.0	-492.0
98	0.00	1.04	0.00	0.66	30.88	151.77	-8.25	11.30	0.6308	-623.0	-522.8
99	0.00	3.54	0.00	2.13	26.37	151.49	-8.54	13.54	0.5704	342.0	350.3

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
