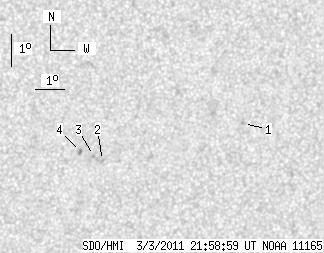

SDO HMI 2011-03-03 21:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.92 | 0.00 | 2.70 | -23.36 | 180.70 | 20.68 | 228.47 | 0.4343 | -430.5 | -397.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-03-03 21:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.21 | 0.00 | 0.68 | -22.48 | 184.62 | 24.59 | 234.60 | 0.4737 | 778.0 | 657.8 | |
| 0.00 | 0.52 | 0.00 | 0.28 | -23.84 | 179.93 | 19.91 | 226.80 | 0.4290 | -671.0 | -566.8 | |
| 0.00 | 1.12 | 0.00 | 0.61 | -23.70 | 179.60 | 19.57 | 226.62 | 0.4238 | -818.0 | -763.8 | |
| 0.00 | 2.07 | 0.00 | 1.13 | -23.59 | 179.13 | 19.11 | 226.19 | 0.4175 | -1011.0 | -790.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
