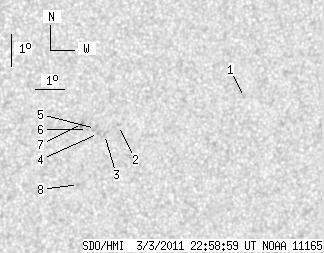

SDO HMI 2011-03-03 22:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.95 | 0.00 | 7.13 | -23.78 | 180.00 | 20.53 | 227.65 | 0.4360 | -587.4 | -501.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-03-03 22:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.54 | -22.48 | 184.64 | 25.17 | 235.13 | 0.4809 | 704.0 | 594.5 | |
| 0.00 | 0.78 | 0.00 | 0.43 | -23.55 | 180.41 | 20.93 | 228.65 | 0.4382 | -704.0 | -587.4 | |
| 0.00 | 2.76 | 0.00 | 1.52 | -23.85 | 179.97 | 20.50 | 227.55 | 0.4359 | -700.0 | -526.5 | |
| 0.00 | 1.21 | 0.00 | 0.66 | -23.83 | 179.76 | 20.29 | 227.32 | 0.4332 | -872.0 | -669.1 | |
| 0.00 | 2.59 | 0.00 | 1.42 | -23.68 | 179.63 | 20.16 | 227.44 | 0.4303 | -831.0 | -621.8 | |
| 0.00 | 0.78 | 0.00 | 0.43 | -23.72 | 179.36 | 19.89 | 227.01 | 0.4276 | -779.0 | -673.8 | |
| 0.00 | 2.59 | 0.00 | 1.41 | -23.54 | 179.16 | 19.69 | 227.08 | 0.4236 | -834.0 | -595.8 | |
| 0.00 | 1.29 | 0.00 | 0.72 | -25.44 | 179.34 | 19.86 | 223.89 | 0.4444 | -683.0 | -536.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
