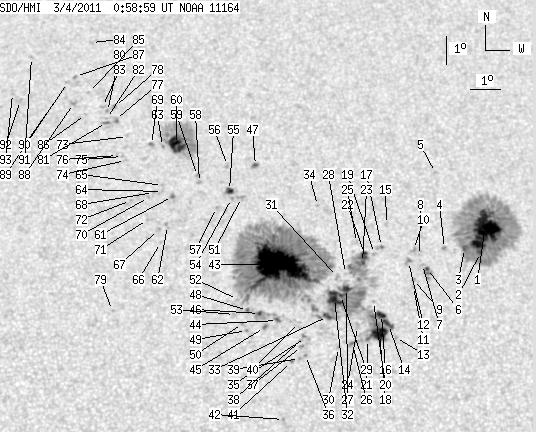

SDO HMI 2011-03-04 00:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 244.44 | 1339.09 | 143.35 | 786.78 | 24.42 | 164.18 | 5.80 | 350.03 | 0.5369 | 61.0 | 76.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-03-04 00:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 53.01 | 309.79 | 31.77 | 185.75 | 25.29 | 169.31 | 10.93 | 342.25 | 0.5649 | -1021.4 | -361.8 | |
| 1.38 | -1.00 | 0.82 | -1.00 | 24.52 | 169.11 | 10.73 | 342.10 | 0.5533 | -1228.9 | 999999 | |
| 3.37 | -1.00 | 2.00 | -1.00 | 24.64 | 168.59 | 10.21 | 342.99 | 0.5528 | -812.3 | 999999 | |
| 0.00 | 1.73 | 0.00 | 1.02 | 24.63 | 167.92 | 9.55 | 344.02 | 0.5499 | -813.0 | -679.3 | |
| 0.00 | 1.47 | 0.00 | 0.90 | 27.33 | 167.84 | 9.46 | 345.53 | 0.5868 | -550.0 | -422.9 | |
| 1.21 | 7.17 | 0.71 | 4.20 | 23.92 | 167.31 | 8.93 | 344.63 | 0.5374 | -832.9 | -781.6 | |
| 0.00 | 1.30 | 0.00 | 0.76 | 24.05 | 167.15 | 8.78 | 344.95 | 0.5388 | -796.0 | -618.0 | |
| 0.00 | 0.69 | 0.00 | 0.41 | 24.36 | 167.07 | 8.70 | 345.24 | 0.5429 | -532.0 | -391.1 | |
| 0.00 | 1.47 | 0.00 | 0.86 | 23.52 | 166.82 | 8.44 | 345.22 | 0.5300 | -721.0 | -560.5 | |
| 0.00 | 2.42 | 0.00 | 1.43 | 24.57 | 166.89 | 8.51 | 345.64 | 0.5451 | -631.0 | -547.7 | |
| 0.00 | 1.04 | 0.00 | 0.60 | 23.28 | 166.81 | 8.43 | 345.12 | 0.5265 | -755.0 | -612.6 | |
| 0.00 | 3.71 | 0.00 | 2.18 | 24.15 | 166.70 | 8.32 | 345.74 | 0.5384 | -567.0 | -531.9 | |
| 0.00 | 1.30 | 0.00 | 0.74 | 21.52 | 166.12 | 7.74 | 345.38 | 0.4984 | 729.0 | 597.9 | |
| 5.44 | 785.36 | 3.12 | 455.22 | 21.96 | 165.91 | 7.54 | 345.97 | 0.5041 | -772.6 | 316.5 | |
| 0.00 | 1.99 | 0.00 | 1.18 | 25.43 | 166.05 | 7.68 | 347.38 | 0.5545 | -438.0 | -343.8 | |
| 3.89 | -14.00 | 2.23 | -14.00 | 22.30 | 165.71 | 7.33 | 346.52 | 0.5083 | -670.6 | 999999 | |
| 0.35 | 3.11 | 0.20 | 1.83 | 24.65 | 165.84 | 7.46 | 347.39 | 0.5428 | -685.0 | -490.2 | |
| 13.99 | -14.00 | 7.98 | -14.00 | 21.65 | 165.61 | 7.23 | 346.37 | 0.4984 | -991.3 | 999999 | |
| 0.00 | 1.64 | 0.00 | 0.96 | 24.41 | 165.59 | 7.22 | 347.68 | 0.5384 | -640.0 | -518.3 | |
| 0.00 | 0.95 | 0.00 | 0.55 | 22.74 | 165.47 | 7.09 | 347.14 | 0.5139 | -716.0 | -595.7 | |
| 0.78 | -14.00 | 0.44 | -14.00 | 21.44 | 165.21 | 6.84 | 346.99 | 0.4939 | -908.8 | 999999 | |
| 1.90 | -14.00 | 1.11 | -14.00 | 24.40 | 165.27 | 6.89 | 348.22 | 0.5373 | -557.1 | 999999 | |
| 1.55 | -14.00 | 0.91 | -14.00 | 24.08 | 165.18 | 6.81 | 348.23 | 0.5325 | -809.8 | 999999 | |
| 0.00 | 3.02 | 0.00 | 1.73 | 21.88 | 164.91 | 6.53 | 347.74 | 0.4994 | -178.0 | -172.5 | |
| 0.00 | 1.55 | 0.00 | 0.91 | 24.78 | 165.02 | 6.65 | 348.78 | 0.5421 | -327.0 | -262.1 | |
| 0.00 | 3.71 | 0.00 | 2.11 | 21.30 | 164.72 | 6.35 | 347.82 | 0.4902 | -852.0 | -651.5 | |
| 3.97 | -14.00 | 2.30 | -14.00 | 23.17 | 164.61 | 6.24 | 348.83 | 0.5176 | 772.6 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.65 | 23.69 | 164.61 | 6.23 | 349.05 | 0.5252 | 447.0 | 309.4 | |
| 1.12 | -14.00 | 0.65 | -14.00 | 22.93 | 164.41 | 6.03 | 349.09 | 0.5134 | 842.2 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.68 | 21.15 | 164.27 | 5.89 | 348.61 | 0.4867 | -601.0 | -413.4 | |
| 0.00 | 2.50 | 0.00 | 1.45 | 23.58 | 164.34 | 5.96 | 349.46 | 0.5229 | 664.0 | 517.4 | |
| 12.26 | -14.00 | 7.06 | -14.00 | 22.82 | 164.21 | 5.83 | 349.40 | 0.5113 | 966.7 | 999999 | |
| 3.97 | -14.00 | 2.27 | -14.00 | 22.20 | 163.96 | 5.58 | 349.61 | 0.5014 | 815.2 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.67 | 26.07 | 163.80 | 5.42 | 351.21 | 0.5576 | 629.0 | 537.5 | |
| 0.00 | 3.02 | 0.00 | 1.71 | 21.48 | 163.22 | 4.85 | 350.70 | 0.4887 | -644.0 | -626.2 | |
| 0.00 | 1.12 | 0.00 | 0.63 | 20.87 | 163.20 | 4.83 | 350.52 | 0.4795 | -906.0 | -781.2 | |
| 0.00 | 1.73 | 0.00 | 0.98 | 21.17 | 163.08 | 4.71 | 350.86 | 0.4837 | -834.0 | -698.2 | |
| 0.00 | 0.86 | 0.00 | 0.49 | 21.38 | 163.06 | 4.68 | 350.98 | 0.4867 | -399.0 | -359.5 | |
| 0.00 | 1.12 | 0.00 | 0.63 | 20.77 | 163.01 | 4.63 | 350.86 | 0.4774 | -810.0 | -654.2 | |
| 0.00 | 1.47 | 0.00 | 0.84 | 21.99 | 163.05 | 4.67 | 351.21 | 0.4959 | -191.0 | -170.2 | |
| 0.00 | 1.38 | 0.00 | 0.78 | 20.66 | 162.75 | 4.37 | 351.33 | 0.4752 | -756.0 | -636.3 | |
| 0.00 | 1.38 | 0.00 | 0.76 | 18.72 | 162.45 | 4.07 | 351.27 | 0.4447 | 881.0 | 740.8 | |
| 102.06 | -14.00 | 59.28 | -14.00 | 23.98 | 162.43 | 4.06 | 352.89 | 0.5243 | 1171.3 | 999999 | |
| 1.99 | 16.92 | 1.13 | 9.64 | 22.05 | 162.34 | 3.97 | 352.53 | 0.4953 | 674.8 | 681.7 | |
| 1.12 | 2.16 | 0.64 | 1.23 | 21.81 | 161.92 | 3.54 | 353.26 | 0.4909 | 757.7 | 621.5 | |
| 1.81 | -44.00 | 1.03 | -44.00 | 22.28 | 161.77 | 3.39 | 353.66 | 0.4978 | 1002.2 | 999999 | |
| 2.07 | 2.76 | 1.25 | 1.67 | 27.49 | 161.78 | 3.41 | 354.71 | 0.5743 | 793.2 | 693.9 | |
| 1.12 | 1.81 | 0.64 | 1.03 | 22.38 | 161.39 | 3.01 | 354.39 | 0.4987 | 856.8 | 842.0 | |
| 0.00 | 1.21 | 0.00 | 0.69 | 21.70 | 161.34 | 2.96 | 354.33 | 0.4883 | 864.0 | 698.4 | |
| 0.00 | 1.30 | 0.00 | 0.74 | 21.94 | 161.22 | 2.84 | 354.62 | 0.4917 | 845.0 | 651.1 | |
| 0.00 | 3.45 | 0.00 | 2.06 | 26.33 | 161.28 | 2.91 | 355.30 | 0.5571 | 603.0 | 500.2 | |
| 0.00 | 1.30 | 0.00 | 0.74 | 22.76 | 161.07 | 2.69 | 355.05 | 0.5040 | 405.0 | 387.6 | |
| 0.00 | 1.81 | 0.00 | 1.03 | 22.24 | 160.96 | 2.59 | 355.15 | 0.4960 | -141.0 | -102.1 | |
| 0.00 | 1.38 | 0.00 | 0.82 | 26.29 | 160.95 | 2.57 | 355.83 | 0.5561 | 804.0 | 695.4 | |
| 3.97 | 6.13 | 2.37 | 3.66 | 26.58 | 160.89 | 2.51 | 355.97 | 0.5602 | 794.5 | 579.9 | |
| 0.00 | 2.24 | 0.00 | 1.35 | 27.48 | 160.84 | 2.47 | 356.17 | 0.5731 | 880.0 | 600.9 | |
| 0.00 | 1.12 | 0.00 | 0.67 | 25.97 | 160.45 | 2.07 | 356.61 | 0.5510 | 788.0 | 627.2 | |
| 0.00 | 1.99 | 0.00 | 1.19 | 26.86 | 159.89 | 1.52 | 357.59 | 0.5635 | 762.0 | 494.0 | |
| 0.00 | 1.47 | 0.00 | 0.88 | 27.11 | 159.83 | 1.46 | 357.71 | 0.5671 | 740.0 | 603.5 | |
| 19.34 | 89.28 | 11.77 | 54.45 | 28.24 | 159.14 | 0.76 | 358.84 | 0.5829 | -881.6 | -98.5 | |
| 1.47 | 3.45 | 0.87 | 2.05 | 26.36 | 158.99 | 0.62 | 359.00 | 0.5558 | 834.1 | 630.0 | |
| 0.00 | 1.99 | 0.00 | 1.17 | 25.33 | 158.82 | 0.45 | 359.25 | 0.5407 | 590.0 | 604.5 | |
| 0.00 | 1.81 | 0.00 | 1.10 | 28.16 | 158.67 | 0.29 | 359.56 | 0.5818 | -779.0 | -630.0 | |
| 0.00 | 1.12 | 0.00 | 0.67 | 26.54 | 158.66 | 0.28 | 359.54 | 0.5583 | 547.0 | 457.3 | |
| 0.00 | 1.55 | 0.00 | 0.93 | 26.75 | 158.66 | 0.29 | 359.54 | 0.5615 | 433.0 | 377.9 | |
| 0.00 | 0.95 | 0.00 | 0.55 | 24.73 | 158.59 | 0.22 | 359.63 | 0.5318 | 675.0 | 533.9 | |
| 0.00 | 1.55 | 0.00 | 0.91 | 25.19 | 158.53 | 0.15 | 359.75 | 0.5385 | 532.0 | 425.9 | |
| 0.00 | 1.12 | 0.00 | 0.67 | 26.50 | 158.36 | -0.01 | 0.02 | 0.5578 | 617.0 | 532.1 | |
| 0.00 | 2.59 | 0.00 | 1.58 | 28.24 | 158.29 | -0.08 | 0.12 | 0.5828 | -737.0 | -550.1 | |
| 0.00 | 1.30 | 0.00 | 0.77 | 26.32 | 158.20 | -0.18 | 0.29 | 0.5552 | 572.0 | 470.1 | |
| 0.00 | 0.52 | 0.00 | 0.31 | 25.54 | 158.16 | -0.21 | 0.35 | 0.5437 | 720.0 | 559.8 | |
| 0.00 | 0.95 | 0.00 | 0.56 | 26.21 | 157.60 | -0.78 | 1.26 | 0.5538 | -416.0 | -382.4 | |
| 0.00 | 0.60 | 0.00 | 0.37 | 28.53 | 157.48 | -0.89 | 1.34 | 0.5871 | -296.0 | -241.9 | |
| 0.00 | 1.30 | 0.00 | 0.78 | 27.66 | 157.42 | -0.95 | 1.48 | 0.5747 | -594.0 | -549.5 | |
| 0.00 | 1.04 | 0.00 | 0.63 | 27.80 | 157.32 | -1.06 | 1.63 | 0.5768 | -660.0 | -584.1 | |
| 0.00 | 0.78 | 0.00 | 0.47 | 27.84 | 157.15 | -1.22 | 1.88 | 0.5774 | -557.0 | -406.2 | |
| 0.00 | 3.80 | 0.00 | 2.34 | 29.16 | 157.07 | -1.31 | 1.92 | 0.5962 | -708.0 | -550.2 | |
| 0.00 | 1.81 | 0.00 | 1.12 | 29.64 | 157.03 | -1.35 | 1.95 | 0.6029 | -660.0 | -557.6 | |
| 0.00 | 1.21 | 0.00 | 0.69 | 22.37 | 157.04 | -1.33 | 2.49 | 0.4968 | 695.0 | 535.6 | |
| 0.00 | 1.30 | 0.00 | 0.80 | 29.46 | 156.79 | -1.59 | 2.31 | 0.6005 | -618.0 | -597.8 | |
| 1.30 | 2.76 | 0.80 | 1.70 | 29.05 | 156.76 | -1.61 | 2.38 | 0.5948 | -715.2 | -629.6 | |
| 0.00 | 0.69 | 0.00 | 0.43 | 29.20 | 156.76 | -1.62 | 2.37 | 0.5969 | -553.0 | -491.6 | |
| 0.00 | 2.07 | 0.00 | 1.28 | 29.64 | 156.62 | -1.76 | 2.55 | 0.6032 | -514.0 | -405.9 | |
| 0.00 | 1.73 | 0.00 | 1.11 | 32.07 | 156.19 | -2.19 | 2.93 | 0.6368 | -746.0 | -541.8 | |
| 0.00 | 1.04 | 0.00 | 0.65 | 30.17 | 156.13 | -2.25 | 3.20 | 0.6108 | -539.0 | -441.5 | |
| 0.00 | 0.43 | 0.00 | 0.27 | 29.35 | 156.04 | -2.33 | 3.41 | 0.5995 | -632.0 | -622.0 | |
| 0.00 | 1.47 | 0.00 | 0.92 | 30.78 | 155.66 | -2.71 | 3.78 | 0.6196 | -623.0 | -512.4 | |
| 0.00 | 3.89 | 0.00 | 2.41 | 29.76 | 155.62 | -2.76 | 3.97 | 0.6056 | -790.0 | -667.6 | |
| 0.00 | 1.64 | 0.00 | 1.03 | 30.55 | 155.39 | -2.99 | 4.19 | 0.6167 | -530.0 | -477.4 | |
| 0.00 | 0.78 | 0.00 | 0.49 | 30.36 | 155.29 | -3.08 | 4.35 | 0.6143 | -635.0 | -584.3 | |
| 0.00 | 1.30 | 0.00 | 0.83 | 31.51 | 154.10 | -4.27 | 5.80 | 0.6313 | -554.0 | -476.3 | |
| 0.00 | 1.30 | 0.00 | 0.81 | 29.89 | 153.80 | -4.58 | 6.54 | 0.6097 | -818.0 | -661.1 | |
| 0.00 | 1.47 | 0.00 | 0.92 | 30.15 | 153.51 | -4.87 | 6.89 | 0.6138 | -594.0 | -487.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
