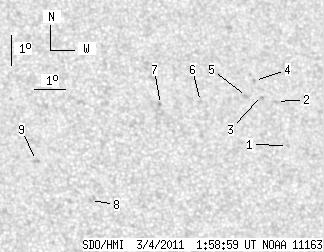

SDO HMI 2011-03-04 01:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.04 | 0.00 | 7.55 | 17.96 | 175.91 | 18.08 | 325.17 | 0.5158 | -350.2 | -269.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-03-04 01:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.04 | 0.00 | 0.61 | 17.28 | 178.93 | 21.10 | 319.83 | 0.5350 | -557.0 | -507.8 | |
| 0.00 | 1.47 | 0.00 | 0.87 | 18.72 | 178.74 | 20.91 | 321.83 | 0.5492 | -708.0 | -525.6 | |
| 0.00 | 0.52 | 0.00 | 0.31 | 18.89 | 178.26 | 20.43 | 322.68 | 0.5469 | -433.0 | -520.0 | |
| 0.00 | 1.21 | 0.00 | 0.72 | 19.38 | 178.09 | 20.26 | 323.47 | 0.5509 | -709.0 | -580.5 | |
| 0.00 | 2.33 | 0.00 | 1.37 | 18.84 | 177.75 | 19.92 | 323.30 | 0.5418 | -599.0 | -497.6 | |
| 0.00 | 1.90 | 0.00 | 1.10 | 18.60 | 176.19 | 18.36 | 325.23 | 0.5256 | -808.0 | -632.3 | |
| 0.00 | 1.12 | 0.00 | 0.65 | 18.45 | 174.86 | 17.03 | 327.04 | 0.5127 | -820.0 | -671.7 | |
| 0.00 | 1.38 | 0.00 | 0.77 | 15.23 | 172.32 | 14.49 | 327.47 | 0.4510 | 746.0 | 553.3 | |
| 0.00 | 2.07 | 0.00 | 1.15 | 16.47 | 170.69 | 12.86 | 331.87 | 0.4547 | 736.0 | 606.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
