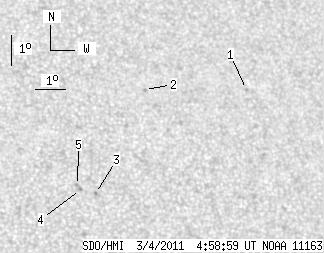

SDO HMI 2011-03-04 04:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.14 | 0.00 | 3.49 | 16.53 | 174.16 | 17.98 | 323.47 | 0.4971 | 184.6 | 198.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-03-04 04:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.21 | 0.00 | 0.72 | 18.73 | 178.35 | 22.16 | 320.23 | 0.5606 | -646.0 | -453.2 | |
| 0.00 | 1.04 | 0.00 | 0.60 | 18.56 | 174.91 | 18.72 | 324.66 | 0.5282 | -735.0 | -641.9 | |
| 0.00 | 0.86 | 0.00 | 0.48 | 15.10 | 172.97 | 16.79 | 323.38 | 0.4693 | 774.0 | 674.6 | |
| 0.00 | 1.47 | 0.00 | 0.82 | 15.21 | 172.50 | 16.31 | 324.30 | 0.4664 | 795.0 | 665.5 | |
| 0.00 | 1.56 | 0.00 | 0.87 | 15.34 | 172.41 | 16.23 | 324.60 | 0.4672 | 735.0 | 618.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
