SDO HMI 2011-03-04 06:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.37 | 0.00 | 5.88 | -23.43 | 180.40 | 25.31 | 233.35 | 0.4905 | -422.5 | -373.4 | |
|
previous
or next observation for the same group /

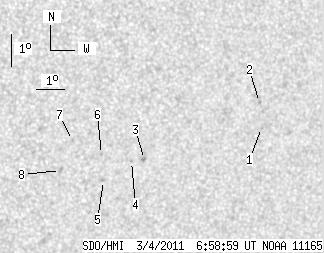

back to the solar disc SDO HMI 2011-03-04 06:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.04 | 0.00 | 0.61 | -22.43 | 184.68 | 29.59 | 238.74 | 0.5360 | 506.0 | 492.8 | |
| 0.00 | 1.30 | 0.00 | 0.76 | -21.67 | 184.43 | 29.34 | 239.89 | 0.5285 | 698.0 | 578.5 | |
| 0.00 | 1.81 | 0.00 | 1.03 | -23.64 | 180.68 | 25.59 | 233.42 | 0.4947 | -756.0 | -685.2 | |
| 0.00 | 0.86 | 0.00 | 0.49 | -23.73 | 180.23 | 25.14 | 232.85 | 0.4899 | -758.0 | -629.9 | |
| 0.00 | 1.30 | 0.00 | 0.73 | -24.37 | 179.36 | 24.26 | 230.87 | 0.4845 | -823.0 | -722.6 | |
| 0.00 | 0.95 | 0.00 | 0.53 | -23.57 | 179.13 | 24.03 | 232.06 | 0.4753 | -735.0 | -587.4 | |
| 0.00 | 0.78 | 0.00 | 0.43 | -23.18 | 178.03 | 22.94 | 231.62 | 0.4589 | -763.0 | -544.4 | |
| 0.00 | 2.33 | 0.00 | 1.30 | -24.13 | 177.78 | 22.69 | 229.63 | 0.4640 | -749.0 | -644.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
