group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
11164	268.03	1468.61	160.80	882.25	24.04	164.30	14.14	336.68	0.5658	126.6	34.4

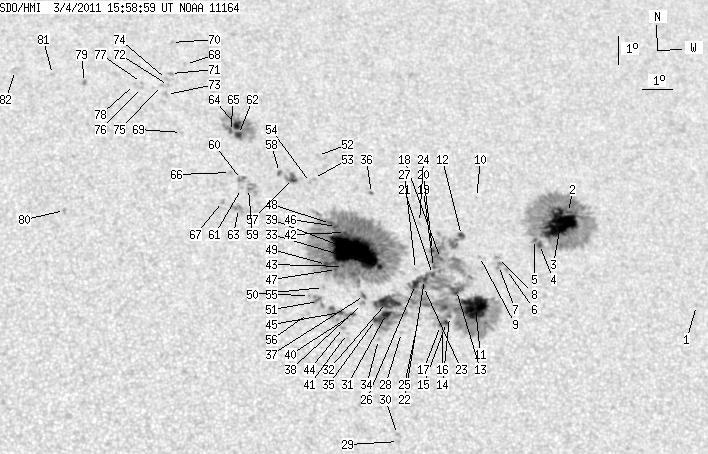

previous   or   next   observation for the same group / back to the solar disc SDO HMI 2011-03-04 15:58:59 UT See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	0.00	1.30	0.00	0.81	22.63	173.77	23.61	322.87	0.6147	613.0	429.3
2	2.07	298.94	1.30	186.70	25.67	169.82	19.66	330.53	0.6186	-542.8	-323.6
3	49.74	-2.00	31.06	-2.00	25.26	169.47	19.31	330.60	0.6116	-1159.1	999999
4	2.85	-2.00	1.76	-2.00	24.49	168.62	18.46	331.00	0.5967	-1005.4	999999
5	1.30	-2.00	0.80	-2.00	24.66	168.47	18.31	331.34	0.5977	-843.1	999999
6	0.00	0.86	0.00	0.52	23.57	167.36	17.20	331.87	0.5770	-832.0	-712.8
7	0.00	3.37	0.00	2.04	23.70	167.10	16.94	332.33	0.5769	-882.0	-780.3
8	0.00	1.90	0.00	1.15	23.97	167.11	16.95	332.57	0.5804	-853.0	-689.2
9	0.00	1.12	0.00	0.68	23.98	166.50	16.34	333.42	0.5766	-655.0	-478.6
10	0.00	0.86	0.00	0.54	26.06	166.68	16.52	334.86	0.6035	-598.0	-494.6
11	36.18	477.68	21.46	282.76	22.22	166.14	15.98	332.38	0.5520	-1143.8	-131.6
12	2.76	-11.00	1.68	-11.00	24.70	165.98	15.82	334.73	0.5823	-670.0	999999
13	7.86	-11.00	4.67	-11.00	22.78	165.57	15.41	333.71	0.5554	-694.0	999999
14	1.12	-11.00	0.66	-11.00	21.88	165.24	15.08	333.42	0.5416	-822.7	999999
15	1.81	-11.00	1.06	-11.00	21.67	165.12	14.96	333.42	0.5381	-944.1	999999
16	0.00	1.64	0.00	0.96	21.39	164.95	14.80	333.42	0.5335	-809.0	-696.1
17	1.30	-11.00	0.76	-11.00	21.56	164.91	14.75	333.64	0.5353	-953.5	999999
18	1.12	-11.00	0.67	-11.00	23.86	165.16	15.00	335.21	0.5668	-628.5	999999
19	1.21	-11.00	0.72	-11.00	23.54	164.89	14.73	335.35	0.5610	542.3	999999
20	1.47	-11.00	0.88	-11.00	24.13	164.93	14.77	335.77	0.5689	653.6	999999
21	1.55	-11.00	0.93	-11.00	23.30	164.83	14.67	335.24	0.5575	667.4	999999
22	2.33	-11.00	1.38	-11.00	23.12	164.54	14.38	335.52	0.5534	752.0	999999
23	1.47	-11.00	0.87	-11.00	22.87	164.48	14.32	335.41	0.5499	600.9	999999
24	0.00	1.38	0.00	0.84	25.10	164.60	14.44	336.97	0.5795	-743.0	-472.9
25	0.00	1.81	0.00	1.06	21.77	164.20	14.04	334.92	0.5337	-309.0	-191.4
26	4.58	-11.00	2.71	-11.00	22.93	164.22	14.06	335.85	0.5491	912.8	999999
27	0.00	1.12	0.00	0.67	23.45	164.28	14.12	336.18	0.5562	517.0	395.2
28	0.00	1.38	0.00	0.80	21.28	163.59	13.43	335.46	0.5233	521.0	298.6
29	0.00	1.38	0.00	0.78	17.64	163.19	13.03	332.76	0.4715	810.0	605.0
30	0.00	1.55	0.00	0.87	17.87	163.18	13.02	333.02	0.4746	755.0	603.0
31	3.89	-11.00	2.26	-11.00	21.91	163.16	13.00	336.67	0.5292	1028.1	999999
32	21.24	-11.00	12.43	-11.00	22.29	163.20	13.04	336.92	0.5345	915.1	999999
33	1.47	500.65	0.87	297.37	23.52	163.09	12.93	338.03	0.5504	1081.6	370.5
34	0.00	1.30	0.00	0.75	21.02	162.82	12.66	336.50	0.5151	-711.0	-577.0
35	1.55	-11.00	0.90	-11.00	21.69	162.78	12.62	337.11	0.5241	888.6	999999
36	1.12	1.38	0.68	0.84	26.08	163.09	12.93	339.80	0.5844	-431.9	-452.0
37	1.04	3.02	0.61	1.77	22.50	162.49	12.33	338.20	0.5335	729.1	738.7
38	0.00	2.33	0.00	1.36	22.23	162.40	12.24	338.14	0.5292	916.0	791.1
39	87.30	-33.00	51.81	-33.00	24.02	162.30	12.14	339.58	0.5530	1321.5	999999
40	2.07	23.66	1.20	13.69	21.84	162.04	11.88	338.44	0.5220	775.2	734.6
41	0.00	0.69	0.00	0.40	21.19	161.82	11.66	338.30	0.5118	712.0	535.8
42	1.04	-33.00	0.62	-33.00	24.67	162.07	11.91	340.39	0.5607	587.6	999999
43	0.52	-33.00	0.31	-33.00	23.48	161.89	11.73	339.86	0.5436	1386.8	999999
44	0.00	1.99	0.00	1.14	21.39	161.71	11.55	338.64	0.5139	717.0	661.1
45	2.33	-40.00	1.35	-40.00	21.90	161.65	11.49	339.12	0.5207	1054.1	999999
46	1.38	-33.00	0.83	-33.00	24.87	161.78	11.62	340.94	0.5621	497.9	999999
47	0.86	-33.00	0.51	-33.00	23.37	161.65	11.49	340.17	0.5409	1007.6	999999
48	1.81	-33.00	1.08	-33.00	24.97	161.59	11.43	341.30	0.5625	616.4	999999
49	2.76	-33.00	1.63	-33.00	23.54	161.33	11.17	340.78	0.5416	1067.5	999999
50	0.00	1.04	0.00	0.60	22.74	161.16	11.00	340.51	0.5298	780.0	612.1
51	0.00	8.29	0.00	4.81	22.26	160.96	10.80	340.52	0.5221	757.0	896.4
52	0.00	1.21	0.00	0.74	27.39	161.39	11.23	343.01	0.5942	684.0	597.3
53	0.00	1.64	0.00	1.00	26.56	161.17	11.01	342.86	0.5821	620.0	535.8
54	0.00	0.95	0.00	0.58	26.41	161.06	10.90	342.95	0.5796	707.0	495.7
55	0.00	1.55	0.00	0.90	22.45	160.68	10.52	341.11	0.5235	840.0	713.9
56	0.00	1.21	0.00	0.70	21.84	160.60	10.44	340.83	0.5145	786.0	588.8
57	5.27	8.03	3.19	4.87	26.54	160.46	10.30	343.90	0.5790	842.2	822.3
58	1.81	2.07	1.10	1.26	26.75	160.04	9.88	344.62	0.5801	742.9	750.0
59	0.35	11.05	0.21	6.64	26.15	158.95	8.79	345.97	0.5680	897.2	723.1
60	0.00	5.87	0.00	3.54	26.47	158.74	8.58	346.44	0.5717	829.0	684.4
61	0.00	0.95	0.00	0.57	26.14	158.71	8.55	346.33	0.5671	557.0	538.8
62	3.80	56.30	2.33	34.72	28.09	158.76	8.60	347.12	0.5941	-968.4	-213.7
63	0.00	7.17	0.00	4.27	25.43	158.56	8.40	346.23	0.5566	904.0	786.2
64	4.32	-62.00	2.66	-62.00	28.42	158.72	8.56	347.31	0.5985	-821.7	999999
65	1.38	-62.00	0.85	-62.00	28.20	158.50	8.34	347.54	0.5947	-935.0	999999
66	0.00	1.99	0.00	1.20	26.71	158.39	8.23	347.08	0.5739	755.0	618.9
67	0.00	2.25	0.00	1.34	25.67	158.05	7.89	347.15	0.5582	758.0	604.8
68	0.00	1.47	0.00	0.93	30.66	157.14	6.98	350.33	0.6245	-529.0	-485.9
69	0.00	0.95	0.00	0.58	28.13	156.83	6.67	349.95	0.5892	-523.0	-453.7
70	0.00	1.21	0.00	0.77	31.49	156.71	6.55	351.16	0.6346	-712.0	-601.1
71	0.00	2.07	0.00	1.30	30.31	156.59	6.43	350.97	0.6186	-597.0	-461.0
72	0.00	1.21	0.00	0.76	29.86	156.49	6.33	350.98	0.6123	-735.0	-635.3
73	0.00	1.81	0.00	1.13	29.52	156.40	6.24	351.01	0.6075	-745.0	-671.8
74	0.00	2.59	0.00	1.62	30.08	156.44	6.28	351.12	0.6152	-559.0	-478.2
75	0.00	1.38	0.00	0.86	29.86	156.25	6.09	351.32	0.6117	-556.0	-519.3
76	0.00	0.95	0.00	0.59	29.77	155.59	5.43	352.22	0.6093	-747.0	-575.5
77	0.00	0.95	0.00	0.59	29.96	155.57	5.41	352.30	0.6118	-705.0	-568.9
78	0.00	1.04	0.00	0.65	29.88	155.32	5.16	352.63	0.6103	-426.0	-487.2
79	0.00	1.64	0.00	1.02	29.94	153.60	3.44	355.07	0.6085	-933.0	-800.2
80	0.00	2.07	0.00	1.22	25.28	152.80	2.64	355.57	0.5412	709.0	585.3
81	0.00	1.81	0.00	1.13	30.23	152.51	2.35	356.66	0.6115	-637.0	-469.0
82	0.00	4.58	0.00	2.86	30.37	151.24	1.08	358.47	0.6127	-408.0	-457.0

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
