Sunspot Group 11164

group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

11164	309.27	1576.77	187.82	959.78	23.90	164.19	16.78	332.82	0.5801	99.4	1.2

previous or next observation for the same group / back to the solar disc

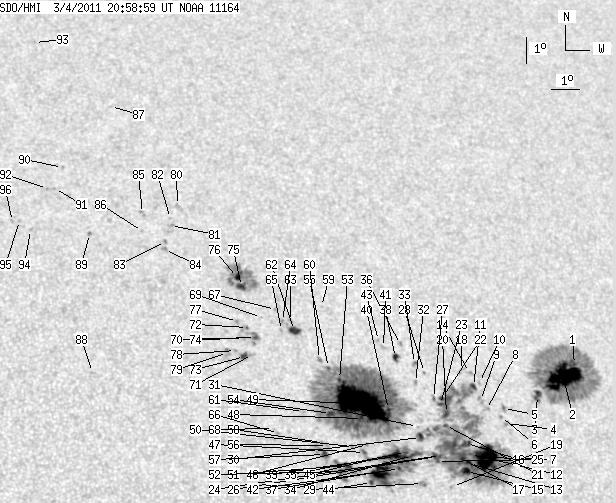

SDO HMI 2011-03-04 20:58:59 UT
No observation available

See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

1	0.43	282.94	0.28	180.34	25.69	169.94	22.53	327.16	0.6391	-412.0	-295.9
2	52.84	-1.00	33.65	-1.00	25.24	169.46	22.05	327.29	0.6308	-1101.0	999999
3	6.13	-1.00	3.84	-1.00	24.52	168.41	21.01	327.85	0.6151	-897.9	999999
4	0.00	2.76	0.00	1.70	23.49	167.16	19.76	328.42	0.5942	-833.0	-726.2
5	0.00	2.68	0.00	1.65	24.01	167.14	19.74	328.94	0.6001	-763.0	-584.3
6	0.00	1.47	0.00	0.90	23.72	166.99	19.59	328.86	0.5957	-903.0	-788.9
7	37.65	589.37	22.72	353.66	22.28	166.30	18.89	328.38	0.5737	-1046.5	-167.7
8	0.00	2.24	0.00	1.38	23.95	166.54	19.14	329.64	0.5951	-712.0	-637.6
9	0.00	3.37	0.00	2.08	24.25	166.38	18.98	330.13	0.5976	-672.0	-651.0
10	0.00	0.86	0.00	0.54	24.88	166.45	19.05	330.61	0.6055	-570.0	-384.7
11	2.76	-7.00	1.71	-7.00	24.73	166.22	18.81	330.77	0.6022	-803.8	999999
12	1.21	-7.00	0.73	-7.00	22.36	165.76	18.36	329.17	0.5707	-647.7	999999
13	3.28	-7.00	1.97	-7.00	22.05	165.69	18.29	328.98	0.5664	-1098.5	999999
14	0.00	1.64	0.00	1.02	25.22	166.15	18.75	331.28	0.6075	-397.0	-409.4
15	4.84	-7.00	2.89	-7.00	21.78	165.55	18.15	328.89	0.5621	-1156.3	999999
16	5.18	-7.00	3.13	-7.00	22.74	165.68	18.28	329.65	0.5746	-972.7	999999
17	1.38	-7.00	0.83	-7.00	22.18	165.47	18.07	329.40	0.5663	-1039.7	999999
18	0.00	3.37	0.00	2.09	25.28	165.89	18.48	331.67	0.6065	-559.0	-446.7
19	0.00	1.47	0.00	0.87	21.25	165.01	17.61	329.12	0.5516	-911.0	-716.2
20	3.97	-7.00	2.42	-7.00	23.75	165.14	17.74	331.31	0.5831	-362.4	999999
21	1.38	-7.00	0.84	-7.00	23.33	165.05	17.65	331.05	0.5773	613.6	999999
22	1.81	-7.00	1.11	-7.00	24.26	165.04	17.64	331.89	0.5887	636.6	999999
23	1.81	-7.00	1.11	-7.00	24.05	164.98	17.58	331.79	0.5857	497.1	999999
24	0.60	-7.00	0.36	-7.00	22.29	164.74	17.34	330.51	0.5624	-160.6	999999
25	1.81	-7.00	1.08	-7.00	22.08	164.61	17.21	330.50	0.5589	-472.3	999999
26	3.63	-7.00	2.17	-7.00	22.25	164.60	17.20	330.67	0.5609	353.0	999999
27	1.04	2.76	0.63	1.69	24.25	164.77	17.37	332.25	0.5867	525.2	542.3
28	0.00	1.12	0.00	0.69	25.16	164.59	17.19	333.26	0.5966	-597.0	-444.7
29	0.00	3.97	0.00	2.34	21.31	164.02	16.62	330.62	0.5451	-544.0	-575.8
30	3.71	-7.00	2.23	-7.00	22.88	164.14	16.74	331.90	0.5656	832.2	999999
31	0.00	1.04	0.00	0.62	23.26	164.09	16.69	332.31	0.5699	523.0	419.2
32	0.00	1.38	0.00	0.85	24.79	164.23	16.83	333.43	0.5899	523.0	391.7
33	0.00	2.33	0.00	1.44	25.46	164.29	16.89	333.90	0.5985	735.0	574.7
34	1.90	-7.00	1.13	-7.00	22.25	163.80	16.39	331.82	0.5554	527.3	999999
35	1.64	-7.00	0.98	-7.00	22.34	163.57	16.17	332.23	0.5551	550.4	999999
36	0.00	1.55	0.00	0.96	26.12	163.90	16.50	334.94	0.6043	199.0	286.8
37	1.47	-7.00	0.87	-7.00	21.79	163.31	15.90	332.11	0.5462	649.8	999999
38	2.85	4.58	1.76	2.82	25.65	163.66	16.26	334.89	0.5970	-735.8	-507.0
39	11.83	-7.00	7.01	-7.00	22.19	163.19	15.78	332.66	0.5506	738.2	999999
40	1.21	509.85	0.73	306.41	23.81	163.18	15.78	334.07	0.5710	643.9	369.6
41	0.00	2.24	0.00	1.39	25.99	163.30	15.90	335.64	0.5992	-857.0	-668.0
42	17.61	-7.00	10.35	-7.00	21.66	162.69	15.29	332.92	0.5405	955.4	999999
43	0.00	1.21	0.00	0.75	26.23	163.16	15.76	336.01	0.6014	-731.0	-573.4
44	1.99	-7.00	1.16	-7.00	21.28	162.32	14.92	333.13	0.5330	-579.1	999999
45	1.12	7.43	0.66	4.38	22.06	162.41	15.00	333.70	0.5438	580.5	727.4
46	0.00	1.30	0.00	0.77	22.57	162.33	14.93	334.26	0.5499	708.0	607.1
47	1.04	-45.00	0.61	-45.00	22.29	162.20	14.80	334.22	0.5454	913.8	999999
48	0.60	-40.00	0.36	-40.00	23.46	162.26	14.86	335.10	0.5610	1320.7	999999
49	93.85	-40.00	56.38	-40.00	23.98	162.26	14.86	335.53	0.5677	1271.0	999999
50	0.00	1.30	0.00	0.76	22.48	161.79	14.39	335.00	0.5454	722.0	632.9
51	4.32	-7.00	2.53	-7.00	21.83	161.55	14.15	334.81	0.5353	855.7	999999
52	2.94	-7.00	1.71	-7.00	21.62	161.40	14.00	334.87	0.5316	937.6	999999
53	1.04	-40.00	0.63	-40.00	24.80	161.65	14.24	337.04	0.5747	652.0	999999
54	3.28	-40.00	1.95	-40.00	23.60	161.21	13.81	336.77	0.5566	986.9	999999
55	1.38	-40.00	0.84	-40.00	25.21	161.32	13.92	337.80	0.5783	468.4	999999
56	0.00	2.07	0.00	1.22	22.49	160.99	13.59	336.22	0.5407	718.0	544.5
57	3.54	12.26	2.07	7.18	22.18	160.86	13.46	336.18	0.5357	976.1	790.2
58	0.00	0.86	0.00	0.51	22.59	160.80	13.40	336.59	0.5408	874.0	768.5
59	0.00	1.04	0.00	0.64	27.39	161.35	13.95	339.25	0.6065	604.0	482.3
60	0.00	3.02	0.00	1.83	25.48	161.05	13.65	338.38	0.5804	753.0	511.8
61	0.00	1.04	0.00	0.61	23.64	160.31	12.91	338.15	0.5521	699.0	565.2
62	6.56	7.51	4.02	4.60	26.49	160.32	12.91	340.10	0.5899	851.4	668.4
63	0.00	2.16	0.00	1.33	26.81	160.22	12.81	340.44	0.5936	644.0	533.2
64	0.00	1.55	0.00	0.95	26.80	159.94	12.54	340.82	0.5922	811.0	686.1
65	0.00	1.55	0.00	0.95	26.48	159.87	12.47	340.72	0.5876	809.0	644.3
66	0.00	1.38	0.00	0.81	22.86	159.41	12.01	338.99	0.5367	784.0	649.8
67	0.00	1.12	0.00	0.69	27.23	159.75	12.35	341.35	0.5970	566.0	465.2
68	0.00	0.35	0.00	0.20	23.02	159.26	11.86	339.35	0.5382	527.0	539.5
69	0.00	0.60	0.00	0.37	26.93	159.24	11.84	341.89	0.5907	514.0	434.6
70	1.55	9.67	0.94	5.87	26.20	158.96	11.56	341.87	0.5798	900.5	738.8
71	0.00	2.24	0.00	1.35	25.59	158.80	11.40	341.74	0.5709	665.0	624.2
72	0.86	3.97	0.53	2.42	26.55	158.72	11.32	342.41	0.5835	765.1	611.8
73	3.11	3.89	1.87	2.34	25.51	158.52	11.12	342.10	0.5686	955.6	867.2
74	0.00	1.55	0.00	0.94	26.15	158.55	11.15	342.44	0.5774	791.0	641.3
75	5.44	54.05	3.37	33.63	28.03	158.67	11.27	343.31	0.6030	-865.6	-229.0
76	2.68	-75.00	1.66	-75.00	28.36	158.57	11.17	343.63	0.6069	-795.8	999999
77	0.00	1.21	0.00	0.74	26.76	158.41	11.00	342.99	0.5849	701.0	576.1
78	0.00	1.38	0.00	0.83	25.72	158.24	10.84	342.65	0.5702	788.0	635.0
79	0.00	3.28	0.00	1.97	25.64	157.96	10.56	343.02	0.5680	589.0	679.2
80	0.00	1.99	0.00	1.27	30.99	156.76	9.35	347.28	0.6354	-610.0	-479.1
81	0.00	2.24	0.00	1.42	30.23	156.44	9.04	347.40	0.6244	-737.0	-548.3
82	0.00	0.86	0.00	0.55	30.49	156.46	9.06	347.47	0.6280	-477.0	-443.9
83	0.00	1.73	0.00	1.08	29.63	156.21	8.81	347.47	0.6157	-796.0	-650.8
84	0.00	2.59	0.00	1.62	29.33	156.15	8.75	347.43	0.6115	-599.0	-588.2
85	0.00	2.76	0.00	1.75	30.66	155.50	8.10	348.82	0.6275	-615.0	-493.6
86	0.00	0.95	0.00	0.60	29.98	155.44	8.04	348.66	0.6183	-530.0	-515.6
87	0.00	0.95	0.00	0.64	34.81	154.72	7.32	351.11	0.6795	-478.0	-370.5
88	0.00	1.38	0.00	0.81	24.85	153.42	6.02	349.83	0.5413	725.0	622.3
89	0.00	1.64	0.00	1.03	29.88	153.60	6.20	351.17	0.6125	-911.0	-766.9
90	0.00	1.38	0.00	0.89	32.37	152.81	5.41	352.87	0.6445	-523.0	-401.9
91	0.00	0.78	0.00	0.50	31.56	152.49	5.08	353.13	0.6332	-652.0	-532.3
92	0.00	1.04	0.00	0.66	31.56	152.24	4.84	353.45	0.6328	-656.0	-537.9
93	0.00	1.04	0.00	0.72	37.39	152.11	4.70	354.70	0.7077	-393.0	-369.6
94	0.00	1.04	0.00	0.65	30.00	151.58	4.18	354.05	0.6106	-769.0	-632.4
95	0.00	1.04	0.00	0.65	30.34	151.21	3.81	354.63	0.6147	-707.0	-530.4
96	0.00	1.38	0.00	0.86	30.30	150.97	3.57	354.96	0.6138	-703.0	-506.9

	Proj. U	- Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	- Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	- Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	- Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	- Heliographic latitude B; positive: North, negative: South
	L	- Heliographic longitude L
	LCM	- Longitudinal distance from the Sun's central meridian
	Pos. angle	- Position angle
	r	- Distance from the centre of Sun's disc in terms of Sun's radius
	MU	- Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	- Mean magnetic field within the penumbra contour averaged the pixel values with sign.
