Sunspot Group 11164

group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

11164	289.53	1568.99	176.11	957.98	23.85	164.22	17.37	332.01	0.5831	184.9	-28.9

previous or next observation for the same group / back to the solar disc

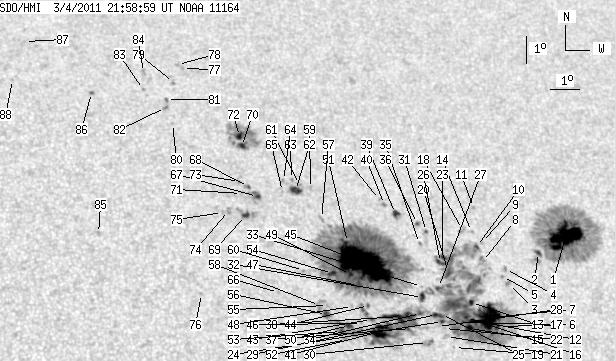

SDO HMI 2011-03-04 21:58:59 UT
No observation available

See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

1	46.72	278.65	29.88	178.47	25.23	169.48	22.63	326.62	0.6349	-1079.7	-310.0
2	2.16	8.64	1.36	5.43	24.61	168.41	21.55	327.28	0.6202	-927.1	-707.7
3	0.00	2.42	0.00	1.49	23.48	167.16	20.31	327.71	0.5982	-884.0	-748.1
4	0.00	2.25	0.00	1.39	23.96	167.14	20.29	328.20	0.6036	-813.0	-667.1
5	0.00	1.04	0.00	0.64	23.71	166.99	20.14	328.15	0.5997	-905.0	-779.8
6	1.47	607.21	0.89	365.48	21.98	166.59	19.74	326.96	0.5766	-860.0	-180.6
7	29.88	-6.00	18.10	-6.00	22.27	166.33	19.48	327.60	0.5780	-1039.9	999999
8	0.00	6.48	0.00	4.00	24.20	166.38	19.53	329.38	0.6009	-746.0	-613.1
9	0.00	1.21	0.00	0.75	24.87	166.46	19.60	329.90	0.6092	-571.0	-380.0
10	1.73	-6.00	1.07	-6.00	24.72	166.26	19.41	330.01	0.6061	-844.8	999999
11	0.00	1.47	0.00	0.93	26.10	166.39	19.53	331.07	0.6230	-593.0	-416.7
12	2.25	-6.00	1.35	-6.00	22.14	165.73	18.88	328.26	0.5719	-1105.0	999999
13	2.07	-6.00	1.26	-6.00	22.76	165.78	18.93	328.79	0.5797	-953.0	999999
14	0.00	1.04	0.00	0.65	25.24	166.17	19.32	330.59	0.6116	-616.0	-526.8
15	3.54	-6.00	2.13	-6.00	21.87	165.59	18.74	328.18	0.5676	-1198.2	999999
16	1.47	-6.00	0.88	-6.00	22.24	165.54	18.69	328.61	0.5716	-961.1	999999
17	0.95	-6.00	0.57	-6.00	22.06	165.38	18.53	328.65	0.5683	-935.5	999999
18	0.00	3.19	0.00	1.99	25.30	165.86	19.01	331.02	0.6102	-624.0	-527.4
19	0.00	0.86	0.00	0.51	21.20	165.00	18.14	328.32	0.5551	-848.0	-669.9
20	4.66	-6.00	2.85	-6.00	23.77	165.14	18.29	330.58	0.5871	-329.6	999999
21	0.00	3.19	0.00	1.90	21.56	164.77	17.92	329.00	0.5578	-281.0	-255.0
22	0.00	1.21	0.00	0.72	21.83	164.74	17.89	329.31	0.5608	-609.0	-494.1
23	2.25	-6.00	1.38	-6.00	24.32	165.02	18.17	331.24	0.5929	494.1	999999
24	1.04	-6.00	0.62	-6.00	22.07	164.70	17.85	329.59	0.5634	-689.2	999999
25	0.60	-6.00	0.36	-6.00	22.30	164.70	17.85	329.82	0.5663	-202.0	999999
26	3.71	-6.00	2.27	-6.00	24.10	164.92	18.07	331.19	0.5896	591.4	999999
27	1.21	-6.00	0.73	-6.00	23.23	164.73	17.88	330.65	0.5778	682.7	999999
28	0.00	1.30	0.00	0.77	21.89	164.51	17.66	329.68	0.5599	-341.0	-266.0
29	3.63	-6.00	2.17	-6.00	22.30	164.53	17.68	330.05	0.5650	393.0	999999
30	0.00	6.22	0.00	3.68	21.33	164.11	17.26	329.71	0.5501	-554.0	-560.9
31	0.95	1.64	0.59	1.01	25.17	164.60	17.75	332.54	0.6004	-344.2	-99.5
32	4.06	-6.00	2.44	-6.00	22.86	164.13	17.28	331.13	0.5691	803.6	999999
33	0.00	0.86	0.00	0.52	23.24	164.15	17.30	331.45	0.5739	443.0	340.1
34	1.81	-6.00	1.08	-6.00	22.31	163.99	17.14	330.81	0.5614	329.8	999999
35	0.00	1.30	0.00	0.80	24.74	164.29	17.44	332.57	0.5932	387.0	356.9
36	0.60	2.16	0.37	1.34	25.44	164.33	17.48	333.12	0.6020	599.9	457.6
37	0.69	-6.00	0.41	-6.00	21.78	163.59	16.74	330.89	0.5520	503.5	999999
38	18.91	-6.00	11.24	-6.00	22.18	163.31	16.46	331.67	0.5550	660.7	999999
39	2.94	4.40	1.82	2.73	25.77	163.62	16.77	334.31	0.6016	-707.5	-582.3
40	0.00	1.81	0.00	1.12	26.08	163.28	16.43	335.00	0.6034	-855.0	-721.3
41	14.85	-6.00	8.75	-6.00	21.64	162.58	15.73	332.25	0.5432	975.7	999999
42	0.00	1.12	0.00	0.70	26.25	163.13	16.28	335.33	0.6047	-816.0	-611.6
43	1.21	-6.00	0.71	-6.00	22.04	162.32	15.47	332.99	0.5466	684.0	999999
44	1.21	1.38	0.72	0.82	22.52	162.28	15.43	333.48	0.5524	735.7	788.0
45	94.29	489.26	56.79	294.95	23.97	162.32	15.47	334.64	0.5711	1216.1	359.2
46	0.00	0.86	0.00	0.51	21.89	161.97	15.12	333.38	0.5424	558.0	405.0
47	4.14	-45.00	2.47	-45.00	23.19	162.02	15.17	334.43	0.5595	1049.1	999999
48	0.00	1.30	0.00	0.77	22.46	161.74	14.89	334.23	0.5482	719.0	515.7
49	1.55	-45.00	0.93	-45.00	23.57	161.80	14.95	335.06	0.5629	1384.9	999999
50	3.45	-6.00	2.03	-6.00	21.81	161.57	14.72	333.92	0.5387	879.7	999999
51	0.95	-45.00	0.57	-45.00	24.68	161.83	14.98	335.90	0.5774	705.4	999999
52	0.00	3.11	0.00	1.81	21.33	161.42	14.57	333.73	0.5314	878.0	675.4
53	2.76	-6.00	1.62	-6.00	21.60	161.28	14.43	334.18	0.5340	968.5	999999
54	3.45	-45.00	2.06	-45.00	23.58	161.19	14.34	335.96	0.5594	1006.7	999999
55	0.00	1.55	0.00	0.92	22.47	160.91	14.06	335.49	0.5432	777.0	540.1
56	3.45	-6.00	2.03	-6.00	22.16	160.84	13.99	335.33	0.5387	953.7	999999
57	0.00	2.68	0.00	1.63	25.50	161.05	14.20	337.62	0.5835	650.0	507.7
58	0.00	7.17	0.00	4.22	22.46	160.64	13.79	335.89	0.5415	798.0	739.9
59	0.00	1.81	0.00	1.12	26.56	160.80	13.95	338.70	0.5959	690.0	484.1
60	0.00	1.12	0.00	0.67	23.65	160.23	13.38	337.45	0.5549	723.0	579.0
61	0.00	0.95	0.00	0.58	26.69	160.44	13.59	339.28	0.5958	612.0	548.6
62	6.39	7.43	3.92	4.56	26.47	160.28	13.43	339.37	0.5921	841.8	636.7
63	0.00	1.12	0.00	0.69	26.86	160.19	13.34	339.75	0.5968	619.0	560.2
64	0.00	1.12	0.00	0.69	26.81	159.91	13.06	340.11	0.5948	771.0	662.8
65	0.00	0.95	0.00	0.58	26.42	159.83	12.98	339.96	0.5893	790.0	655.8
66	0.00	0.86	0.00	0.51	22.87	159.32	12.47	338.26	0.5394	764.0	652.2
67	2.33	11.05	1.42	6.72	26.21	158.96	12.11	341.08	0.5825	902.1	711.1
68	0.35	2.33	0.21	1.42	26.56	158.69	11.84	341.68	0.5859	822.0	672.7
69	3.11	10.36	1.87	6.25	25.52	158.48	11.63	341.35	0.5711	965.8	640.3
70	3.37	53.80	2.09	33.54	28.00	158.61	11.75	342.63	0.6046	-850.4	-225.0
71	0.00	1.73	0.00	1.05	26.30	158.42	11.57	341.91	0.5813	624.0	583.3
72	3.37	-70.00	2.10	-70.00	28.37	158.58	11.73	342.87	0.6093	-762.4	999999
73	0.00	1.30	0.00	0.79	26.73	158.40	11.55	342.19	0.5869	667.0	520.5
74	0.00	3.97	0.00	2.39	25.69	157.93	11.07	342.28	0.5708	705.0	620.0
75	0.00	1.47	0.00	0.88	25.61	157.72	10.87	342.54	0.5689	783.0	579.8
76	0.00	1.12	0.00	0.65	22.76	156.78	9.93	342.30	0.5254	778.0	630.5
77	0.00	1.47	0.00	0.94	30.85	156.86	10.01	346.37	0.6356	-554.0	-403.2
78	0.00	1.73	0.00	1.11	31.00	156.70	9.85	346.64	0.6370	-568.0	-491.1
79	0.00	1.55	0.00	0.99	30.32	156.49	9.64	346.63	0.6274	-709.0	-593.3
80	0.00	1.21	0.00	0.75	28.79	156.31	9.46	346.21	0.6065	-592.0	-507.6
81	0.00	1.64	0.00	1.03	29.67	156.19	9.34	346.76	0.6179	-789.0	-653.5
82	0.00	1.73	0.00	1.08	29.37	156.12	9.27	346.72	0.6138	-744.0	-635.5
83	0.00	1.21	0.00	0.76	30.03	155.42	8.57	347.95	0.6204	-640.0	-505.5
84	0.00	3.11	0.00	1.98	30.67	155.48	8.63	348.12	0.6291	-725.0	-543.8
85	0.00	2.33	0.00	1.37	24.78	153.53	6.68	348.72	0.5422	514.0	409.4
86	0.00	1.73	0.00	1.08	29.88	153.61	6.76	350.39	0.6138	-807.0	-683.9
87	0.00	0.86	0.00	0.55	31.78	151.39	4.54	353.90	0.6353	-522.0	-462.7
88	0.00	0.95	0.00	0.60	30.33	150.91	4.06	354.28	0.6150	-690.0	-500.3

	Proj. U	- Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	- Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	- Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	- Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	- Heliographic latitude B; positive: North, negative: South
	L	- Heliographic longitude L
	LCM	- Longitudinal distance from the Sun's central meridian
	Pos. angle	- Position angle
	r	- Distance from the centre of Sun's disc in terms of Sun's radius
	MU	- Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	- Mean magnetic field within the penumbra contour averaged the pixel values with sign.
