Sunspot Group 11164

group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

11164	291.72	1551.36	179.82	956.41	23.82	164.27	19.07	329.73	0.5945	147.0	-16.6

previous or next observation for the same group / back to the solar disc

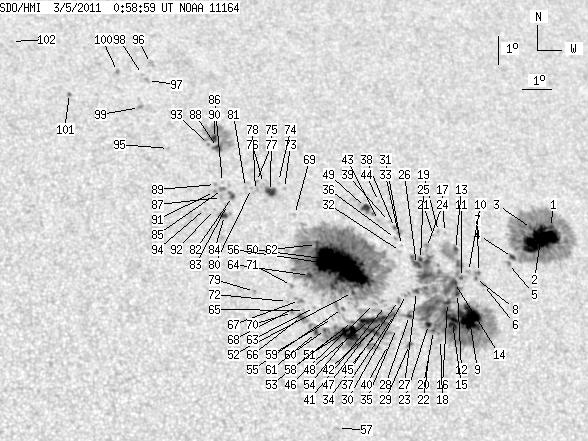

SDO HMI 2011-03-05 00:58:59 UT
No observation available

See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

1	2.33	264.94	1.53	171.96	25.67	169.94	24.74	324.72	0.6554	-362.9	-283.3
2	51.57	-1.00	33.43	-1.00	25.22	169.48	24.28	324.78	0.6473	-962.0	999999
3	1.64	-1.00	1.07	-1.00	25.59	169.24	24.03	325.41	0.6493	-716.8	999999
4	2.51	-1.00	1.60	-1.00	24.53	168.34	23.13	325.37	0.6312	-835.4	999999
5	0.00	2.76	0.00	1.75	24.31	168.15	22.95	325.36	0.6275	-899.0	-720.7
6	0.00	2.68	0.00	1.67	23.53	167.13	21.92	325.79	0.6111	-883.0	-654.0
7	0.35	4.66	0.22	2.92	23.94	167.02	21.82	326.31	0.6148	-756.5	-667.0
8	0.86	-7.00	0.54	-7.00	23.72	166.88	21.68	326.27	0.6114	-788.9	999999
9	31.88	585.87	19.56	356.55	22.33	166.44	21.23	325.41	0.5924	-946.0	-199.0
10	0.00	2.59	0.00	1.62	23.95	166.68	21.47	326.75	0.6124	-784.0	-628.1
11	1.12	-9.00	0.70	-9.00	23.73	166.39	21.19	326.87	0.6078	-811.2	999999
12	1.81	-9.00	1.12	-9.00	23.17	166.16	20.96	326.60	0.5997	-857.0	999999
13	1.55	-9.00	0.98	-9.00	24.70	166.35	21.15	327.85	0.6184	-842.1	999999
14	2.85	-9.00	1.77	-9.00	23.55	166.12	20.92	327.03	0.6036	-772.9	999999
15	9.50	-9.00	5.80	-9.00	22.16	165.83	20.62	326.00	0.5856	-1096.0	999999
16	2.07	-9.00	1.27	-9.00	22.84	165.76	20.56	326.78	0.5929	-916.7	999999
17	0.00	1.12	0.00	0.71	25.29	166.07	20.87	328.73	0.6229	-627.0	-530.3
18	0.00	2.76	0.00	1.67	21.56	165.33	20.12	326.03	0.5748	-527.0	-466.9
19	0.00	1.12	0.00	0.71	25.31	165.87	20.66	329.00	0.6217	-616.0	-522.1
20	1.30	-9.00	0.78	-9.00	21.85	165.13	19.93	326.59	0.5767	-804.7	999999
21	0.00	1.12	0.00	0.71	25.16	165.66	20.46	329.11	0.6186	-469.0	-367.5
22	0.00	1.04	0.00	0.62	21.17	164.90	19.69	326.18	0.5669	-693.0	-566.8
23	2.94	-9.00	1.78	-9.00	22.05	164.99	19.79	326.97	0.5779	-782.7	999999
24	0.00	3.37	0.00	2.10	24.72	165.34	20.14	329.10	0.6114	-156.0	-87.1
25	1.21	-9.00	0.75	-9.00	24.29	165.06	19.86	329.05	0.6044	614.9	999999
26	4.58	-9.00	2.83	-9.00	24.11	164.89	19.69	329.10	0.6011	632.9	999999
27	1.64	-9.00	1.00	-9.00	23.17	164.75	19.54	328.39	0.5891	689.3	999999
28	1.47	-9.00	0.89	-9.00	22.33	164.38	19.18	328.05	0.5765	417.5	999999
29	1.04	3.02	0.62	1.81	21.34	164.24	19.04	327.24	0.5637	-849.9	-541.5
30	0.00	2.85	0.00	1.74	23.05	164.38	19.18	328.75	0.5850	567.0	470.5
31	0.00	0.78	0.00	0.48	24.75	164.48	19.27	330.21	0.6057	354.0	263.0
32	0.00	1.12	0.00	0.70	24.54	164.41	19.21	330.11	0.6027	-439.0	-354.3
33	0.95	2.07	0.59	1.29	25.17	164.44	19.24	330.63	0.6103	-207.3	-22.1
34	0.00	2.16	0.00	1.31	22.83	164.08	18.88	328.94	0.5802	770.0	579.1
35	0.00	1.81	0.00	1.09	21.87	163.88	18.67	328.27	0.5672	385.0	188.4
36	0.00	1.30	0.00	0.81	24.99	164.31	19.10	330.64	0.6073	605.0	469.6
37	0.60	-9.00	0.36	-9.00	22.34	163.87	18.67	328.74	0.5729	401.4	999999
38	0.35	1.38	0.22	0.86	25.38	164.34	19.13	330.95	0.6121	455.0	360.8
39	0.00	1.21	0.00	0.76	25.59	164.20	18.99	331.30	0.6135	447.0	325.6
40	0.00	2.33	0.00	1.39	21.31	163.53	18.33	328.18	0.5579	-196.0	-187.6
41	0.00	0.95	0.00	0.57	22.64	163.61	18.41	329.39	0.5745	-197.0	-172.6
42	0.43	-9.00	0.26	-9.00	22.16	163.51	18.31	329.06	0.5679	602.4	999999
43	0.00	0.43	0.00	0.27	25.60	163.82	18.61	331.79	0.6113	-604.0	-521.6
44	0.00	0.78	0.00	0.49	26.28	163.93	18.73	332.23	0.6200	473.0	430.8
45	1.47	-9.00	0.88	-9.00	21.67	163.17	17.97	329.04	0.5595	524.2	999999
46	0.00	1.38	0.00	0.83	22.69	163.24	18.04	329.93	0.5725	345.0	288.7
47	2.68	-9.00	1.60	-9.00	21.79	162.99	17.79	329.42	0.5597	695.5	999999
48	7.69	-9.00	4.60	-9.00	22.10	162.99	17.79	329.71	0.5635	737.7	999999
49	4.32	7.26	2.70	4.54	26.05	163.43	18.23	332.65	0.6141	-757.9	-347.1
50	1.12	517.28	0.69	314.57	24.06	162.99	17.79	331.52	0.5873	568.5	330.7
51	0.86	-9.00	0.52	-9.00	21.98	162.61	17.41	330.14	0.5593	753.9	999999
52	0.95	-50.00	0.57	-50.00	23.04	162.54	17.34	331.21	0.5718	702.6	999999
53	0.52	-9.00	0.31	-9.00	22.04	162.42	17.21	330.47	0.5586	416.0	999999
54	15.29	-9.00	9.07	-9.00	21.63	162.30	17.09	330.24	0.5527	981.2	999999
55	0.35	1.47	0.21	0.88	22.48	162.13	16.93	331.27	0.5620	779.0	687.5
56	100.12	-50.00	60.83	-50.00	23.96	162.26	17.06	332.42	0.5813	1087.5	999999
57	0.00	1.64	0.00	0.94	18.42	161.51	16.31	328.13	0.5067	581.0	441.4
58	1.21	-9.00	0.72	-9.00	21.61	161.83	16.62	330.90	0.5491	735.8	999999
59	0.00	1.21	0.00	0.72	22.12	161.75	16.55	331.48	0.5550	530.0	398.3
60	1.30	-9.00	0.77	-9.00	21.73	161.47	16.27	331.53	0.5482	733.6	999999
61	1.99	-9.00	1.17	-9.00	21.62	161.16	15.96	331.89	0.5446	989.1	999999
62	0.60	-50.00	0.37	-50.00	24.67	161.54	16.34	334.00	0.5854	646.9	999999
63	0.00	1.04	0.00	0.62	22.47	161.19	15.99	332.62	0.5556	722.0	583.8
64	3.11	-50.00	1.87	-50.00	23.57	161.16	15.96	333.62	0.5693	932.7	999999
65	0.00	1.38	0.00	0.82	22.36	160.85	15.64	333.02	0.5518	754.0	613.5
66	3.28	5.87	1.94	3.47	22.15	160.72	15.52	333.02	0.5484	974.9	732.9
67	0.00	3.71	0.00	2.21	22.70	160.72	15.52	333.50	0.5553	805.0	667.2
68	0.00	0.86	0.00	0.51	22.49	160.63	15.42	333.46	0.5521	787.0	560.2
69	0.00	1.21	0.00	0.74	25.70	160.93	15.73	335.65	0.5947	688.0	550.2
70	0.00	1.73	0.00	1.02	22.27	160.44	15.23	333.55	0.5481	860.0	682.1
71	0.00	1.81	0.00	1.08	23.20	160.51	15.31	334.24	0.5605	734.0	654.6
72	0.00	1.04	0.00	0.61	22.65	160.31	15.11	334.06	0.5521	619.0	425.8
73	0.00	1.12	0.00	0.70	26.62	160.71	15.51	336.63	0.6050	599.0	516.3
74	0.00	0.35	0.00	0.21	26.86	160.54	15.33	337.04	0.6071	383.0	438.2
75	6.65	8.55	4.11	5.29	26.49	160.21	15.01	337.21	0.6007	813.5	521.8
76	0.00	0.69	0.00	0.43	26.77	160.01	14.80	337.69	0.6031	703.0	645.0
77	0.00	1.04	0.00	0.64	26.83	159.77	14.57	338.04	0.6027	624.0	523.8
78	0.00	2.76	0.00	1.71	26.51	159.70	14.50	337.92	0.5982	582.0	593.0
79	0.00	1.81	0.00	1.07	22.95	159.25	14.04	335.91	0.5496	799.0	583.0
80	0.00	1.04	0.00	0.64	26.58	159.57	14.37	338.14	0.5984	672.0	570.0
81	0.00	0.95	0.00	0.59	26.60	159.37	14.16	338.44	0.5977	630.0	533.3
82	1.81	3.71	1.11	2.28	26.27	158.88	13.68	338.88	0.5909	882.6	821.0
83	0.00	2.07	0.00	1.27	25.97	158.68	13.47	338.98	0.5860	533.0	675.2
84	3.20	6.65	1.94	4.04	25.58	158.53	13.32	338.92	0.5801	877.3	673.2
85	0.00	2.33	0.00	1.43	26.51	158.57	13.36	339.48	0.5924	843.0	709.3
86	0.00	1.04	0.00	0.64	26.76	158.60	13.40	339.60	0.5958	483.0	378.5
87	0.00	1.99	0.00	1.21	26.22	158.50	13.30	339.39	0.5883	735.0	600.4
88	2.33	49.76	1.46	31.26	28.02	158.58	13.38	340.43	0.6121	-798.4	-175.3
89	0.00	1.47	0.00	0.90	26.68	158.35	13.15	339.90	0.5936	620.0	475.6
90	3.11	-88.00	1.95	-88.00	28.35	158.52	13.32	340.71	0.6160	-745.3	999999
91	0.00	1.12	0.00	0.69	26.43	158.28	13.08	339.83	0.5900	631.0	560.0
92	0.00	0.95	0.00	0.58	25.78	158.21	13.01	339.51	0.5812	581.0	512.5
93	0.00	1.04	0.00	0.65	28.12	158.28	13.08	340.89	0.6120	-842.0	-722.1
94	0.00	0.95	0.00	0.58	25.81	157.91	12.71	339.96	0.5801	672.0	550.6
95	0.00	0.69	0.00	0.43	27.93	156.88	11.68	342.70	0.6035	-645.0	-578.8
96	0.00	4.06	0.00	2.62	31.08	156.62	11.42	344.67	0.6434	-560.0	-502.3
97	0.00	2.07	0.00	1.33	30.44	156.44	11.23	344.59	0.6344	-658.0	-541.8
98	0.00	0.95	0.00	0.61	30.66	156.29	11.08	344.89	0.6367	-610.0	-491.8
99	0.00	2.51	0.00	1.58	29.42	156.04	10.84	344.62	0.6197	-686.0	-586.3
100	0.00	2.16	0.00	1.38	30.75	155.42	10.21	346.06	0.6350	-705.0	-607.4
101	1.21	1.47	0.76	0.92	29.88	153.66	8.45	348.06	0.6182	-694.0	-533.3
102	0.00	0.95	0.00	0.61	31.82	151.78	6.58	351.21	0.6394	-653.0	-569.3

	Proj. U	- Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	- Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	- Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	- Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	- Heliographic latitude B; positive: North, negative: South
	L	- Heliographic longitude L
	LCM	- Longitudinal distance from the Sun's central meridian
	Pos. angle	- Position angle
	r	- Distance from the centre of Sun's disc in terms of Sun's radius
	MU	- Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	- Mean magnetic field within the penumbra contour averaged the pixel values with sign.
