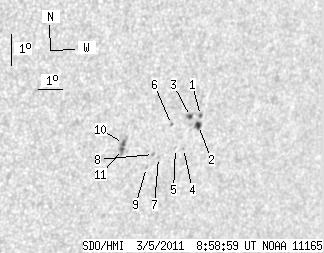

SDO HMI 2011-03-05 08:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.00 | 21.88 | 5.99 | 14.50 | -23.06 | 180.93 | 40.10 | 243.15 | 0.6666 | -49.1 | -268.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-03-05 08:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.12 | 1.99 | 0.76 | 1.34 | -22.28 | 182.28 | 41.45 | 244.77 | 0.6795 | 676.8 | 650.5 | |
| 3.29 | 4.15 | 2.21 | 2.80 | -22.59 | 182.30 | 41.47 | 244.33 | 0.6808 | 709.2 | 538.6 | |
| 1.82 | 2.42 | 1.22 | 1.62 | -22.35 | 181.87 | 41.04 | 244.54 | 0.6750 | 829.5 | 708.3 | |
| 0.00 | 0.95 | 0.00 | 0.64 | -23.34 | 181.94 | 41.11 | 243.13 | 0.6791 | 513.0 | 404.7 | |
| 0.00 | 0.26 | 0.00 | 0.17 | -23.37 | 181.60 | 40.77 | 242.97 | 0.6753 | -578.0 | -466.7 | |
| 0.00 | 1.04 | 0.00 | 0.69 | -22.65 | 181.17 | 40.34 | 243.85 | 0.6679 | -434.0 | -389.5 | |
| 0.00 | 0.78 | 0.00 | 0.52 | -23.70 | 181.00 | 40.17 | 242.27 | 0.6696 | -481.0 | -362.4 | |
| 0.00 | 1.56 | 0.00 | 1.03 | -23.62 | 180.76 | 39.93 | 242.29 | 0.6666 | -609.0 | -408.9 | |
| 0.00 | 0.86 | 0.00 | 0.57 | -24.04 | 180.62 | 39.79 | 241.63 | 0.6666 | -610.0 | -431.1 | |
| 1.56 | 7.87 | 1.01 | 5.12 | -23.38 | 179.41 | 38.58 | 242.09 | 0.6501 | -827.1 | -697.7 | |
| 1.21 | -10.00 | 0.79 | -10.00 | -23.57 | 179.44 | 38.61 | 241.83 | 0.6511 | -820.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
