Sunspot Group 11164

group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

11164	340.11	1708.53	215.93	1089.92	23.76	164.09	23.81	323.95	0.6290	199.5	-74.9

previous or next observation for the same group / back to the solar disc

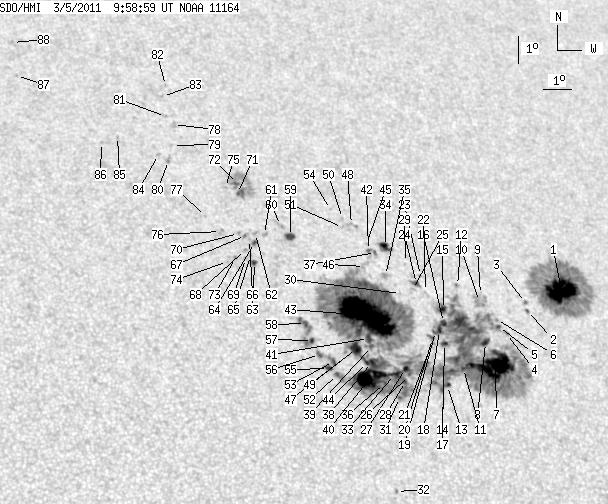

SDO HMI 2011-03-05 09:58:59 UT
No observation available

See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

1	45.12	258.30	30.66	175.63	25.24	169.55	29.26	319.76	0.6868	-1158.0	-283.6
2	1.04	1.21	0.69	0.80	24.45	168.07	27.79	320.35	0.6675	-722.0	-684.5
3	0.00	1.56	0.00	1.04	24.73	168.07	27.79	320.64	0.6700	-793.0	-677.4
4	0.00	2.42	0.00	1.58	23.59	167.10	26.82	320.42	0.6513	-671.0	-657.4
5	1.56	1245.94	1.01	784.37	23.82	166.86	26.58	320.90	0.6514	-877.6	-46.3
6	0.00	1.21	0.00	0.79	24.06	166.85	26.56	321.18	0.6536	-792.0	-703.4
7	58.44	-5.00	37.36	-5.00	22.42	166.46	26.18	319.83	0.6344	-1118.5	999999
8	4.06	-5.00	2.61	-5.00	23.23	166.27	25.98	320.90	0.6407	-1047.5	999999
9	0.00	1.21	0.00	0.79	24.91	166.45	26.17	322.45	0.6587	-273.0	-227.9
10	0.00	11.58	0.00	7.58	24.66	166.36	26.08	322.29	0.6555	-517.0	-498.3
11	1.30	-5.00	0.82	-5.00	22.29	165.29	25.01	320.94	0.6230	-960.3	999999
12	0.00	1.73	0.00	1.13	25.18	165.67	25.39	323.53	0.6552	-854.0	-646.4
13	2.16	-5.00	1.35	-5.00	21.67	164.61	24.33	321.02	0.6108	-918.1	999999
14	2.59	-5.00	1.65	-5.00	23.11	164.77	24.49	322.39	0.6270	757.9	999999
15	3.20	-5.00	2.06	-5.00	24.30	164.98	24.70	323.39	0.6409	640.9	999999
16	3.46	-5.00	2.21	-5.00	23.84	164.88	24.60	323.03	0.6354	559.8	999999
17	0.00	3.20	0.00	1.98	21.08	164.33	24.05	320.68	0.6023	-288.0	-208.7
18	3.03	-5.00	1.93	-5.00	23.55	164.68	24.40	322.95	0.6308	647.0	999999
19	1.47	-5.00	0.93	-5.00	23.51	164.53	24.25	323.07	0.6292	458.8	999999
20	0.00	5.71	0.00	3.61	23.26	164.38	24.09	322.99	0.6253	798.0	498.8
21	0.00	0.95	0.00	0.60	22.98	164.25	23.97	322.83	0.6214	256.0	245.5
22	0.00	0.78	0.00	0.50	24.90	164.46	24.17	324.56	0.6429	-582.0	-483.3
23	0.00	1.30	0.00	0.84	25.45	164.39	24.11	325.18	0.6482	405.0	215.5
24	2.59	5.19	1.67	3.35	25.16	164.19	23.90	325.12	0.6436	474.5	135.1
25	0.00	1.38	0.00	0.89	24.94	164.00	23.72	325.11	0.6399	270.0	336.4
26	1.04	-5.00	0.64	-5.00	21.94	163.33	23.04	322.79	0.6027	515.3	999999
27	2.77	-5.00	1.72	-5.00	22.17	163.23	22.94	323.16	0.6044	404.0	999999
28	1.30	-5.00	0.80	-5.00	21.73	163.15	22.87	322.77	0.5990	403.3	999999
29	0.00	0.52	0.00	0.34	25.89	163.94	23.66	326.08	0.6494	-407.0	-474.0
30	0.00	0.95	0.00	0.61	24.78	163.53	23.25	325.47	0.6346	-273.0	-235.0
31	1.04	-5.00	0.64	-5.00	21.17	162.85	22.57	322.52	0.5904	487.7	999999
32	0.00	1.82	0.00	1.08	18.02	162.28	22.00	319.56	0.5513	792.0	662.6
33	2.94	-5.00	1.81	-5.00	21.95	162.80	22.52	323.42	0.5984	577.8	999999
34	6.31	9.51	4.10	6.18	26.42	163.34	23.05	327.26	0.6507	-675.5	-522.8
35	0.00	4.32	0.00	2.77	25.38	163.12	22.84	326.52	0.6380	135.0	149.2
36	0.95	-5.00	0.58	-5.00	21.62	162.40	22.12	323.56	0.5916	690.1	999999
37	1.12	7.17	0.73	4.63	26.19	162.93	22.64	327.49	0.6452	-584.9	-556.7
38	2.25	-5.00	1.38	-5.00	22.32	162.07	21.79	324.70	0.5965	459.0	999999
39	1.56	-5.00	0.96	-5.00	22.87	162.16	21.88	325.16	0.6033	888.8	999999
40	33.63	-5.00	20.58	-5.00	21.76	161.91	21.63	324.32	0.5891	1064.8	999999
41	4.24	-5.00	2.63	-5.00	23.14	162.10	21.82	325.51	0.6058	877.5	999999
42	1.21	-37.00	0.78	-37.00	26.25	162.69	22.40	327.82	0.6441	-832.4	999999
43	112.29	-5.00	70.40	-5.00	23.94	162.21	21.93	326.18	0.6155	1217.8	999999
44	0.95	-5.00	0.58	-5.00	22.31	161.93	21.65	324.87	0.5953	935.5	999999
45	0.00	0.69	0.00	0.45	26.49	162.67	22.38	328.07	0.6467	-735.0	-634.9
46	0.00	4.75	0.00	3.04	25.67	162.43	22.14	327.58	0.6360	-387.0	-203.4
47	9.85	-5.00	6.08	-5.00	22.77	161.62	21.34	325.72	0.5980	1100.1	999999
48	0.00	3.37	0.00	2.19	27.15	162.26	21.98	329.11	0.6511	363.0	463.1
49	0.00	0.95	0.00	0.58	22.55	161.31	21.03	325.88	0.5931	576.0	552.5
50	0.00	0.95	0.00	0.62	27.35	161.98	21.70	329.61	0.6514	566.0	529.1
51	0.00	0.95	0.00	0.62	27.03	161.91	21.63	329.40	0.6473	715.0	608.9
52	1.64	-5.00	1.00	-5.00	21.85	160.82	20.54	325.77	0.5812	1001.7	999999
53	2.25	16.17	1.37	9.85	22.29	160.75	20.47	326.31	0.5857	934.3	783.3
54	0.00	0.78	0.00	0.51	27.66	161.61	21.33	330.29	0.6523	330.0	294.4
55	3.11	-53.00	1.89	-53.00	22.04	160.54	20.26	326.33	0.5812	1057.5	999999
56	2.25	-53.00	1.37	-53.00	22.50	160.31	20.02	327.11	0.5847	728.2	999999
57	1.73	25.16	1.06	15.40	22.98	160.14	19.86	327.79	0.5889	913.3	459.7
58	2.94	-57.00	1.81	-57.00	23.55	159.99	19.70	328.54	0.5945	868.5	999999
59	5.88	5.96	3.74	3.79	26.61	159.98	19.70	331.30	0.6298	841.2	520.0
60	0.00	3.37	0.00	2.15	26.99	159.69	19.41	331.97	0.6324	726.0	660.3
61	0.00	2.16	0.00	1.37	26.64	159.07	18.78	332.44	0.6244	823.0	632.7
62	0.00	1.64	0.00	1.04	26.66	158.75	18.47	332.85	0.6227	752.0	606.1
63	1.99	2.94	1.24	1.83	25.62	158.55	18.27	332.24	0.6090	877.7	797.5
64	1.82	3.63	1.14	2.28	26.34	158.66	18.38	332.69	0.6183	885.1	532.8
65	0.00	1.38	0.00	0.86	25.87	158.45	18.17	332.57	0.6113	748.0	656.6
66	0.00	0.26	0.00	0.16	26.44	158.51	18.22	332.97	0.6185	763.0	793.0
67	0.00	2.25	0.00	1.42	26.58	158.39	18.11	333.23	0.6194	875.0	697.2
68	0.00	1.04	0.00	0.65	26.07	158.31	18.02	332.92	0.6129	735.0	609.4
69	0.00	1.82	0.00	1.13	25.75	158.26	17.97	332.72	0.6087	672.0	498.3
70	0.00	1.38	0.00	0.87	26.64	158.15	17.87	333.58	0.6187	683.0	573.6
71	1.21	37.60	0.78	24.24	28.09	158.36	18.08	334.45	0.6372	-868.1	-141.2
72	1.82	-71.00	1.17	-71.00	28.46	158.43	18.15	334.65	0.6419	-533.0	999999
73	0.00	0.95	0.00	0.59	25.77	157.91	17.63	333.18	0.6068	820.0	686.7
74	0.00	0.78	0.00	0.48	25.62	157.61	17.33	333.45	0.6031	803.0	674.4
75	0.00	1.64	0.00	1.05	28.29	157.97	17.69	335.08	0.6374	-573.0	-415.6
76	0.00	2.25	0.00	1.41	26.68	157.53	17.25	334.40	0.6155	640.0	604.4
77	0.00	0.95	0.00	0.60	27.20	157.09	16.81	335.37	0.6193	-350.0	-354.7
78	0.00	3.46	0.00	2.27	30.57	156.51	16.23	338.43	0.6568	-545.0	-399.8
79	0.00	1.04	0.00	0.67	29.77	156.34	16.06	338.12	0.6465	-454.0	-441.1
80	0.00	2.51	0.00	1.61	29.21	156.10	15.82	338.03	0.6384	-743.0	-566.0
81	0.00	1.12	0.00	0.74	30.86	156.27	15.99	338.90	0.6592	-521.0	-411.3
82	0.00	1.04	0.00	0.69	32.05	156.48	16.20	339.40	0.6743	-575.0	-471.4
83	0.00	0.95	0.00	0.63	31.62	156.29	16.01	339.35	0.6684	-681.0	-507.5
84	0.00	1.47	0.00	0.94	29.42	155.78	15.50	338.57	0.6394	-675.0	-556.4
85	0.00	0.52	0.00	0.33	30.04	154.42	14.14	340.65	0.6408	-595.0	-575.8
86	0.00	0.61	0.00	0.39	29.79	153.82	13.54	341.27	0.6351	-756.0	-556.7
87	0.00	0.61	0.00	0.40	32.25	151.12	10.84	345.92	0.6561	-651.0	-526.1
88	0.00	1.47	0.00	0.98	33.54	151.14	10.86	346.45	0.6723	-436.0	-376.8

	Proj. U	- Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	- Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	- Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	- Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	- Heliographic latitude B; positive: North, negative: South
	L	- Heliographic longitude L
	LCM	- Longitudinal distance from the Sun's central meridian
	Pos. angle	- Position angle
	r	- Distance from the centre of Sun's disc in terms of Sun's radius
	MU	- Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	- Mean magnetic field within the penumbra contour averaged the pixel values with sign.
