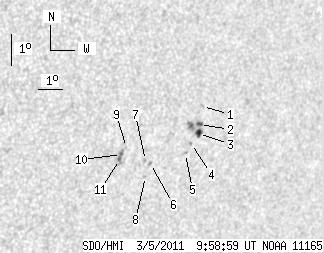

SDO HMI 2011-03-05 09:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.60 | 27.67 | 5.11 | 18.58 | -22.86 | 181.45 | 41.17 | 243.82 | 0.6782 | 20.0 | 80.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-03-05 09:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.47 | 0.00 | 0.99 | -21.71 | 182.25 | 41.97 | 245.75 | 0.6838 | 537.0 | 467.1 | |
| 1.90 | 13.49 | 1.29 | 9.15 | -22.26 | 182.32 | 42.04 | 244.98 | 0.6863 | 743.9 | 520.1 | |
| 3.37 | -2.00 | 2.29 | -2.00 | -22.54 | 182.38 | 42.10 | 244.61 | 0.6878 | 614.2 | 999999 | |
| 0.00 | 1.30 | 0.00 | 0.88 | -22.87 | 182.20 | 41.92 | 244.09 | 0.6867 | 536.0 | 457.2 | |
| 0.00 | 1.47 | 0.00 | 1.00 | -23.19 | 182.07 | 41.78 | 243.58 | 0.6862 | 526.0 | 365.8 | |
| 0.00 | 1.56 | 0.00 | 1.04 | -23.61 | 180.72 | 40.43 | 242.49 | 0.6723 | -639.0 | -480.9 | |
| 0.00 | 1.21 | 0.00 | 0.80 | -23.54 | 180.47 | 40.19 | 242.51 | 0.6693 | -755.0 | -616.5 | |
| 0.00 | 0.86 | 0.00 | 0.58 | -24.03 | 180.66 | 40.38 | 241.88 | 0.6732 | -470.0 | -392.8 | |
| 0.00 | 0.52 | 0.00 | 0.34 | -23.20 | 179.55 | 39.27 | 242.64 | 0.6574 | -530.0 | -485.8 | |
| 1.21 | 5.79 | 0.79 | 3.80 | -23.43 | 179.42 | 39.14 | 242.25 | 0.6568 | -887.1 | -730.8 | |
| 1.12 | -10.00 | 0.74 | -10.00 | -23.59 | 179.39 | 39.11 | 242.01 | 0.6571 | -848.2 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
