SDO HMI 2011-03-05 23:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 318.11 | 1696.32 | 218.18 | 1165.64 | 23.67 | 164.35 | 31.77 | 315.94 | 0.6947 | 135.2 | -34.2 | |
|
previous
or next observation for the same group /

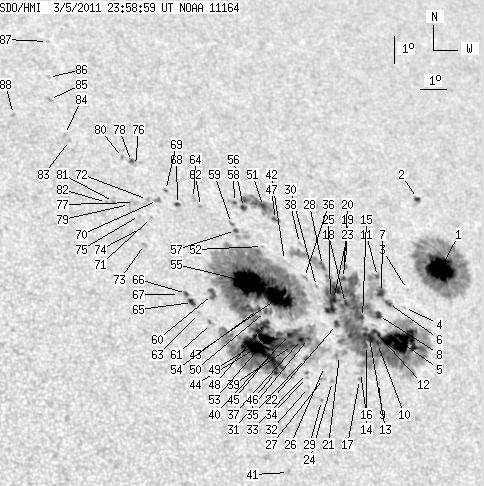

back to the solar disc SDO HMI 2011-03-05 23:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.11 | 230.56 | 28.39 | 172.13 | 25.19 | 169.42 | 36.84 | 313.43 | 0.7496 | -903.6 | -276.8 | |
| 1.73 | 4.84 | 1.33 | 3.71 | 27.66 | 169.39 | 36.81 | 316.03 | 0.7667 | 411.6 | 341.6 | |
| 0.00 | 1.04 | 0.00 | 0.75 | 24.33 | 167.79 | 35.21 | 313.74 | 0.7296 | -636.0 | -514.5 | |
| 0.00 | 0.60 | 0.00 | 0.43 | 23.68 | 167.47 | 34.89 | 313.29 | 0.7220 | -446.0 | -433.6 | |
| 46.49 | 505.10 | 32.51 | 351.14 | 22.48 | 166.91 | 34.34 | 312.39 | 0.7080 | -843.3 | -399.8 | |
| 2.77 | -5.00 | 1.96 | -5.00 | 23.77 | 166.86 | 34.29 | 313.86 | 0.7174 | -766.7 | 999999 | |
| 4.58 | -5.00 | 3.25 | -5.00 | 24.14 | 166.70 | 34.12 | 314.40 | 0.7187 | -784.7 | 999999 | |
| 3.72 | -5.00 | 2.60 | -5.00 | 23.32 | 166.34 | 33.76 | 313.79 | 0.7093 | -727.5 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.82 | 20.97 | 165.70 | 33.12 | 311.65 | 0.6852 | 322.0 | 175.2 | |
| 1.30 | -5.00 | 0.90 | -5.00 | 22.34 | 166.02 | 33.44 | 312.96 | 0.6989 | -1077.8 | 999999 | |
| 1.30 | -5.00 | 0.93 | -5.00 | 24.70 | 166.71 | 34.13 | 314.98 | 0.7231 | -725.1 | 999999 | |
| 0.95 | -5.00 | 0.66 | -5.00 | 22.79 | 166.03 | 33.45 | 313.45 | 0.7024 | -658.3 | 999999 | |
| 6.39 | -5.00 | 4.41 | -5.00 | 22.53 | 165.76 | 33.19 | 313.38 | 0.6980 | -974.6 | 999999 | |
| 0.78 | -5.00 | 0.53 | -5.00 | 22.24 | 165.57 | 32.99 | 313.22 | 0.6940 | -935.4 | 999999 | |
| 1.73 | -5.00 | 1.20 | -5.00 | 23.20 | 165.68 | 33.10 | 314.20 | 0.7025 | -938.8 | 999999 | |
| 0.00 | 3.63 | 0.00 | 2.45 | 21.30 | 165.10 | 32.52 | 312.54 | 0.6821 | -315.0 | -398.4 | |
| 0.00 | 1.12 | 0.00 | 0.76 | 21.05 | 165.00 | 32.42 | 312.34 | 0.6793 | 322.0 | 192.9 | |
| 1.73 | -5.00 | 1.20 | -5.00 | 23.65 | 165.15 | 32.57 | 315.13 | 0.7014 | 261.6 | 999999 | |
| 0.00 | 2.07 | 0.00 | 1.46 | 24.96 | 165.53 | 32.95 | 316.22 | 0.7152 | -780.0 | -685.4 | |
| 1.64 | -5.00 | 1.15 | -5.00 | 24.52 | 165.32 | 32.75 | 315.93 | 0.7099 | 184.7 | 999999 | |
| 0.00 | 8.38 | 0.00 | 5.65 | 21.82 | 164.43 | 31.86 | 313.71 | 0.6802 | -385.0 | -521.3 | |
| 3.20 | -5.00 | 2.18 | -5.00 | 22.89 | 164.59 | 32.02 | 314.77 | 0.6903 | 618.1 | 999999 | |
| 16.42 | -5.00 | 11.33 | -5.00 | 23.75 | 164.72 | 32.14 | 315.62 | 0.6985 | 512.2 | 999999 | |
| 0.00 | 1.64 | 0.00 | 1.09 | 20.91 | 163.95 | 31.37 | 313.09 | 0.6682 | 405.0 | 185.6 | |
| 1.99 | -5.00 | 1.37 | -5.00 | 23.78 | 164.61 | 32.03 | 315.74 | 0.6977 | -261.6 | 999999 | |
| 0.00 | 1.81 | 0.00 | 1.21 | 21.40 | 163.77 | 31.19 | 313.82 | 0.6706 | -332.0 | -297.3 | |
| 0.00 | 2.77 | 0.00 | 1.83 | 20.99 | 163.63 | 31.06 | 313.46 | 0.6659 | 313.0 | 262.3 | |
| 3.02 | 25.41 | 2.11 | 17.68 | 24.92 | 164.63 | 32.05 | 316.95 | 0.7073 | 377.5 | -29.3 | |
| 0.00 | 1.04 | 0.00 | 0.68 | 20.24 | 163.39 | 30.81 | 312.80 | 0.6573 | 534.0 | 467.6 | |
| 0.00 | 1.04 | 0.00 | 0.71 | 24.16 | 164.18 | 31.60 | 316.53 | 0.6972 | -489.0 | -433.1 | |
| 1.64 | 781.37 | 1.10 | 519.63 | 22.32 | 163.39 | 30.81 | 315.20 | 0.6749 | -567.4 | 295.9 | |
| 0.00 | 1.21 | 0.00 | 0.79 | 20.64 | 163.00 | 30.42 | 313.63 | 0.6570 | 407.0 | 392.6 | |
| 0.00 | 1.47 | 0.00 | 0.97 | 21.12 | 163.03 | 30.45 | 314.15 | 0.6613 | 415.0 | 371.3 | |
| 0.00 | 0.69 | 0.00 | 0.45 | 20.98 | 163.00 | 30.42 | 314.02 | 0.6598 | 483.0 | 420.0 | |
| 1.64 | -31.00 | 1.09 | -31.00 | 21.63 | 163.11 | 30.53 | 314.66 | 0.6664 | 352.6 | 999999 | |
| 0.00 | 2.94 | 0.00 | 2.02 | 24.45 | 163.80 | 31.22 | 317.17 | 0.6963 | 245.0 | 238.6 | |
| 1.90 | -31.00 | 1.27 | -31.00 | 22.27 | 163.12 | 30.54 | 315.39 | 0.6719 | -933.1 | 999999 | |
| 0.00 | 1.30 | 0.00 | 0.91 | 25.65 | 163.95 | 31.37 | 318.30 | 0.7077 | -443.0 | -310.1 | |
| 1.04 | -31.00 | 0.69 | -31.00 | 22.04 | 162.73 | 30.15 | 315.49 | 0.6664 | -675.2 | 999999 | |
| 2.07 | -31.00 | 1.38 | -31.00 | 22.41 | 162.70 | 30.13 | 315.93 | 0.6694 | 269.0 | 999999 | |
| 0.00 | 2.07 | 0.00 | 1.31 | 17.75 | 161.69 | 29.11 | 311.33 | 0.6194 | 469.0 | 404.5 | |
| 0.00 | 0.60 | 0.00 | 0.42 | 25.00 | 163.18 | 30.61 | 318.29 | 0.6959 | 352.0 | 221.1 | |
| 38.37 | -31.00 | 25.83 | -31.00 | 23.67 | 162.60 | 30.03 | 317.41 | 0.6795 | 778.0 | 999999 | |
| 1.21 | -31.00 | 0.80 | -31.00 | 22.38 | 162.29 | 29.71 | 316.28 | 0.6654 | 341.8 | 999999 | |
| 0.86 | -31.00 | 0.57 | -31.00 | 21.97 | 162.15 | 29.58 | 315.94 | 0.6606 | -350.0 | 999999 | |
| 0.69 | -31.00 | 0.45 | -31.00 | 21.07 | 161.88 | 29.30 | 315.18 | 0.6502 | -685.1 | 999999 | |
| 1.30 | 3.20 | 0.91 | 2.24 | 26.44 | 163.25 | 30.68 | 319.72 | 0.7089 | -480.2 | -333.5 | |
| 1.99 | -31.00 | 1.32 | -31.00 | 22.77 | 161.93 | 29.36 | 317.04 | 0.6657 | 546.3 | 999999 | |
| 13.65 | -31.00 | 8.97 | -31.00 | 22.25 | 161.78 | 29.20 | 316.61 | 0.6596 | 693.6 | 999999 | |
| 1.99 | -31.00 | 1.32 | -31.00 | 23.15 | 161.99 | 29.41 | 317.41 | 0.6695 | 713.0 | 999999 | |
| 4.15 | 35.78 | 2.91 | 25.03 | 26.88 | 162.92 | 30.34 | 320.46 | 0.7101 | 362.4 | -174.5 | |
| 0.00 | 0.95 | 0.00 | 0.65 | 25.44 | 162.47 | 29.89 | 319.40 | 0.6938 | -235.0 | -139.4 | |
| 30.42 | -31.00 | 19.84 | -31.00 | 21.85 | 161.43 | 28.85 | 316.50 | 0.6530 | 994.1 | 999999 | |
| 1.81 | -31.00 | 1.20 | -31.00 | 23.20 | 161.74 | 29.16 | 317.70 | 0.6679 | 750.6 | 999999 | |
| 56.60 | -31.00 | 37.90 | -31.00 | 24.13 | 161.67 | 29.09 | 318.77 | 0.6756 | 985.5 | 999999 | |
| 2.51 | -51.00 | 1.74 | -51.00 | 26.79 | 162.12 | 29.55 | 321.09 | 0.7031 | -557.3 | 999999 | |
| 1.56 | 12.70 | 1.06 | 8.68 | 25.94 | 161.58 | 29.00 | 320.73 | 0.6912 | -283.8 | 38.1 | |
| 1.21 | 4.06 | 0.84 | 2.81 | 26.95 | 161.82 | 29.25 | 321.52 | 0.7022 | -718.7 | -493.6 | |
| 0.00 | 2.33 | 0.00 | 1.60 | 26.18 | 161.49 | 28.92 | 321.06 | 0.6927 | -527.0 | -342.1 | |
| 5.62 | 6.31 | 3.68 | 4.14 | 23.61 | 160.14 | 27.56 | 319.70 | 0.6579 | 774.1 | 689.1 | |
| 0.00 | 2.42 | 0.00 | 1.57 | 22.60 | 159.88 | 27.30 | 318.87 | 0.6461 | 834.0 | 525.6 | |
| 0.00 | 1.47 | 0.00 | 1.00 | 26.72 | 160.47 | 27.89 | 322.56 | 0.6897 | 794.0 | 630.2 | |
| 0.00 | 1.04 | 0.00 | 0.67 | 22.92 | 159.51 | 26.94 | 319.59 | 0.6460 | 716.0 | 653.4 | |
| 0.00 | 3.11 | 0.00 | 2.12 | 26.99 | 160.28 | 27.70 | 323.01 | 0.6908 | 698.0 | 551.3 | |
| 3.37 | 4.49 | 2.19 | 2.91 | 23.29 | 159.34 | 26.76 | 320.17 | 0.6480 | 808.2 | 557.1 | |
| 1.73 | 2.25 | 1.12 | 1.46 | 23.59 | 159.19 | 26.61 | 320.64 | 0.6496 | 626.2 | 744.0 | |
| 0.00 | 0.86 | 0.00 | 0.56 | 23.54 | 158.92 | 26.34 | 320.86 | 0.6469 | 613.0 | 535.4 | |
| 1.81 | 2.33 | 1.23 | 1.58 | 26.73 | 159.61 | 27.03 | 323.42 | 0.6833 | 623.3 | 556.3 | |
| 0.00 | 1.56 | 0.00 | 1.06 | 27.22 | 159.28 | 26.70 | 324.20 | 0.6855 | 587.0 | 575.4 | |
| 0.00 | 3.02 | 0.00 | 2.03 | 26.83 | 158.89 | 26.31 | 324.23 | 0.6788 | 787.0 | 609.3 | |
| 0.00 | 0.60 | 0.00 | 0.40 | 26.20 | 158.51 | 25.93 | 324.00 | 0.6698 | 666.0 | 560.6 | |
| 0.00 | 1.64 | 0.00 | 1.10 | 26.85 | 158.52 | 25.94 | 324.61 | 0.6762 | 566.0 | 499.6 | |
| 0.00 | 2.25 | 0.00 | 1.47 | 25.22 | 158.02 | 25.45 | 323.54 | 0.6563 | 714.0 | 554.6 | |
| 0.00 | 0.86 | 0.00 | 0.57 | 25.79 | 158.00 | 25.43 | 324.11 | 0.6618 | 649.0 | 581.2 | |
| 0.00 | 0.69 | 0.00 | 0.46 | 26.25 | 158.08 | 25.50 | 324.49 | 0.6670 | 639.0 | 568.0 | |
| 0.00 | 0.95 | 0.00 | 0.65 | 28.06 | 158.38 | 25.80 | 325.89 | 0.6872 | -485.0 | -431.0 | |
| 0.00 | 1.12 | 0.00 | 0.75 | 26.71 | 158.00 | 25.42 | 325.00 | 0.6711 | 628.0 | 534.7 | |
| 1.12 | 2.51 | 0.76 | 1.71 | 28.20 | 158.26 | 25.69 | 326.13 | 0.6878 | -537.4 | -352.3 | |
| 0.00 | 1.12 | 0.00 | 0.75 | 26.62 | 157.80 | 25.22 | 325.14 | 0.6687 | 712.0 | 622.1 | |
| 0.00 | 1.47 | 0.00 | 1.00 | 28.33 | 157.96 | 25.38 | 326.55 | 0.6869 | -647.0 | -550.1 | |
| 0.00 | 1.47 | 0.00 | 0.97 | 26.70 | 157.23 | 24.65 | 325.80 | 0.6653 | 745.0 | 598.8 | |
| 0.00 | 1.04 | 0.00 | 0.68 | 26.65 | 156.96 | 24.38 | 326.04 | 0.6628 | 529.0 | 473.6 | |
| 0.00 | 1.12 | 0.00 | 0.76 | 28.84 | 156.11 | 23.54 | 328.91 | 0.6797 | -596.0 | -448.2 | |
| 0.00 | 1.64 | 0.00 | 1.11 | 29.05 | 155.98 | 23.40 | 329.23 | 0.6810 | -536.0 | -445.7 | |
| 0.00 | 2.25 | 0.00 | 1.54 | 30.34 | 155.74 | 23.16 | 330.56 | 0.6929 | -579.0 | -439.4 | |
| 0.00 | 1.30 | 0.00 | 0.90 | 31.18 | 155.91 | 23.34 | 331.06 | 0.7026 | -517.0 | -480.5 | |
| 0.00 | 0.86 | 0.00 | 0.61 | 32.57 | 156.25 | 23.68 | 331.82 | 0.7188 | -485.0 | -409.5 | |
| 0.00 | 1.64 | 0.00 | 1.10 | 29.70 | 154.24 | 21.67 | 331.62 | 0.6770 | -569.0 | -510.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
