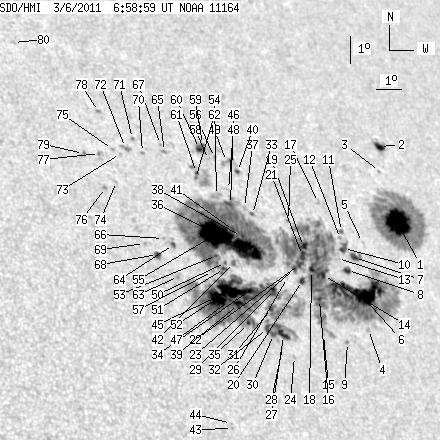

SDO HMI 2011-03-06 06:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 316.38 | 1684.83 | 227.81 | 1213.02 | 23.46 | 164.36 | 35.61 | 312.57 | 0.7263 | 162.8 | -52.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-03-06 06:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.39 | 218.31 | 31.86 | 172.53 | 25.19 | 169.32 | 40.57 | 310.85 | 0.7804 | -1069.0 | -244.4 | |
| 5.19 | 10.29 | 4.26 | 8.45 | 27.91 | 169.70 | 40.95 | 313.44 | 0.8000 | 597.4 | 348.2 | |
| 0.00 | 1.21 | 0.00 | 0.98 | 26.98 | 169.28 | 40.54 | 312.76 | 0.7911 | -424.0 | -247.0 | |
| 0.00 | 2.08 | 0.00 | 1.51 | 21.31 | 166.73 | 37.98 | 308.33 | 0.7332 | -306.0 | -277.1 | |
| 0.00 | 1.04 | 0.00 | 0.79 | 24.34 | 167.49 | 38.75 | 311.16 | 0.7598 | -282.0 | -321.6 | |
| 56.31 | 519.82 | 41.41 | 379.49 | 22.59 | 166.73 | 37.98 | 309.78 | 0.7416 | -938.8 | -407.3 | |
| 4.41 | 6.83 | 3.30 | 5.12 | 23.77 | 166.96 | 38.21 | 310.92 | 0.7515 | -716.8 | -497.4 | |
| 3.11 | 5.10 | 2.30 | 3.77 | 23.29 | 166.51 | 37.76 | 310.71 | 0.7443 | -657.3 | -514.0 | |
| 0.00 | 1.12 | 0.00 | 0.80 | 20.79 | 165.73 | 36.98 | 308.45 | 0.7204 | 470.0 | 353.8 | |
| 3.37 | 7.70 | 2.52 | 5.75 | 24.05 | 166.60 | 37.85 | 311.48 | 0.7503 | -817.9 | -646.0 | |
| 0.69 | 2.16 | 0.52 | 1.63 | 24.65 | 166.73 | 37.98 | 312.03 | 0.7554 | -763.2 | -634.4 | |
| 0.00 | 1.30 | 0.00 | 0.97 | 24.40 | 166.60 | 37.85 | 311.85 | 0.7526 | -683.0 | -639.5 | |
| 0.00 | 1.64 | 0.00 | 1.21 | 23.68 | 166.23 | 37.48 | 311.34 | 0.7445 | -714.0 | -618.3 | |
| 2.34 | -6.00 | 1.70 | -6.00 | 23.03 | 165.44 | 36.70 | 311.19 | 0.7331 | -1110.7 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.61 | 20.99 | 164.83 | 36.08 | 309.33 | 0.7133 | 214.0 | 193.1 | |
| 1.47 | -6.00 | 1.05 | -6.00 | 22.18 | 165.02 | 36.27 | 310.56 | 0.7234 | -1017.2 | 999999 | |
| 0.00 | 1.90 | 0.00 | 1.44 | 25.61 | 166.12 | 37.38 | 313.49 | 0.7569 | -623.0 | -511.5 | |
| 0.69 | -6.00 | 0.50 | -6.00 | 23.17 | 165.00 | 36.25 | 311.67 | 0.7302 | -232.1 | 999999 | |
| 4.50 | -6.00 | 3.28 | -6.00 | 23.99 | 164.94 | 36.20 | 312.61 | 0.7355 | 542.5 | 999999 | |
| 2.85 | -6.00 | 2.04 | -6.00 | 22.79 | 164.52 | 35.78 | 311.61 | 0.7232 | 528.5 | 999999 | |
| 3.98 | -6.00 | 2.88 | -6.00 | 23.67 | 164.80 | 36.05 | 312.37 | 0.7319 | 511.0 | 999999 | |
| 3.55 | -6.00 | 2.55 | -6.00 | 23.34 | 164.57 | 35.83 | 312.18 | 0.7276 | 656.1 | 999999 | |
| 2.08 | -6.00 | 1.49 | -6.00 | 23.18 | 164.33 | 35.58 | 312.20 | 0.7243 | 685.8 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.65 | 20.15 | 163.47 | 34.72 | 309.39 | 0.6943 | 587.0 | 453.8 | |
| 0.00 | 1.12 | 0.00 | 0.82 | 24.86 | 164.63 | 35.88 | 313.80 | 0.7391 | 454.0 | 298.6 | |
| 0.00 | 0.95 | 0.00 | 0.67 | 22.85 | 163.95 | 35.20 | 312.12 | 0.7184 | 274.0 | 180.4 | |
| 6.05 | 38.14 | 4.17 | 26.26 | 20.83 | 163.22 | 34.48 | 310.39 | 0.6969 | 588.9 | 18.8 | |
| 0.00 | 1.04 | 0.00 | 0.71 | 20.42 | 163.08 | 34.33 | 310.02 | 0.6925 | 552.0 | 440.6 | |
| 0.95 | 344.93 | 0.67 | 236.12 | 22.39 | 163.30 | 34.55 | 312.11 | 0.7092 | -959.3 | 193.0 | |
| 2.42 | -27.00 | 1.66 | -27.00 | 20.84 | 162.84 | 34.09 | 310.70 | 0.6933 | 691.8 | 999999 | |
| 2.25 | -29.00 | 1.56 | -29.00 | 21.72 | 163.00 | 34.25 | 311.59 | 0.7014 | 451.4 | 999999 | |
| 3.72 | -27.00 | 2.55 | -27.00 | 21.02 | 162.66 | 33.91 | 311.06 | 0.6930 | 633.5 | 999999 | |
| 0.86 | 1.38 | 0.62 | 1.00 | 24.96 | 163.21 | 34.46 | 315.00 | 0.7278 | -249.1 | -198.2 | |
| 2.68 | -29.00 | 1.85 | -29.00 | 22.28 | 162.30 | 33.55 | 312.79 | 0.6992 | 413.5 | 999999 | |
| 1.30 | -29.00 | 0.88 | -29.00 | 21.14 | 161.96 | 33.21 | 311.77 | 0.6873 | -544.7 | 999999 | |
| 37.88 | 421.22 | 26.66 | 295.43 | 23.70 | 162.58 | 33.84 | 314.14 | 0.7128 | 843.5 | 304.4 | |
| 0.00 | 2.16 | 0.00 | 1.56 | 25.19 | 162.96 | 34.22 | 315.43 | 0.7275 | 156.0 | 172.5 | |
| 1.30 | -36.00 | 0.92 | -36.00 | 24.14 | 162.52 | 33.77 | 314.67 | 0.7157 | 285.3 | 999999 | |
| 5.54 | -29.00 | 3.78 | -29.00 | 21.76 | 161.74 | 32.99 | 312.67 | 0.6901 | 773.3 | 999999 | |
| 1.47 | 2.16 | 1.08 | 1.58 | 26.46 | 163.11 | 34.36 | 316.66 | 0.7385 | -410.0 | -501.0 | |
| 1.99 | -36.00 | 1.40 | -36.00 | 24.33 | 162.26 | 33.52 | 315.09 | 0.7149 | 227.4 | 999999 | |
| 2.42 | 4.24 | 1.68 | 2.95 | 23.21 | 161.93 | 33.19 | 314.13 | 0.7032 | 748.0 | 536.7 | |
| 0.00 | 0.78 | 0.00 | 0.50 | 17.56 | 160.55 | 31.80 | 308.64 | 0.6456 | 716.0 | 566.7 | |
| 0.00 | 0.69 | 0.00 | 0.45 | 17.73 | 160.55 | 31.80 | 308.85 | 0.6468 | 665.0 | 577.9 | |
| 23.09 | -29.00 | 15.80 | -29.00 | 22.22 | 161.55 | 32.80 | 313.35 | 0.6920 | 898.3 | 999999 | |
| 2.34 | -36.00 | 1.67 | -36.00 | 25.25 | 162.43 | 33.68 | 315.93 | 0.7235 | 248.3 | 999999 | |
| 0.52 | -29.00 | 0.35 | -29.00 | 21.87 | 161.42 | 32.67 | 313.06 | 0.6881 | 844.8 | 999999 | |
| 0.00 | 1.56 | 0.00 | 1.12 | 25.78 | 162.52 | 33.77 | 316.42 | 0.7284 | -271.0 | -179.6 | |
| 0.00 | 5.10 | 0.00 | 3.73 | 26.79 | 162.78 | 34.03 | 317.26 | 0.7384 | 214.0 | 75.9 | |
| 0.95 | -36.00 | 0.66 | -36.00 | 23.18 | 161.62 | 32.87 | 314.36 | 0.7002 | 740.5 | 999999 | |
| 1.21 | -36.00 | 0.83 | -36.00 | 22.97 | 161.52 | 32.77 | 314.21 | 0.6977 | 933.1 | 999999 | |
| 14.44 | -29.00 | 9.78 | -29.00 | 21.91 | 160.93 | 32.19 | 313.52 | 0.6838 | 1319.3 | 999999 | |
| 1.21 | -36.00 | 0.84 | -36.00 | 23.40 | 161.33 | 32.58 | 314.85 | 0.6995 | 1000.1 | 999999 | |
| 0.00 | 5.80 | 0.00 | 4.13 | 25.53 | 161.96 | 33.21 | 316.61 | 0.7219 | 162.0 | 176.3 | |
| 53.63 | -36.00 | 37.44 | -36.00 | 24.14 | 161.50 | 32.75 | 315.51 | 0.7069 | 1144.8 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.82 | 26.90 | 162.33 | 33.58 | 317.73 | 0.7357 | -427.0 | -399.2 | |
| 0.00 | 1.38 | 0.00 | 0.95 | 22.83 | 161.02 | 32.28 | 314.48 | 0.6921 | 777.0 | 687.8 | |
| 0.00 | 1.64 | 0.00 | 1.19 | 26.81 | 162.06 | 33.31 | 317.85 | 0.7328 | -272.0 | -338.4 | |
| 1.21 | 11.07 | 0.88 | 8.06 | 27.34 | 162.00 | 33.25 | 318.44 | 0.7365 | 163.5 | -294.0 | |
| 4.50 | -59.00 | 3.27 | -59.00 | 27.18 | 161.83 | 33.08 | 318.42 | 0.7339 | -534.7 | 999999 | |
| 1.04 | 22.14 | 0.74 | 15.84 | 26.30 | 161.42 | 32.67 | 317.86 | 0.7236 | -354.0 | 62.6 | |
| 0.86 | -61.00 | 0.62 | -61.00 | 26.08 | 161.31 | 32.56 | 317.72 | 0.7209 | -616.3 | 999999 | |
| 0.00 | 1.90 | 0.00 | 1.28 | 22.56 | 159.66 | 30.92 | 315.37 | 0.6777 | 714.0 | 627.0 | |
| 1.99 | 3.29 | 1.35 | 2.24 | 23.67 | 159.76 | 31.01 | 316.50 | 0.6879 | 817.6 | 605.2 | |
| 0.00 | 2.08 | 0.00 | 1.48 | 26.97 | 160.37 | 31.62 | 319.43 | 0.7208 | 680.0 | 557.6 | |
| 0.00 | 0.95 | 0.00 | 0.65 | 23.85 | 159.43 | 30.68 | 317.00 | 0.6866 | 642.0 | 507.5 | |
| 0.00 | 0.78 | 0.00 | 0.56 | 27.21 | 160.29 | 31.54 | 319.74 | 0.7222 | 618.0 | 557.8 | |
| 3.63 | 4.58 | 2.44 | 3.08 | 23.27 | 159.05 | 30.31 | 316.71 | 0.6784 | 765.1 | 557.5 | |
| 0.00 | 1.12 | 0.00 | 0.76 | 23.62 | 158.65 | 29.91 | 317.46 | 0.6780 | 705.0 | 557.0 | |
| 0.00 | 1.47 | 0.00 | 1.04 | 26.87 | 159.48 | 30.73 | 320.10 | 0.7130 | 764.0 | 572.4 | |
| 0.00 | 1.21 | 0.00 | 0.86 | 27.35 | 159.24 | 30.49 | 320.80 | 0.7153 | 712.0 | 632.9 | |
| 0.00 | 3.98 | 0.00 | 2.79 | 27.01 | 158.86 | 30.11 | 320.78 | 0.7093 | 793.0 | 672.0 | |
| 0.00 | 1.12 | 0.00 | 0.78 | 26.77 | 158.60 | 29.85 | 320.79 | 0.7053 | 604.0 | 498.0 | |
| 0.00 | 0.78 | 0.00 | 0.53 | 25.75 | 158.16 | 29.41 | 320.16 | 0.6927 | 635.0 | 537.3 | |
| 0.00 | 1.47 | 0.00 | 1.02 | 26.90 | 158.33 | 29.58 | 321.16 | 0.7043 | 622.0 | 506.0 | |
| 0.00 | 1.56 | 0.00 | 1.06 | 25.51 | 157.67 | 28.93 | 320.36 | 0.6866 | 806.0 | 731.8 | |
| 0.00 | 1.82 | 0.00 | 1.25 | 26.72 | 157.78 | 29.03 | 321.48 | 0.6984 | 679.0 | 556.3 | |
| 0.00 | 1.73 | 0.00 | 1.22 | 28.26 | 158.19 | 29.44 | 322.61 | 0.7153 | -524.0 | -390.9 | |
| 0.00 | 2.16 | 0.00 | 1.48 | 26.68 | 157.16 | 28.41 | 322.02 | 0.6932 | 712.0 | 650.6 | |
| 0.00 | 1.90 | 0.00 | 1.35 | 30.63 | 155.61 | 26.86 | 327.16 | 0.7193 | -504.0 | -469.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
