group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
11164	293.39	1630.66	226.51	1261.61	23.54	164.06	40.25	309.36	0.7671	156.8	-41.2

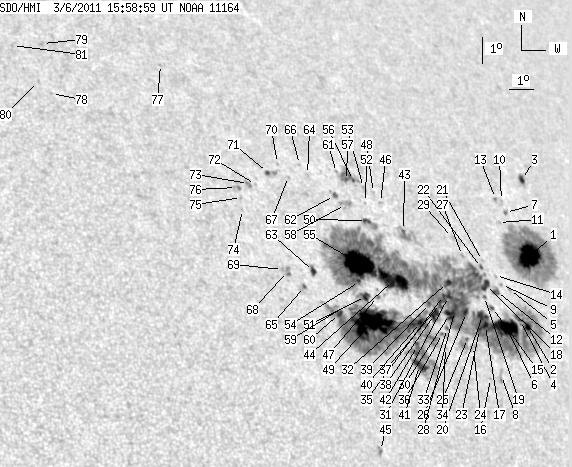

previous   or   next   observation for the same group / back to the solar disc SDO HMI 2011-03-06 15:58:59 UT See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	34.57	203.55	29.70	175.20	25.18	169.23	45.42	307.91	0.8193	-989.1	-199.5
2	3.80	1273.36	3.10	967.57	22.66	168.02	44.21	305.89	0.7965	-629.2	-10.6
3	3.72	5.79	3.39	5.27	27.99	170.31	46.50	310.24	0.8413	575.6	421.5
4	1.38	-2.00	1.12	-2.00	22.84	167.78	43.97	306.23	0.7954	-454.0	999999
5	0.00	1.64	0.00	1.35	23.90	167.73	43.91	307.40	0.8005	-464.0	-319.0
6	29.56	-2.00	23.63	-2.00	22.54	167.03	43.22	306.32	0.7874	-918.6	999999
7	0.52	2.07	0.45	1.80	26.67	168.84	45.03	309.71	0.8239	-237.0	-57.3
8	0.00	4.41	0.00	3.41	20.85	166.19	42.38	304.94	0.7707	-409.0	-151.3
9	0.00	0.95	0.00	0.78	24.04	167.43	43.61	307.73	0.7988	-372.0	-257.9
10	0.00	0.86	0.00	0.76	27.10	168.87	45.06	310.13	0.8263	583.0	509.8
11	0.00	1.38	0.00	1.18	26.27	168.31	44.50	309.59	0.8177	-522.0	-406.0
12	3.63	4.41	2.95	3.58	23.77	167.09	43.27	307.64	0.7945	-537.8	-412.7
13	1.04	1.38	0.90	1.20	27.15	168.61	44.79	310.33	0.8246	490.8	299.5
14	0.00	1.04	0.00	0.85	24.33	167.28	43.47	308.13	0.7992	-420.0	-331.9
15	1.64	2.42	1.31	1.94	23.18	166.67	42.86	307.25	0.7878	-607.2	-647.4
16	0.00	0.95	0.00	0.73	20.70	165.66	41.85	305.09	0.7651	375.0	252.6
17	2.68	-2.00	2.11	-2.00	22.52	166.10	42.29	306.86	0.7792	-1099.4	999999
18	6.05	-2.00	4.89	-2.00	23.93	166.66	42.85	308.07	0.7919	-775.8	999999
19	1.04	-2.00	0.83	-2.00	23.54	166.46	42.65	307.76	0.7879	-665.8	999999
20	5.62	-2.00	4.44	-2.00	22.86	166.10	42.29	307.24	0.7811	-819.6	999999
21	0.00	0.95	0.00	0.78	24.82	166.90	43.09	308.87	0.7988	-538.0	-479.7
22	1.21	2.16	0.99	1.76	24.56	166.75	42.94	308.69	0.7961	-619.6	-535.3
23	0.95	-2.00	0.74	-2.00	22.36	165.78	41.97	306.88	0.7755	-1036.0	999999
24	0.00	3.63	0.00	2.79	21.74	165.30	41.48	306.49	0.7677	-586.0	-422.4
25	1.04	11.24	0.80	8.59	21.99	165.13	41.32	306.88	0.7676	-861.3	-703.7
26	2.25	-2.00	1.75	-2.00	22.90	165.42	41.61	307.70	0.7754	-994.7	999999
27	0.00	1.30	0.00	1.05	24.91	166.05	42.24	309.49	0.7923	-745.0	-626.9
28	5.01	-2.00	3.88	-2.00	22.89	164.90	41.09	308.02	0.7708	-440.4	999999
29	0.00	1.38	0.00	1.12	25.52	165.87	42.06	310.26	0.7943	-478.0	-450.4
30	5.45	-2.00	4.19	-2.00	22.76	164.64	40.83	308.05	0.7678	450.0	999999
31	1.82	-2.00	1.41	-2.00	23.39	164.83	41.02	308.62	0.7732	483.6	999999
32	2.59	-2.00	2.03	-2.00	23.88	164.97	41.16	309.06	0.7774	445.2	999999
33	1.04	1.73	0.79	1.32	22.26	164.37	40.56	307.66	0.7625	-688.5	-601.8
34	0.00	0.95	0.00	0.72	21.60	164.06	40.25	307.12	0.7557	-747.0	-617.8
35	1.21	-2.00	0.94	-2.00	23.41	164.62	40.81	308.77	0.7715	512.0	999999
36	1.30	-2.00	0.98	-2.00	22.07	164.09	40.28	307.63	0.7588	-749.3	999999
37	1.47	-2.00	1.13	-2.00	23.11	164.38	40.57	308.60	0.7677	388.1	999999
38	6.57	-2.00	5.00	-2.00	22.70	163.98	40.17	308.41	0.7617	625.8	999999
39	1.82	-2.00	1.38	-2.00	23.07	163.90	40.09	308.87	0.7632	-541.9	999999
40	2.07	-2.00	1.56	-2.00	22.37	163.27	39.46	308.50	0.7533	-990.5	999999
41	8.99	-2.00	6.59	-2.00	20.88	162.75	38.94	307.17	0.7392	698.5	999999
42	2.51	-2.00	1.85	-2.00	21.56	162.88	39.07	307.86	0.7447	401.9	999999
43	0.95	19.45	0.75	15.24	25.58	163.74	39.93	311.68	0.7775	-409.3	-67.5
44	33.36	-2.00	25.16	-2.00	23.75	162.62	38.81	310.47	0.7564	757.9	999999
45	0.00	3.28	0.00	2.26	17.88	160.36	36.55	305.28	0.6966	778.0	631.2
46	0.00	1.30	0.00	1.02	26.51	163.13	39.32	313.07	0.7784	-335.0	-225.0
47	0.00	2.07	0.00	1.53	23.13	161.75	37.93	310.39	0.7447	781.0	549.8
48	0.00	1.04	0.00	0.82	26.85	162.97	39.16	313.53	0.7794	557.0	489.5
49	47.63	-2.00	34.59	-2.00	22.20	161.20	37.39	309.75	0.7335	1047.0	999999
50	2.68	10.46	2.06	8.04	25.80	162.25	38.44	312.93	0.7667	-311.8	140.6
51	5.27	-2.00	3.87	-2.00	23.09	161.24	37.43	310.71	0.7399	825.5	999999
52	0.00	0.52	0.00	0.40	26.45	162.46	38.65	313.46	0.7727	-367.0	-325.8
53	0.00	0.95	0.00	0.75	26.99	162.60	38.79	313.93	0.7774	-77.0	-103.7
54	1.04	-2.00	0.76	-2.00	23.59	161.16	37.35	311.32	0.7427	1066.8	999999
55	47.19	-2.00	35.12	-2.00	24.23	161.34	37.53	311.89	0.7485	1098.2	999999
56	1.04	14.43	0.81	11.28	27.21	162.26	38.45	314.39	0.7762	-405.6	-491.7
57	0.78	-56.00	0.61	-56.00	27.18	161.95	38.14	314.58	0.7736	-664.4	999999
58	0.00	7.52	0.00	5.76	26.30	161.56	37.75	313.94	0.7645	281.0	67.0
59	0.00	0.78	0.00	0.56	22.66	160.26	36.44	310.96	0.7282	625.0	552.2
60	3.46	-2.00	2.47	-2.00	22.40	159.98	36.16	310.87	0.7239	967.0	999999
61	0.00	1.12	0.00	0.87	27.44	161.63	37.82	315.07	0.7728	97.0	77.7
62	2.25	3.46	1.72	2.64	26.59	161.21	37.40	314.49	0.7636	-449.1	-430.3
63	3.28	5.70	2.37	4.11	23.79	159.37	35.55	312.87	0.7284	720.1	627.2
64	0.00	1.21	0.00	0.92	27.26	160.34	36.52	315.82	0.7615	701.0	624.1
65	0.61	2.25	0.43	1.60	23.23	158.84	35.02	312.67	0.7196	841.0	510.7
66	0.00	1.04	0.00	0.79	27.61	160.13	36.32	316.32	0.7623	570.0	438.7
67	0.00	0.86	0.00	0.65	27.13	159.50	35.68	316.31	0.7539	464.0	457.4
68	0.00	3.98	0.00	2.82	23.71	158.31	34.50	313.61	0.7185	647.0	474.0
69	0.00	1.30	0.00	0.92	23.76	158.13	34.31	313.81	0.7173	-11.0	-44.1
70	0.00	0.86	0.00	0.65	27.57	159.21	35.39	316.98	0.7549	488.0	391.2
71	1.30	4.75	0.96	3.54	27.20	158.66	34.85	317.02	0.7479	650.7	589.0
72	0.00	1.04	0.00	0.76	26.72	158.01	34.19	317.05	0.7390	404.0	360.6
73	0.00	3.20	0.00	2.33	26.74	157.73	33.92	317.28	0.7369	711.0	590.2
74	0.00	0.69	0.00	0.50	25.78	157.17	33.36	316.74	0.7249	690.0	546.0
75	0.00	1.38	0.00	1.00	26.21	157.27	33.46	317.11	0.7291	710.0	653.6
76	0.00	2.85	0.00	2.06	26.56	157.19	33.38	317.53	0.7312	627.0	644.7
77	0.00	0.86	0.00	0.65	30.92	155.66	31.85	323.04	0.7552	-676.0	-501.7
78	0.00	0.95	0.00	0.67	29.52	150.88	27.06	325.97	0.7099	-428.0	-394.7
79	0.00	1.99	0.00	1.43	31.40	151.10	27.29	327.42	0.7291	-694.0	-534.7
80	0.00	0.78	0.00	0.55	29.94	150.50	26.69	326.71	0.7114	-753.0	-631.0
81	0.00	1.04	0.00	0.74	31.25	149.88	26.07	328.43	0.7199	-766.0	-599.3

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
