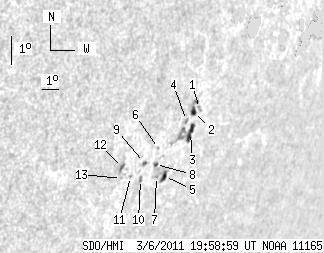

SDO HMI 2011-03-06 19:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.94 | 47.27 | 17.01 | 47.01 | -22.69 | 182.29 | 60.69 | 247.95 | 0.8699 | 181.5 | 201.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-03-06 19:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.33 | 0.00 | 2.37 | -21.55 | 183.04 | 61.44 | 249.33 | 0.8751 | 441.0 | 344.1 | |
| 3.54 | 6.74 | 3.57 | 6.78 | -21.67 | 182.73 | 61.13 | 249.16 | 0.8727 | 643.9 | 579.6 | |
| 7.09 | 18.32 | 7.20 | 18.48 | -22.31 | 183.00 | 61.40 | 248.46 | 0.8752 | 398.8 | 439.1 | |
| 0.00 | 1.64 | 0.00 | 1.64 | -21.98 | 182.49 | 60.89 | 248.79 | 0.8710 | 693.0 | 642.5 | |
| 3.80 | 4.84 | 3.81 | 4.85 | -23.77 | 182.38 | 60.78 | 246.73 | 0.8714 | 301.7 | 252.2 | |
| 0.00 | 1.30 | 0.00 | 1.26 | -22.99 | 181.39 | 59.78 | 247.54 | 0.8629 | -308.0 | -224.7 | |
| 0.00 | 1.30 | 0.00 | 1.28 | -23.83 | 181.89 | 60.29 | 246.62 | 0.8676 | 315.0 | 272.2 | |
| 1.30 | 2.33 | 1.27 | 2.29 | -23.48 | 181.56 | 59.96 | 246.98 | 0.8647 | -229.6 | -68.6 | |
| 1.21 | 2.42 | 1.16 | 2.33 | -23.49 | 180.86 | 59.25 | 246.90 | 0.8590 | -449.9 | -452.3 | |
| 0.00 | 1.90 | 0.00 | 1.84 | -24.02 | 181.00 | 59.39 | 246.30 | 0.8606 | -409.0 | -228.7 | |
| 0.00 | 1.04 | 0.00 | 0.98 | -23.99 | 180.34 | 58.73 | 246.26 | 0.8552 | -450.0 | -371.5 | |
| 0.00 | 2.59 | 0.00 | 2.42 | -23.77 | 179.68 | 58.07 | 246.43 | 0.8495 | -673.0 | -560.7 | |
| 0.00 | 0.52 | 0.00 | 0.49 | -24.10 | 179.86 | 58.25 | 246.07 | 0.8513 | -575.0 | -489.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
