SDO HMI 2011-03-07 02:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 229.93 | 1320.22 | 197.67 | 1136.11 | 23.53 | 164.02 | 46.26 | 305.79 | 0.8173 | 149.8 | -34.8 | |
|
previous
or next observation for the same group /

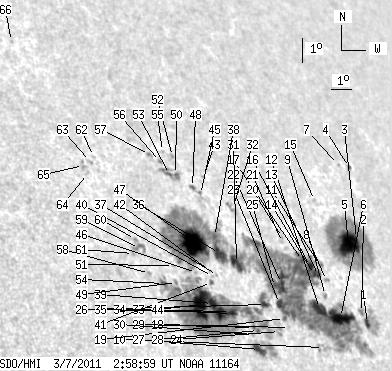

back to the solar disc SDO HMI 2011-03-07 02:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.20 | 21.80 | 2.98 | 20.44 | 22.37 | 168.53 | 50.77 | 302.22 | 0.8489 | -389.8 | 14.9 | |
| 0.87 | 3.89 | 0.81 | 3.63 | 22.73 | 168.41 | 50.65 | 302.66 | 0.8493 | -440.3 | -214.3 | |
| 1.21 | 166.34 | 1.20 | 162.67 | 25.39 | 169.63 | 51.88 | 304.90 | 0.8686 | 137.3 | -194.5 | |
| 1.38 | 1.90 | 1.48 | 2.03 | 28.02 | 170.99 | 53.23 | 307.00 | 0.8874 | 210.8 | 238.7 | |
| 28.03 | -3.00 | 27.35 | -3.00 | 25.12 | 169.05 | 51.29 | 304.89 | 0.8634 | -690.5 | 999999 | |
| 20.41 | 713.90 | 18.46 | 614.33 | 22.44 | 167.20 | 49.44 | 302.92 | 0.8387 | -631.0 | -151.3 | |
| 0.00 | 0.61 | 0.00 | 0.64 | 28.06 | 170.40 | 52.65 | 307.30 | 0.8837 | 211.0 | 198.1 | |
| 0.00 | 2.08 | 0.00 | 1.90 | 23.68 | 167.12 | 49.37 | 304.29 | 0.8433 | -515.0 | -365.4 | |
| 0.00 | 1.82 | 0.00 | 1.64 | 23.14 | 166.80 | 49.04 | 303.87 | 0.8385 | -599.0 | -392.7 | |
| 0.00 | 7.61 | 0.00 | 6.60 | 21.30 | 165.84 | 48.08 | 302.34 | 0.8228 | 2.0 | -330.9 | |
| 1.56 | 2.25 | 1.44 | 2.07 | 24.19 | 167.09 | 49.33 | 304.85 | 0.8451 | -279.1 | -247.2 | |
| 12.54 | -6.00 | 11.14 | -6.00 | 22.65 | 166.27 | 48.51 | 303.60 | 0.8321 | -778.2 | 999999 | |
| 1.82 | -6.00 | 1.65 | -6.00 | 23.82 | 166.80 | 49.04 | 304.59 | 0.8413 | -547.2 | 999999 | |
| 0.95 | -6.00 | 0.86 | -6.00 | 23.84 | 166.60 | 48.85 | 304.70 | 0.8399 | -814.7 | 999999 | |
| 0.00 | 1.47 | 0.00 | 1.43 | 26.55 | 168.12 | 50.36 | 306.81 | 0.8624 | -485.0 | -339.1 | |
| 3.29 | -6.00 | 2.99 | -6.00 | 24.10 | 166.54 | 48.78 | 305.02 | 0.8406 | -751.4 | 999999 | |
| 1.73 | -6.00 | 1.57 | -6.00 | 24.28 | 166.23 | 48.48 | 305.36 | 0.8390 | -736.5 | 999999 | |
| 0.00 | 0.35 | 0.00 | 0.29 | 21.83 | 164.46 | 46.70 | 303.63 | 0.8136 | -463.0 | -439.5 | |
| 1.12 | -6.00 | 0.95 | -6.00 | 22.12 | 164.35 | 46.59 | 304.00 | 0.8140 | -789.9 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.78 | 25.01 | 165.63 | 47.87 | 306.44 | 0.8375 | -644.0 | -608.9 | |
| 0.00 | 1.12 | 0.00 | 1.01 | 24.83 | 165.53 | 47.77 | 306.30 | 0.8360 | -326.0 | -309.2 | |
| 14.88 | -6.00 | 12.91 | -6.00 | 23.34 | 164.76 | 47.00 | 305.12 | 0.8231 | 438.2 | 999999 | |
| 4.15 | -6.00 | 3.54 | -6.00 | 22.62 | 164.34 | 46.58 | 304.56 | 0.8163 | 360.7 | 999999 | |
| 0.00 | 3.72 | 0.00 | 3.11 | 21.64 | 163.91 | 46.15 | 303.71 | 0.8081 | -390.0 | -368.0 | |
| 1.47 | -6.00 | 1.26 | -6.00 | 23.20 | 164.36 | 46.60 | 305.17 | 0.8192 | -333.9 | 999999 | |
| 3.03 | 305.18 | 2.54 | 243.45 | 22.52 | 163.64 | 45.88 | 304.82 | 0.8100 | 350.3 | 325.8 | |
| 8.13 | 24.31 | 6.60 | 19.82 | 20.92 | 162.71 | 44.95 | 303.56 | 0.7942 | 557.2 | 25.8 | |
| 1.30 | -26.00 | 1.06 | -26.00 | 21.58 | 162.92 | 45.16 | 304.18 | 0.7993 | 174.1 | 999999 | |
| 0.52 | -26.00 | 0.42 | -26.00 | 21.66 | 162.73 | 44.97 | 304.37 | 0.7980 | 385.3 | 999999 | |
| 0.00 | 2.08 | 0.00 | 1.69 | 21.42 | 162.63 | 44.87 | 304.16 | 0.7960 | 322.0 | 344.9 | |
| 10.64 | -6.00 | 8.95 | -6.00 | 23.84 | 162.87 | 45.11 | 306.68 | 0.8102 | 553.0 | 999999 | |
| 0.00 | 6.06 | 0.00 | 5.29 | 25.82 | 163.62 | 45.86 | 308.36 | 0.8260 | -276.0 | -220.8 | |
| 2.60 | -26.00 | 2.10 | -26.00 | 22.05 | 161.89 | 44.13 | 305.28 | 0.7928 | 289.3 | 999999 | |
| 0.95 | -26.00 | 0.77 | -26.00 | 22.12 | 161.87 | 44.11 | 305.36 | 0.7930 | -452.2 | 999999 | |
| 7.27 | -26.00 | 5.82 | -26.00 | 22.04 | 161.39 | 43.63 | 305.55 | 0.7884 | 618.7 | 999999 | |
| 13.58 | -6.00 | 11.31 | -6.00 | 24.12 | 162.21 | 44.45 | 307.35 | 0.8063 | 545.8 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.64 | 23.33 | 161.78 | 44.02 | 306.74 | 0.7985 | 313.0 | 276.2 | |
| 1.99 | -6.00 | 1.67 | -6.00 | 24.71 | 162.25 | 44.49 | 307.96 | 0.8096 | -417.1 | 999999 | |
| 5.80 | -26.00 | 4.64 | -26.00 | 22.32 | 161.15 | 43.39 | 306.00 | 0.7878 | 609.5 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.78 | 23.27 | 161.53 | 43.77 | 306.82 | 0.7961 | 371.0 | 339.6 | |
| 1.73 | 2.16 | 1.40 | 1.75 | 23.06 | 161.40 | 43.64 | 306.66 | 0.7938 | 370.5 | 386.0 | |
| 0.00 | 0.78 | 0.00 | 0.64 | 23.44 | 161.51 | 43.75 | 307.02 | 0.7969 | 578.0 | 475.7 | |
| 0.00 | 0.87 | 0.00 | 0.75 | 26.86 | 162.77 | 45.01 | 309.92 | 0.8248 | -189.0 | -159.8 | |
| 26.99 | -26.00 | 21.39 | -26.00 | 22.24 | 160.63 | 42.87 | 306.22 | 0.7828 | 896.4 | 999999 | |
| 0.00 | 2.42 | 0.00 | 2.07 | 26.18 | 162.29 | 44.53 | 309.48 | 0.8176 | -180.0 | -134.5 | |
| 0.00 | 0.87 | 0.00 | 0.70 | 23.34 | 160.84 | 43.08 | 307.30 | 0.7907 | 596.0 | 526.9 | |
| 40.22 | -6.00 | 32.96 | -6.00 | 24.40 | 161.15 | 43.39 | 308.26 | 0.7991 | 809.2 | 999999 | |
| 1.47 | 2.60 | 1.26 | 2.22 | 26.40 | 162.02 | 44.26 | 309.87 | 0.8167 | -228.4 | -179.7 | |
| 0.00 | 2.16 | 0.00 | 1.70 | 22.91 | 159.79 | 42.03 | 307.46 | 0.7793 | 664.0 | 548.3 | |
| 1.21 | 12.80 | 1.03 | 10.82 | 26.80 | 161.43 | 43.67 | 310.63 | 0.8144 | -330.0 | -215.4 | |
| 0.00 | 0.78 | 0.00 | 0.62 | 23.50 | 159.89 | 42.13 | 308.05 | 0.7835 | 578.0 | 509.1 | |
| 0.00 | 1.64 | 0.00 | 1.41 | 27.45 | 161.61 | 43.85 | 311.20 | 0.8193 | 639.0 | 563.4 | |
| 1.90 | -50.00 | 1.61 | -50.00 | 26.77 | 161.14 | 43.38 | 310.78 | 0.8120 | -388.4 | 999999 | |
| 1.99 | -26.00 | 1.55 | -26.00 | 22.82 | 159.19 | 41.43 | 307.74 | 0.7736 | 653.4 | 999999 | |
| 0.00 | 1.21 | 0.00 | 1.03 | 27.60 | 161.22 | 43.46 | 311.58 | 0.8171 | 658.0 | 538.6 | |
| 0.00 | 1.56 | 0.00 | 1.32 | 27.21 | 160.94 | 43.18 | 311.35 | 0.8129 | -96.0 | -40.2 | |
| 0.00 | 1.73 | 0.00 | 1.46 | 27.42 | 160.53 | 42.78 | 311.82 | 0.8110 | 640.0 | 490.6 | |
| 0.00 | 1.64 | 0.00 | 1.27 | 23.12 | 158.70 | 40.94 | 308.38 | 0.7711 | 728.0 | 616.0 | |
| 0.00 | 6.49 | 0.00 | 5.07 | 23.96 | 158.59 | 40.83 | 309.37 | 0.7752 | 646.0 | 613.2 | |
| 0.00 | 1.56 | 0.00 | 1.22 | 24.27 | 158.53 | 40.78 | 309.74 | 0.7766 | 518.0 | 467.2 | |
| 0.00 | 1.30 | 0.00 | 1.00 | 23.76 | 158.25 | 40.50 | 309.37 | 0.7711 | 705.0 | 586.1 | |
| 0.00 | 1.12 | 0.00 | 0.90 | 27.11 | 157.88 | 40.12 | 313.17 | 0.7888 | 359.0 | 311.2 | |
| 0.00 | 1.30 | 0.00 | 1.03 | 26.92 | 157.67 | 39.91 | 313.11 | 0.7859 | 516.0 | 483.3 | |
| 0.00 | 1.73 | 0.00 | 1.36 | 26.46 | 157.34 | 39.59 | 312.86 | 0.7805 | 639.0 | 572.2 | |
| 0.00 | 3.29 | 0.00 | 2.60 | 26.74 | 157.29 | 39.53 | 313.18 | 0.7818 | 692.0 | 594.9 | |
| 0.00 | 1.12 | 0.00 | 0.93 | 31.15 | 156.11 | 38.35 | 318.39 | 0.8020 | -310.0 | -265.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
