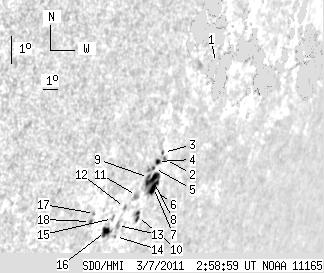

SDO HMI 2011-03-07 02:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.14 | 118.94 | 31.75 | 139.78 | -20.36 | 183.46 | 65.70 | 250.84 | 0.9064 | 163.5 | 328.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-03-07 02:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.30 | 60.90 | 1.56 | 74.85 | -18.30 | 184.51 | 66.75 | 253.15 | 0.9132 | 350.7 | 408.2 | |
| 0.95 | 1.38 | 1.09 | 1.59 | -21.50 | 183.19 | 65.43 | 249.61 | 0.9046 | 276.3 | 311.6 | |
| 0.69 | 1.38 | 0.79 | 1.58 | -21.31 | 182.88 | 65.12 | 249.80 | 0.9024 | 450.9 | 477.1 | |
| 1.82 | 2.51 | 2.06 | 2.84 | -21.62 | 182.68 | 64.92 | 249.45 | 0.9011 | 568.5 | 508.1 | |
| 0.87 | 3.72 | 0.98 | 4.18 | -21.84 | 182.64 | 64.88 | 249.20 | 0.9009 | 655.0 | 507.2 | |
| 1.04 | 23.79 | 1.20 | 27.12 | -22.48 | 183.21 | 65.45 | 248.52 | 0.9050 | -146.0 | 319.7 | |
| 4.07 | -6.00 | 4.67 | -6.00 | -22.40 | 183.06 | 65.30 | 248.60 | 0.9040 | 270.4 | 999999 | |
| 7.79 | -6.00 | 8.85 | -6.00 | -22.18 | 182.78 | 65.02 | 248.84 | 0.9020 | 508.8 | 999999 | |
| 0.87 | -6.00 | 0.97 | -6.00 | -22.15 | 182.45 | 64.69 | 248.85 | 0.8997 | 662.1 | 999999 | |
| 3.37 | 4.41 | 3.83 | 5.01 | -23.36 | 182.70 | 64.94 | 247.51 | 0.9019 | 253.3 | 149.3 | |
| 0.00 | 3.55 | 0.00 | 3.95 | -22.76 | 182.08 | 64.32 | 248.15 | 0.8973 | 327.0 | 254.3 | |
| 0.00 | 1.64 | 0.00 | 1.80 | -23.20 | 181.57 | 63.81 | 247.62 | 0.8938 | -318.0 | -223.0 | |
| 0.00 | 2.94 | 0.00 | 3.23 | -23.78 | 181.57 | 63.81 | 246.98 | 0.8941 | 148.0 | 129.3 | |
| 0.00 | 1.04 | 0.00 | 1.14 | -24.11 | 181.72 | 63.97 | 246.62 | 0.8954 | -128.0 | -43.5 | |
| 0.00 | 1.64 | 0.00 | 1.77 | -23.61 | 181.05 | 63.29 | 247.13 | 0.8903 | -546.0 | -417.5 | |
| 5.02 | 7.53 | 5.39 | 8.11 | -24.04 | 180.92 | 63.16 | 246.64 | 0.8896 | -388.9 | 28.1 | |
| 0.00 | 0.69 | 0.00 | 0.72 | -23.59 | 179.75 | 61.99 | 247.05 | 0.8806 | -479.0 | -460.0 | |
| 0.35 | 1.82 | 0.36 | 1.89 | -23.85 | 179.69 | 61.93 | 246.75 | 0.8803 | -584.2 | -510.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
