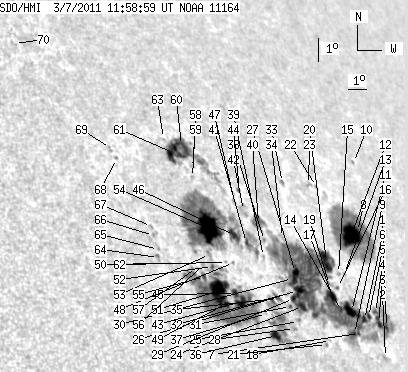

SDO HMI 2011-03-07 11:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 221.81 | 1256.11 | 212.47 | 1205.77 | 23.57 | 164.38 | 51.54 | 303.20 | 0.8585 | 73.8 | -38.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-03-07 11:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.86 | 448.94 | 3.04 | 446.67 | 21.99 | 168.99 | 56.15 | 299.55 | 0.8871 | -420.5 | -399.2 | |
| 0.00 | 3.03 | 0.00 | 3.12 | 20.92 | 168.30 | 55.47 | 298.68 | 0.8791 | -211.0 | -226.7 | |
| 4.84 | -1.00 | 5.12 | -1.00 | 22.12 | 168.60 | 55.76 | 299.83 | 0.8848 | -605.2 | 999999 | |
| 2.25 | -1.00 | 2.39 | -1.00 | 22.46 | 168.63 | 55.80 | 300.17 | 0.8861 | -271.9 | 999999 | |
| 2.68 | -1.00 | 2.80 | -1.00 | 22.27 | 168.12 | 55.28 | 300.18 | 0.8819 | -295.5 | 999999 | |
| 2.25 | -1.00 | 2.32 | -1.00 | 22.13 | 167.81 | 54.98 | 300.16 | 0.8793 | -627.0 | 999999 | |
| 0.26 | -1.00 | 0.26 | -1.00 | 21.60 | 167.23 | 54.39 | 299.83 | 0.8734 | -355.7 | 999999 | |
| 2.60 | 147.17 | 2.92 | 163.43 | 25.30 | 169.47 | 56.63 | 302.80 | 0.9001 | 284.7 | -97.9 | |
| 1.56 | -1.00 | 1.56 | -1.00 | 21.57 | 166.94 | 54.10 | 299.91 | 0.8711 | -991.4 | 999999 | |
| 0.00 | 1.12 | 0.00 | 1.39 | 27.91 | 171.30 | 58.46 | 304.76 | 0.9184 | 187.0 | 131.1 | |
| 10.90 | -1.00 | 11.10 | -1.00 | 22.33 | 167.20 | 54.37 | 300.61 | 0.8755 | -685.9 | 999999 | |
| 24.05 | -8.00 | 26.57 | -8.00 | 25.06 | 168.88 | 56.05 | 302.79 | 0.8956 | -852.0 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.90 | 23.66 | 167.61 | 54.77 | 301.84 | 0.8827 | -142.0 | -81.8 | |
| 0.95 | -1.00 | 0.95 | -1.00 | 22.31 | 166.63 | 53.80 | 300.82 | 0.8713 | -885.2 | 999999 | |
| 0.00 | 1.47 | 0.00 | 1.52 | 23.62 | 167.24 | 54.41 | 301.95 | 0.8800 | -298.0 | -218.8 | |
| 1.04 | 1.47 | 1.06 | 1.50 | 23.11 | 166.88 | 54.04 | 301.56 | 0.8758 | -376.2 | -363.6 | |
| 6.40 | -1.00 | 6.41 | -1.00 | 22.79 | 166.42 | 53.58 | 301.42 | 0.8714 | -704.0 | 999999 | |
| 0.00 | 1.04 | 0.00 | 1.00 | 21.18 | 165.44 | 52.60 | 300.12 | 0.8585 | 205.0 | 162.4 | |
| 0.00 | 3.63 | 0.00 | 3.66 | 23.16 | 166.47 | 53.63 | 301.79 | 0.8730 | -430.0 | -423.7 | |
| 13.15 | -1.00 | 13.50 | -1.00 | 23.98 | 166.79 | 53.96 | 302.51 | 0.8781 | -744.9 | 999999 | |
| 0.00 | 1.21 | 0.00 | 1.15 | 21.01 | 165.14 | 52.31 | 300.07 | 0.8556 | 292.0 | 273.5 | |
| 0.00 | 1.04 | 0.00 | 1.14 | 26.70 | 168.05 | 55.21 | 304.80 | 0.8954 | -282.0 | -221.3 | |
| 0.00 | 1.38 | 0.00 | 1.51 | 26.72 | 167.60 | 54.76 | 305.01 | 0.8926 | -556.0 | -443.1 | |
| 5.10 | -1.00 | 4.84 | -1.00 | 22.21 | 164.50 | 51.66 | 301.64 | 0.8550 | -722.6 | 999999 | |
| 0.00 | 1.82 | 0.00 | 1.69 | 21.66 | 164.01 | 51.18 | 301.26 | 0.8492 | -495.0 | -478.8 | |
| 5.97 | -1.00 | 5.71 | -1.00 | 22.75 | 164.53 | 51.69 | 302.20 | 0.8572 | 411.0 | 999999 | |
| 3.72 | -1.00 | 3.60 | -1.00 | 23.39 | 164.77 | 51.93 | 302.77 | 0.8614 | 515.4 | 999999 | |
| 0.00 | 2.16 | 0.00 | 1.99 | 21.39 | 163.68 | 50.84 | 301.12 | 0.8455 | -393.0 | -368.6 | |
| 2.16 | -1.00 | 2.04 | -1.00 | 22.45 | 164.15 | 51.32 | 302.04 | 0.8532 | 346.8 | 999999 | |
| 1.04 | -1.00 | 1.00 | -1.00 | 23.15 | 164.48 | 51.64 | 302.65 | 0.8584 | 632.7 | 999999 | |
| 0.78 | 1.90 | 0.73 | 1.78 | 22.14 | 163.85 | 51.01 | 301.86 | 0.8497 | 106.7 | -55.9 | |
| 0.00 | 2.16 | 0.00 | 2.03 | 22.59 | 163.92 | 51.08 | 302.30 | 0.8520 | 359.0 | 403.9 | |
| 0.00 | 2.25 | 0.00 | 2.35 | 26.62 | 166.05 | 53.21 | 305.57 | 0.8821 | 321.0 | 276.5 | |
| 0.00 | 3.11 | 0.00 | 3.06 | 24.58 | 164.76 | 51.92 | 304.03 | 0.8658 | -298.0 | -244.2 | |
| 1.04 | 5.54 | 0.96 | 5.12 | 22.36 | 163.29 | 50.45 | 302.34 | 0.8462 | 296.7 | 239.2 | |
| 6.83 | 57.79 | 6.12 | 52.42 | 21.05 | 162.61 | 49.77 | 301.24 | 0.8356 | 571.9 | -102.7 | |
| 0.00 | 0.78 | 0.00 | 0.70 | 21.77 | 162.45 | 49.61 | 302.10 | 0.8372 | 326.0 | 248.6 | |
| 0.00 | 1.12 | 0.00 | 1.07 | 24.37 | 163.69 | 50.85 | 304.29 | 0.8571 | 334.0 | 268.2 | |
| 0.00 | 1.12 | 0.00 | 1.06 | 23.78 | 163.31 | 50.48 | 303.85 | 0.8520 | 300.0 | 241.9 | |
| 0.00 | 14.45 | 0.00 | 13.92 | 24.99 | 163.73 | 50.89 | 304.93 | 0.8599 | 231.0 | 121.2 | |
| 2.34 | 21.02 | 2.18 | 19.69 | 24.19 | 162.67 | 49.83 | 304.59 | 0.8488 | 443.8 | 156.1 | |
| 0.00 | 6.58 | 0.00 | 6.28 | 25.34 | 163.15 | 50.31 | 305.57 | 0.8571 | 11.0 | 90.7 | |
| 7.18 | 215.08 | 6.33 | 186.53 | 22.06 | 161.35 | 48.52 | 302.94 | 0.8295 | 611.7 | 440.1 | |
| 0.78 | 1.82 | 0.75 | 1.76 | 26.06 | 163.36 | 50.53 | 306.21 | 0.8615 | -172.7 | -95.8 | |
| 3.89 | -43.00 | 3.43 | -43.00 | 22.31 | 161.18 | 48.34 | 303.30 | 0.8292 | 675.9 | 999999 | |
| 7.44 | 207.64 | 6.86 | 187.53 | 24.38 | 162.16 | 49.32 | 305.03 | 0.8457 | 553.1 | 305.4 | |
| 0.00 | 1.38 | 0.00 | 1.32 | 25.62 | 162.85 | 50.01 | 306.01 | 0.8560 | -221.0 | -143.3 | |
| 0.00 | 1.12 | 0.00 | 1.01 | 23.40 | 161.61 | 48.77 | 304.27 | 0.8373 | 367.0 | 291.2 | |
| 1.56 | -43.00 | 1.35 | -43.00 | 21.91 | 160.56 | 47.73 | 303.18 | 0.8224 | 746.7 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.85 | 23.36 | 161.24 | 48.41 | 304.41 | 0.8343 | 494.0 | 434.3 | |
| 26.99 | -43.00 | 23.41 | -43.00 | 22.34 | 160.42 | 47.58 | 303.71 | 0.8231 | 918.5 | 999999 | |
| 1.38 | -43.00 | 1.21 | -43.00 | 23.15 | 160.46 | 47.62 | 304.57 | 0.8271 | 721.5 | 999999 | |
| 0.00 | 4.24 | 0.00 | 3.74 | 23.56 | 160.51 | 47.67 | 304.99 | 0.8294 | 671.0 | 651.9 | |
| 33.91 | -46.00 | 30.52 | -46.00 | 24.49 | 160.93 | 48.09 | 305.77 | 0.8368 | 915.8 | 999999 | |
| 2.16 | -43.00 | 1.86 | -43.00 | 22.76 | 159.89 | 47.06 | 304.44 | 0.8207 | 726.1 | 999999 | |
| 0.00 | 1.38 | 0.00 | 1.20 | 23.18 | 160.04 | 47.20 | 304.82 | 0.8238 | 556.0 | 484.3 | |
| 0.00 | 0.78 | 0.00 | 0.67 | 23.04 | 159.64 | 46.80 | 304.87 | 0.8199 | 564.0 | 540.3 | |
| 0.00 | 1.90 | 0.00 | 1.76 | 26.28 | 161.08 | 48.25 | 307.56 | 0.8460 | 378.0 | 327.5 | |
| 0.00 | 1.12 | 0.00 | 1.05 | 26.65 | 161.29 | 48.46 | 307.84 | 0.8492 | 332.0 | 284.9 | |
| 13.84 | 71.72 | 13.01 | 67.25 | 27.42 | 161.18 | 48.34 | 308.69 | 0.8518 | 354.5 | 240.2 | |
| 17.91 | -60.00 | 16.56 | -60.00 | 27.08 | 160.63 | 47.80 | 308.62 | 0.8463 | -449.4 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.58 | 23.05 | 158.43 | 45.59 | 305.54 | 0.8101 | 654.0 | 535.0 | |
| 0.00 | 0.69 | 0.00 | 0.64 | 27.58 | 160.37 | 47.53 | 309.28 | 0.8468 | 527.0 | 440.0 | |
| 0.00 | 2.34 | 0.00 | 1.95 | 23.21 | 157.94 | 45.11 | 305.98 | 0.8068 | 593.0 | 544.2 | |
| 0.00 | 1.21 | 0.00 | 1.02 | 23.50 | 158.07 | 45.23 | 306.22 | 0.8093 | 407.0 | 404.6 | |
| 0.00 | 1.04 | 0.00 | 0.88 | 23.97 | 158.05 | 45.21 | 306.75 | 0.8115 | 404.0 | 491.8 | |
| 0.00 | 1.82 | 0.00 | 1.54 | 24.29 | 158.10 | 45.26 | 307.05 | 0.8135 | 460.0 | 445.1 | |
| 0.00 | 0.95 | 0.00 | 0.82 | 26.60 | 157.57 | 44.73 | 309.80 | 0.8212 | 478.0 | 385.3 | |
| 0.00 | 1.99 | 0.00 | 1.72 | 26.94 | 157.46 | 44.62 | 310.22 | 0.8222 | 616.0 | 463.4 | |
| 0.00 | 2.08 | 0.00 | 1.80 | 30.49 | 154.81 | 41.97 | 315.38 | 0.8227 | -381.0 | -357.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
