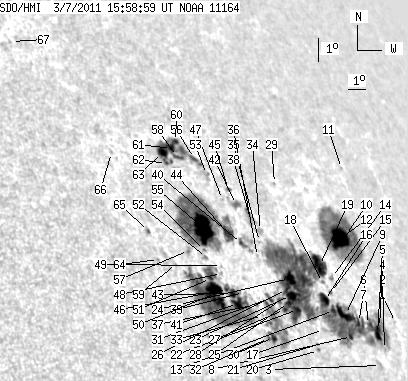

SDO HMI 2011-03-07 15:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 211.17 | 1151.64 | 214.12 | 1170.29 | 23.52 | 164.38 | 53.74 | 302.19 | 0.8742 | 86.4 | -43.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-03-07 15:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 1.14 | 22.43 | 170.48 | 59.85 | 298.67 | 0.9127 | -266.0 | -134.7 | |
| 0.00 | 1.30 | 0.00 | 1.47 | 21.38 | 169.07 | 58.43 | 298.06 | 0.9010 | -216.0 | -205.2 | |
| 0.00 | 4.06 | 0.00 | 4.48 | 20.78 | 168.45 | 57.81 | 297.66 | 0.8952 | -406.0 | -372.0 | |
| 0.26 | 441.22 | 0.30 | 465.41 | 22.13 | 169.26 | 58.62 | 298.78 | 0.9041 | 265.0 | -386.2 | |
| 6.23 | -4.00 | 7.08 | -4.00 | 21.90 | 168.98 | 58.34 | 298.64 | 0.9017 | -543.1 | 999999 | |
| 0.78 | -4.00 | 0.88 | -4.00 | 22.15 | 168.59 | 57.96 | 299.05 | 0.8999 | -543.7 | 999999 | |
| 1.82 | -4.00 | 2.01 | -4.00 | 22.15 | 167.99 | 57.35 | 299.27 | 0.8958 | -551.7 | 999999 | |
| 1.82 | -4.00 | 1.95 | -4.00 | 21.60 | 167.23 | 56.59 | 298.97 | 0.8891 | -370.0 | 999999 | |
| 10.72 | -4.00 | 11.64 | -4.00 | 22.35 | 167.34 | 56.70 | 299.71 | 0.8920 | -580.3 | 999999 | |
| 3.20 | 136.12 | 3.85 | 161.61 | 25.25 | 169.39 | 58.75 | 301.96 | 0.9131 | 334.2 | -75.2 | |
| 0.00 | 0.69 | 0.00 | 0.93 | 27.81 | 171.32 | 60.69 | 303.85 | 0.9303 | 156.0 | 165.2 | |
| 21.36 | -10.00 | 25.16 | -10.00 | 25.05 | 168.79 | 58.15 | 301.97 | 0.9089 | -826.1 | 999999 | |
| 1.99 | -4.00 | 2.12 | -4.00 | 22.41 | 166.68 | 56.04 | 300.03 | 0.8876 | -838.2 | 999999 | |
| 0.00 | 2.59 | 0.00 | 2.86 | 23.59 | 167.32 | 56.68 | 301.02 | 0.8954 | -265.0 | -120.3 | |
| 1.12 | 1.73 | 1.22 | 1.87 | 23.04 | 166.90 | 56.26 | 300.60 | 0.8910 | -244.2 | -237.7 | |
| 10.46 | -4.00 | 11.09 | -4.00 | 22.71 | 166.34 | 55.70 | 300.47 | 0.8862 | -740.8 | 999999 | |
| 0.00 | 2.08 | 0.00 | 2.13 | 21.66 | 165.66 | 55.02 | 299.64 | 0.8782 | -442.0 | -419.7 | |
| 0.00 | 1.38 | 0.00 | 1.49 | 23.34 | 166.63 | 55.99 | 301.03 | 0.8901 | -543.0 | -530.6 | |
| 16.26 | -4.00 | 17.78 | -4.00 | 23.94 | 166.85 | 56.21 | 301.57 | 0.8933 | -620.6 | 999999 | |
| 1.12 | 1.47 | 1.12 | 1.47 | 20.89 | 164.95 | 54.32 | 299.10 | 0.8705 | 229.2 | 177.5 | |
| 0.00 | 1.30 | 0.00 | 1.30 | 21.09 | 165.01 | 54.37 | 299.30 | 0.8716 | 178.0 | 129.1 | |
| 2.77 | -4.00 | 2.78 | -4.00 | 22.21 | 164.53 | 53.89 | 300.68 | 0.8717 | -689.1 | 999999 | |
| 5.62 | -4.00 | 5.65 | -4.00 | 22.66 | 164.40 | 53.77 | 301.21 | 0.8723 | 478.4 | 999999 | |
| 8.73 | -4.00 | 8.92 | -4.00 | 23.27 | 164.70 | 54.07 | 301.72 | 0.8765 | 496.7 | 999999 | |
| 1.38 | -4.00 | 1.38 | -4.00 | 22.40 | 164.14 | 53.51 | 301.04 | 0.8695 | 468.5 | 999999 | |
| 1.38 | -4.00 | 1.39 | -4.00 | 22.85 | 164.29 | 53.66 | 301.46 | 0.8721 | 472.4 | 999999 | |
| 1.21 | -4.00 | 1.19 | -4.00 | 22.13 | 163.78 | 53.14 | 300.91 | 0.8658 | 253.9 | 999999 | |
| 3.03 | -4.00 | 2.98 | -4.00 | 22.42 | 163.72 | 53.09 | 301.24 | 0.8665 | 390.3 | 999999 | |
| 0.00 | 0.95 | 0.00 | 1.06 | 26.69 | 166.12 | 55.48 | 304.68 | 0.8971 | 394.0 | 315.6 | |
| 3.03 | 55.52 | 2.86 | 53.12 | 21.07 | 162.64 | 52.01 | 300.26 | 0.8535 | 523.8 | -126.3 | |
| 3.37 | -4.00 | 3.28 | -4.00 | 22.43 | 163.14 | 52.50 | 301.50 | 0.8621 | 325.7 | 999999 | |
| 0.35 | -30.00 | 0.32 | -30.00 | 21.01 | 162.35 | 51.72 | 300.32 | 0.8510 | 581.8 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.90 | 21.78 | 162.43 | 51.79 | 301.12 | 0.8544 | 152.0 | 165.5 | |
| 0.00 | 3.98 | 0.00 | 4.07 | 24.83 | 164.06 | 53.42 | 303.63 | 0.8773 | -45.0 | -40.7 | |
| 0.00 | 1.12 | 0.00 | 1.14 | 24.42 | 163.75 | 53.11 | 303.34 | 0.8737 | 328.0 | 174.5 | |
| 0.00 | 0.95 | 0.00 | 0.94 | 23.87 | 163.30 | 52.67 | 302.95 | 0.8685 | 420.0 | 325.8 | |
| 0.00 | 1.47 | 0.00 | 1.39 | 22.14 | 162.30 | 51.66 | 301.56 | 0.8547 | 30.0 | -20.6 | |
| 0.00 | 9.43 | 0.00 | 9.63 | 25.21 | 163.74 | 53.11 | 304.16 | 0.8764 | 322.0 | 131.0 | |
| 0.00 | 0.35 | 0.00 | 0.33 | 22.49 | 161.81 | 51.17 | 302.15 | 0.8523 | -20.0 | 70.8 | |
| 2.08 | 14.27 | 2.04 | 14.10 | 24.24 | 162.66 | 52.03 | 303.62 | 0.8653 | 498.8 | 121.1 | |
| 7.26 | 197.17 | 6.72 | 178.99 | 22.07 | 161.28 | 50.65 | 301.94 | 0.8466 | 595.7 | 467.9 | |
| 2.33 | 8.04 | 2.37 | 8.14 | 25.64 | 163.25 | 52.61 | 304.83 | 0.8745 | 206.2 | 59.7 | |
| 4.67 | -41.00 | 4.33 | -41.00 | 22.39 | 161.19 | 50.56 | 302.33 | 0.8471 | 554.2 | 999999 | |
| 8.30 | 185.50 | 8.07 | 175.60 | 24.53 | 162.14 | 51.50 | 304.16 | 0.8625 | 532.9 | 318.8 | |
| 1.21 | 1.99 | 1.23 | 2.03 | 26.15 | 163.13 | 52.50 | 305.40 | 0.8756 | -166.6 | -62.1 | |
| 1.47 | -41.00 | 1.36 | -41.00 | 22.51 | 161.00 | 50.36 | 302.54 | 0.8461 | 401.8 | 999999 | |
| 0.00 | 1.12 | 0.00 | 1.12 | 25.74 | 162.55 | 51.91 | 305.24 | 0.8701 | 424.0 | 335.5 | |
| 0.00 | 1.04 | 0.00 | 0.96 | 23.04 | 160.97 | 50.33 | 303.13 | 0.8480 | 305.0 | 259.2 | |
| 0.00 | 0.78 | 0.00 | 0.73 | 23.33 | 161.12 | 50.48 | 303.37 | 0.8502 | 398.0 | 333.6 | |
| 25.68 | -41.00 | 23.27 | -41.00 | 22.30 | 160.29 | 49.65 | 302.65 | 0.8397 | 894.4 | 999999 | |
| 1.38 | -41.00 | 1.26 | -41.00 | 22.80 | 160.29 | 49.65 | 303.20 | 0.8417 | 640.3 | 999999 | |
| 0.00 | 1.82 | 0.00 | 1.68 | 23.53 | 160.46 | 49.82 | 303.90 | 0.8460 | 739.0 | 624.6 | |
| 0.00 | 5.88 | 0.00 | 5.88 | 26.58 | 162.21 | 51.58 | 306.26 | 0.8709 | 518.0 | 330.1 | |
| 0.00 | 1.12 | 0.00 | 1.04 | 23.77 | 160.48 | 49.85 | 304.14 | 0.8472 | 782.0 | 747.3 | |
| 32.17 | -44.00 | 30.35 | -44.00 | 24.57 | 160.86 | 50.22 | 304.80 | 0.8533 | 876.6 | 999999 | |
| 3.20 | 54.83 | 3.20 | 53.70 | 27.11 | 161.91 | 51.27 | 306.94 | 0.8709 | 419.8 | 129.3 | |
| 0.00 | 3.37 | 0.00 | 3.06 | 23.69 | 159.64 | 49.00 | 304.46 | 0.8403 | 468.0 | 436.2 | |
| 3.03 | -56.00 | 2.96 | -56.00 | 27.08 | 160.98 | 50.35 | 307.35 | 0.8644 | -282.2 | 999999 | |
| 0.00 | 0.61 | 0.00 | 0.54 | 23.16 | 158.78 | 48.15 | 304.32 | 0.8313 | 587.0 | 529.9 | |
| 1.04 | -56.00 | 1.03 | -56.00 | 27.64 | 161.23 | 50.59 | 307.80 | 0.8684 | 542.8 | 999999 | |
| 2.25 | -56.00 | 2.20 | -56.00 | 27.35 | 160.84 | 50.20 | 307.70 | 0.8645 | -223.0 | 999999 | |
| 1.21 | -56.00 | 1.16 | -56.00 | 26.76 | 160.21 | 49.58 | 307.39 | 0.8577 | -316.4 | 999999 | |
| 5.45 | -56.00 | 5.24 | -56.00 | 27.15 | 160.24 | 49.60 | 307.78 | 0.8595 | -694.1 | 999999 | |
| 0.00 | 1.38 | 0.00 | 1.20 | 23.21 | 157.94 | 47.30 | 304.80 | 0.8248 | 661.0 | 514.9 | |
| 0.43 | 1.56 | 0.38 | 1.37 | 24.16 | 157.91 | 47.28 | 305.84 | 0.8290 | 664.0 | 579.7 | |
| 0.00 | 1.12 | 0.00 | 1.02 | 26.87 | 157.51 | 46.88 | 308.89 | 0.8386 | 362.0 | 342.9 | |
| 0.00 | 0.43 | 0.00 | 0.39 | 30.60 | 154.75 | 44.11 | 314.22 | 0.8380 | -375.0 | -396.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
