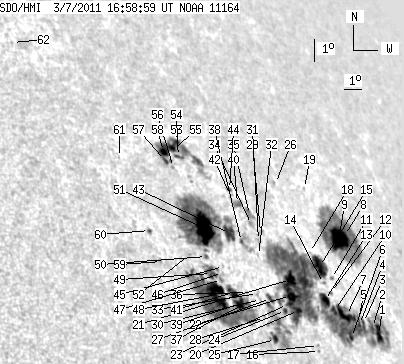

SDO HMI 2011-03-07 16:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 212.03 | 1125.73 | 217.77 | 1161.04 | 23.60 | 164.50 | 54.42 | 302.00 | 0.8793 | 80.9 | -43.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-03-07 16:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.52 | 489.08 | 8.72 | 519.25 | 21.89 | 169.04 | 58.95 | 298.42 | 0.9057 | -485.2 | -353.6 | |
| 2.77 | -1.00 | 3.19 | -1.00 | 22.10 | 168.80 | 58.72 | 298.72 | 0.9047 | -514.6 | 999999 | |
| 0.35 | -1.00 | 0.39 | -1.00 | 22.21 | 168.32 | 58.24 | 299.01 | 0.9019 | -233.8 | 999999 | |
| 1.47 | -1.00 | 1.65 | -1.00 | 22.11 | 168.01 | 57.92 | 299.01 | 0.8995 | -567.3 | 999999 | |
| 0.95 | -1.00 | 1.07 | -1.00 | 22.28 | 168.06 | 57.98 | 299.17 | 0.9003 | -259.5 | 999999 | |
| 1.38 | -1.00 | 1.51 | -1.00 | 21.58 | 167.19 | 57.11 | 298.76 | 0.8926 | -385.4 | 999999 | |
| 12.02 | -1.00 | 13.27 | -1.00 | 22.34 | 167.37 | 57.29 | 299.49 | 0.8959 | -556.6 | 999999 | |
| 3.03 | 134.29 | 3.70 | 162.32 | 25.27 | 169.36 | 59.28 | 301.79 | 0.9163 | 312.5 | -73.7 | |
| 20.84 | -8.00 | 24.98 | -8.00 | 25.04 | 168.79 | 58.70 | 301.75 | 0.9122 | -814.1 | 999999 | |
| 3.03 | -1.00 | 3.28 | -1.00 | 22.43 | 166.72 | 56.63 | 299.83 | 0.8918 | -809.7 | 999999 | |
| 0.00 | 1.64 | 0.00 | 1.84 | 23.57 | 167.29 | 57.20 | 300.80 | 0.8988 | -202.0 | -136.8 | |
| 1.12 | 1.47 | 1.24 | 1.62 | 23.06 | 166.88 | 56.80 | 300.42 | 0.8947 | -253.3 | -210.2 | |
| 10.20 | -1.00 | 10.99 | -1.00 | 22.72 | 166.32 | 56.23 | 300.29 | 0.8899 | -722.1 | 999999 | |
| 0.00 | 1.12 | 0.00 | 1.23 | 23.33 | 166.65 | 56.57 | 300.79 | 0.8939 | -537.0 | -506.5 | |
| 13.49 | -1.00 | 14.97 | -1.00 | 23.93 | 166.81 | 56.73 | 301.35 | 0.8967 | -676.8 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.96 | 20.87 | 164.94 | 54.86 | 298.87 | 0.8745 | 201.0 | 130.9 | |
| 0.00 | 0.95 | 0.00 | 0.97 | 21.08 | 165.00 | 54.91 | 299.06 | 0.8755 | 178.0 | 120.5 | |
| 0.00 | 0.86 | 0.00 | 0.96 | 24.37 | 166.52 | 56.43 | 301.92 | 0.8961 | -393.0 | -410.7 | |
| 0.00 | 1.12 | 0.00 | 1.34 | 26.74 | 167.98 | 57.90 | 303.79 | 0.9120 | -376.0 | -324.1 | |
| 1.99 | -1.00 | 2.02 | -1.00 | 22.19 | 164.51 | 54.43 | 300.44 | 0.8755 | -715.5 | 999999 | |
| 9.86 | -1.00 | 10.20 | -1.00 | 23.25 | 164.70 | 54.61 | 301.48 | 0.8803 | 502.1 | 999999 | |
| 7.96 | -1.00 | 8.11 | -1.00 | 22.68 | 164.35 | 54.27 | 301.02 | 0.8759 | 488.2 | 999999 | |
| 0.78 | -1.00 | 0.78 | -1.00 | 22.33 | 163.99 | 53.90 | 300.81 | 0.8722 | 453.6 | 999999 | |
| 1.30 | -1.00 | 1.29 | -1.00 | 22.11 | 163.75 | 53.67 | 300.67 | 0.8697 | 259.1 | 999999 | |
| 3.20 | -1.00 | 3.06 | -1.00 | 21.02 | 162.64 | 52.55 | 299.97 | 0.8576 | 537.0 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.88 | 26.71 | 166.18 | 56.09 | 304.46 | 0.9010 | 338.0 | 287.0 | |
| 2.85 | -1.00 | 2.81 | -1.00 | 22.44 | 163.12 | 53.04 | 301.29 | 0.8662 | 284.5 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.75 | 21.73 | 162.42 | 52.34 | 300.83 | 0.8584 | 212.0 | 220.9 | |
| 0.00 | 3.11 | 0.00 | 3.22 | 24.77 | 163.96 | 53.88 | 303.38 | 0.8802 | -23.0 | 52.6 | |
| 0.00 | 0.86 | 0.00 | 0.84 | 22.35 | 162.54 | 52.45 | 301.44 | 0.8615 | 170.0 | 111.7 | |
| 0.00 | 1.73 | 0.00 | 1.77 | 24.47 | 163.66 | 53.57 | 303.19 | 0.8771 | 377.0 | 263.6 | |
| 0.00 | 0.69 | 0.00 | 0.70 | 23.92 | 163.32 | 53.24 | 302.76 | 0.8728 | 342.0 | 268.9 | |
| 0.00 | 1.21 | 0.00 | 1.17 | 22.54 | 162.48 | 52.40 | 301.67 | 0.8618 | 221.0 | 171.9 | |
| 0.00 | 3.03 | 0.00 | 3.12 | 25.01 | 163.61 | 53.52 | 303.77 | 0.8786 | 254.0 | 223.0 | |
| 0.00 | 4.58 | 0.00 | 4.76 | 25.37 | 163.73 | 53.64 | 304.09 | 0.8807 | 243.0 | 112.8 | |
| 0.00 | 1.04 | 0.00 | 0.99 | 22.52 | 161.94 | 51.86 | 301.88 | 0.8576 | 220.0 | 163.9 | |
| 1.12 | 168.45 | 1.07 | 154.64 | 22.16 | 161.70 | 51.62 | 301.60 | 0.8545 | 107.3 | 470.6 | |
| 0.78 | 13.66 | 0.77 | 13.68 | 24.32 | 162.64 | 52.55 | 303.48 | 0.8694 | 505.3 | 177.0 | |
| 6.83 | -37.00 | 6.41 | -37.00 | 22.09 | 161.35 | 51.27 | 301.68 | 0.8515 | 572.4 | 999999 | |
| 0.00 | 7.00 | 0.00 | 7.21 | 25.70 | 163.28 | 53.19 | 304.63 | 0.8787 | 277.0 | 165.1 | |
| 6.14 | -37.00 | 5.75 | -37.00 | 22.43 | 161.12 | 51.03 | 302.16 | 0.8510 | 545.8 | 999999 | |
| 0.00 | 2.16 | 0.00 | 2.22 | 25.95 | 163.05 | 52.97 | 304.99 | 0.8781 | -386.0 | -225.5 | |
| 11.50 | 20.67 | 11.33 | 20.44 | 24.54 | 162.12 | 52.04 | 303.93 | 0.8665 | 457.0 | 62.4 | |
| 1.38 | 1.99 | 1.43 | 2.05 | 26.17 | 163.14 | 53.05 | 305.17 | 0.8795 | -163.7 | -74.0 | |
| 0.00 | 0.86 | 0.00 | 0.82 | 23.31 | 161.12 | 51.03 | 303.09 | 0.8544 | 381.0 | 305.2 | |
| 0.00 | 0.86 | 0.00 | 0.81 | 23.09 | 160.95 | 50.86 | 302.94 | 0.8522 | 302.0 | 230.9 | |
| 0.00 | 2.51 | 0.00 | 2.34 | 22.83 | 160.76 | 50.68 | 302.75 | 0.8498 | 394.0 | 363.3 | |
| 27.41 | -37.00 | 25.13 | -37.00 | 22.27 | 160.22 | 50.14 | 302.40 | 0.8434 | 870.6 | 999999 | |
| 6.31 | 14.35 | 5.85 | 13.31 | 22.99 | 160.33 | 50.25 | 303.12 | 0.8471 | 691.5 | 536.2 | |
| 0.00 | 1.90 | 0.00 | 1.78 | 23.57 | 160.38 | 50.30 | 303.72 | 0.8498 | 754.0 | 640.2 | |
| 31.65 | 172.94 | 30.25 | 164.96 | 24.58 | 160.83 | 50.74 | 304.57 | 0.8572 | 847.0 | 341.1 | |
| 0.00 | 1.12 | 0.00 | 1.03 | 23.55 | 159.51 | 49.43 | 304.11 | 0.8431 | 546.0 | 483.5 | |
| 2.68 | 61.91 | 2.66 | 61.57 | 27.09 | 160.97 | 50.88 | 307.11 | 0.8682 | -306.2 | 168.0 | |
| 1.64 | -53.00 | 1.65 | -53.00 | 27.66 | 161.28 | 51.19 | 307.54 | 0.8725 | 562.1 | 999999 | |
| 1.82 | -53.00 | 1.80 | -53.00 | 27.33 | 160.85 | 50.76 | 307.41 | 0.8683 | -277.9 | 999999 | |
| 0.00 | 1.04 | 0.00 | 1.01 | 26.65 | 160.43 | 50.34 | 306.91 | 0.8626 | -196.0 | -64.1 | |
| 2.42 | -53.00 | 2.35 | -53.00 | 26.87 | 160.14 | 50.05 | 307.27 | 0.8615 | -402.1 | 999999 | |
| 3.72 | -53.00 | 3.63 | -53.00 | 27.19 | 160.24 | 50.15 | 307.56 | 0.8635 | -703.9 | 999999 | |
| 0.00 | 1.47 | 0.00 | 1.29 | 23.16 | 157.93 | 47.85 | 304.47 | 0.8290 | 635.0 | 464.4 | |
| 0.52 | 1.99 | 0.46 | 1.77 | 24.21 | 157.86 | 47.78 | 305.62 | 0.8331 | 639.7 | 578.5 | |
| 0.00 | 0.52 | 0.00 | 0.48 | 26.73 | 157.72 | 47.63 | 308.35 | 0.8435 | 511.0 | 427.0 | |
| 0.00 | 1.04 | 0.00 | 0.94 | 30.56 | 154.65 | 44.57 | 313.91 | 0.8409 | -498.0 | -380.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
