SDO HMI 2011-03-08 02:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.67 | 265.71 | 11.17 | 621.30 | -17.90 | 184.90 | 80.32 | 253.11 | 0.9812 | 231.9 | 135.5 | |
|
previous
or next observation for the same group /

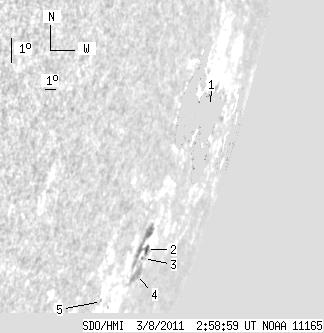

back to the solar disc SDO HMI 2011-03-08 02:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.77 | 227.53 | 7.07 | 541.22 | -17.25 | 185.16 | 80.58 | 253.76 | 0.9822 | 351.8 | 121.0 | |
| 1.90 | 24.58 | 4.10 | 51.08 | -22.03 | 183.16 | 78.58 | 249.00 | 0.9743 | 255.5 | 366.6 | |
| 0.00 | 1.13 | 0.00 | 2.43 | -22.31 | 183.24 | 78.66 | 248.71 | 0.9746 | -183.0 | -72.9 | |
| 0.00 | 11.86 | 0.00 | 25.48 | -22.83 | 183.17 | 78.59 | 248.17 | 0.9743 | 5.0 | 42.9 | |
| 0.00 | 0.61 | 0.00 | 1.09 | -24.05 | 180.32 | 75.73 | 246.99 | 0.9627 | -71.0 | -115.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
