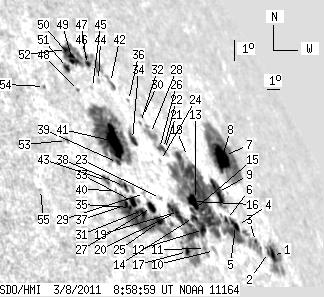

SDO HMI 2011-03-08 08:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 133.86 | 803.39 | 181.78 | 1096.39 | 23.73 | 164.12 | 62.81 | 299.09 | 0.9318 | 61.1 | -16.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-03-08 08:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.46 | 33.07 | 5.87 | 56.39 | 21.90 | 169.61 | 68.31 | 295.61 | 0.9574 | -390.9 | -39.7 | |
| 1.13 | -1.00 | 1.88 | -1.00 | 22.00 | 169.37 | 68.06 | 295.78 | 0.9564 | -416.8 | 999999 | |
| 0.61 | 16.88 | 0.97 | 26.82 | 22.26 | 168.52 | 67.21 | 296.26 | 0.9528 | -287.0 | -335.5 | |
| 1.04 | 296.98 | 1.60 | 411.17 | 22.66 | 167.42 | 66.12 | 296.97 | 0.9482 | 198.1 | -291.0 | |
| 3.20 | -4.00 | 4.87 | -4.00 | 22.64 | 167.24 | 65.94 | 297.00 | 0.9472 | -460.7 | 999999 | |
| 1.73 | -4.00 | 2.57 | -4.00 | 22.77 | 166.65 | 65.35 | 297.29 | 0.9445 | -633.2 | 999999 | |
| 4.68 | 96.37 | 8.09 | 165.06 | 25.21 | 169.02 | 67.72 | 299.09 | 0.9593 | 445.3 | 13.7 | |
| 13.77 | -7.00 | 23.12 | -7.00 | 25.02 | 168.54 | 67.23 | 299.03 | 0.9569 | -716.3 | 999999 | |
| 11.86 | -4.00 | 18.04 | -4.00 | 23.69 | 166.82 | 65.52 | 298.18 | 0.9469 | -481.8 | 999999 | |
| 0.00 | 3.38 | 0.00 | 4.55 | 21.50 | 164.66 | 63.36 | 296.59 | 0.9316 | -387.0 | -329.7 | |
| 0.00 | 7.27 | 0.00 | 9.57 | 21.49 | 164.01 | 62.71 | 296.77 | 0.9278 | -304.0 | -347.1 | |
| 4.33 | -4.00 | 5.82 | -4.00 | 22.17 | 164.41 | 63.10 | 297.35 | 0.9314 | -633.7 | 999999 | |
| 1.21 | -4.00 | 1.67 | -4.00 | 23.21 | 164.70 | 63.39 | 298.32 | 0.9350 | -296.1 | 999999 | |
| 1.73 | -4.00 | 2.30 | -4.00 | 22.52 | 163.98 | 62.67 | 297.84 | 0.9297 | 249.2 | 999999 | |
| 0.95 | -4.00 | 1.28 | -4.00 | 22.77 | 164.11 | 62.81 | 298.05 | 0.9309 | 431.7 | 999999 | |
| 6.67 | -4.00 | 9.07 | -4.00 | 23.10 | 164.39 | 63.09 | 298.31 | 0.9332 | 465.7 | 999999 | |
| 2.77 | -4.00 | 3.44 | -4.00 | 21.23 | 162.58 | 61.28 | 296.95 | 0.9188 | 414.0 | 999999 | |
| 0.00 | 0.35 | 0.00 | 0.51 | 24.76 | 165.52 | 64.22 | 299.64 | 0.9423 | -643.0 | -619.2 | |
| 3.29 | -4.00 | 4.22 | -4.00 | 22.60 | 163.00 | 61.70 | 298.24 | 0.9243 | -153.0 | 999999 | |
| 8.40 | -4.00 | 10.66 | -4.00 | 22.54 | 162.75 | 61.44 | 298.25 | 0.9226 | 260.4 | 999999 | |
| 0.43 | 6.49 | 0.59 | 8.80 | 24.80 | 163.86 | 62.55 | 300.20 | 0.9337 | 34.8 | 69.2 | |
| 1.56 | -21.00 | 2.12 | -21.00 | 24.83 | 163.81 | 62.51 | 300.24 | 0.9335 | -58.8 | 999999 | |
| 0.00 | 1.21 | 0.00 | 1.51 | 22.93 | 162.03 | 60.73 | 298.89 | 0.9193 | 280.0 | 192.2 | |
| 0.00 | 1.04 | 0.00 | 1.37 | 24.34 | 163.18 | 61.87 | 299.96 | 0.9290 | 193.0 | 148.2 | |
| 3.81 | 94.20 | 4.58 | 109.63 | 22.08 | 161.34 | 60.04 | 298.24 | 0.9131 | 538.9 | 449.6 | |
| 1.39 | -21.00 | 1.87 | -21.00 | 24.79 | 163.49 | 62.19 | 300.30 | 0.9317 | 187.4 | 999999 | |
| 5.63 | 7.27 | 6.77 | 8.74 | 22.52 | 161.14 | 59.84 | 298.77 | 0.9129 | 490.8 | 220.9 | |
| 0.00 | 10.04 | 0.00 | 13.53 | 25.28 | 163.29 | 61.99 | 300.87 | 0.9316 | 150.0 | 134.3 | |
| 0.00 | 2.51 | 0.00 | 3.02 | 22.98 | 161.02 | 59.72 | 299.28 | 0.9132 | 411.0 | 330.9 | |
| 0.00 | 0.78 | 0.00 | 1.06 | 25.86 | 163.25 | 61.94 | 301.46 | 0.9326 | -119.0 | -123.2 | |
| 1.56 | -25.00 | 1.82 | -25.00 | 22.33 | 160.37 | 59.07 | 298.84 | 0.9076 | 592.3 | 999999 | |
| 0.00 | 1.04 | 0.00 | 1.38 | 25.61 | 162.88 | 61.58 | 301.33 | 0.9301 | -77.0 | -76.4 | |
| 5.19 | -25.00 | 6.02 | -25.00 | 22.59 | 159.98 | 58.68 | 299.24 | 0.9057 | 722.6 | 999999 | |
| 5.11 | 7.10 | 6.47 | 9.01 | 24.89 | 161.72 | 60.41 | 301.00 | 0.9220 | 269.3 | 101.9 | |
| 1.13 | -25.00 | 1.29 | -25.00 | 22.36 | 159.70 | 58.39 | 299.10 | 0.9033 | 880.0 | 999999 | |
| 0.00 | 1.39 | 0.00 | 1.86 | 26.34 | 162.71 | 61.41 | 302.14 | 0.9308 | 348.0 | 244.1 | |
| 1.99 | -25.00 | 2.27 | -25.00 | 22.44 | 159.51 | 58.20 | 299.26 | 0.9022 | 976.5 | 999999 | |
| 4.07 | 10.48 | 4.72 | 12.19 | 23.08 | 159.82 | 58.52 | 299.81 | 0.9060 | 611.5 | 489.2 | |
| 1.99 | 131.00 | 2.35 | 157.92 | 23.90 | 159.98 | 58.67 | 300.60 | 0.9091 | 634.7 | 266.7 | |
| 0.00 | 0.78 | 0.00 | 0.88 | 22.86 | 159.12 | 57.81 | 299.84 | 0.9009 | 489.0 | 488.6 | |
| 20.00 | -39.00 | 24.11 | -39.00 | 24.66 | 160.36 | 59.05 | 301.25 | 0.9134 | 693.4 | 999999 | |
| 0.00 | 6.41 | 0.00 | 8.42 | 26.88 | 161.95 | 60.65 | 302.94 | 0.9280 | 338.0 | 276.9 | |
| 0.00 | 5.80 | 0.00 | 6.52 | 23.16 | 158.77 | 57.47 | 300.28 | 0.8994 | 670.0 | 547.4 | |
| 0.00 | 1.90 | 0.00 | 2.43 | 26.85 | 161.12 | 59.81 | 303.20 | 0.9233 | 415.0 | 386.0 | |
| 0.00 | 1.82 | 0.00 | 2.26 | 26.53 | 160.44 | 59.14 | 303.12 | 0.9187 | 265.0 | 303.8 | |
| 1.13 | 46.58 | 1.44 | 58.95 | 27.39 | 160.92 | 59.62 | 303.81 | 0.9236 | -162.3 | 101.2 | |
| 0.95 | -46.00 | 1.22 | -46.00 | 27.45 | 160.84 | 59.54 | 303.90 | 0.9233 | 147.7 | 999999 | |
| 0.00 | 1.04 | 0.00 | 1.24 | 26.30 | 159.35 | 58.05 | 303.29 | 0.9117 | 90.0 | 107.4 | |
| 0.43 | -46.00 | 0.53 | -46.00 | 27.41 | 159.89 | 58.58 | 304.21 | 0.9178 | -523.0 | 999999 | |
| 1.47 | -46.00 | 1.83 | -46.00 | 27.55 | 159.88 | 58.57 | 304.36 | 0.9181 | -706.7 | 999999 | |
| 3.46 | 5.02 | 4.17 | 6.05 | 27.10 | 159.30 | 58.00 | 304.11 | 0.9136 | -304.9 | -190.6 | |
| 1.73 | -46.00 | 2.14 | -46.00 | 27.79 | 159.83 | 58.52 | 304.62 | 0.9185 | -611.2 | 999999 | |
| 0.00 | 2.68 | 0.00 | 2.92 | 24.34 | 157.18 | 55.88 | 302.11 | 0.8924 | 421.0 | 353.0 | |
| 0.00 | 1.21 | 0.00 | 1.35 | 26.20 | 157.19 | 55.88 | 304.02 | 0.8981 | -415.0 | -294.3 | |
| 0.00 | 1.30 | 0.00 | 1.28 | 22.39 | 154.53 | 53.22 | 301.15 | 0.8674 | 529.0 | 437.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
